Adam Audio A4V - Aktivni Studijski Monitor
QUALITY COMPACTED

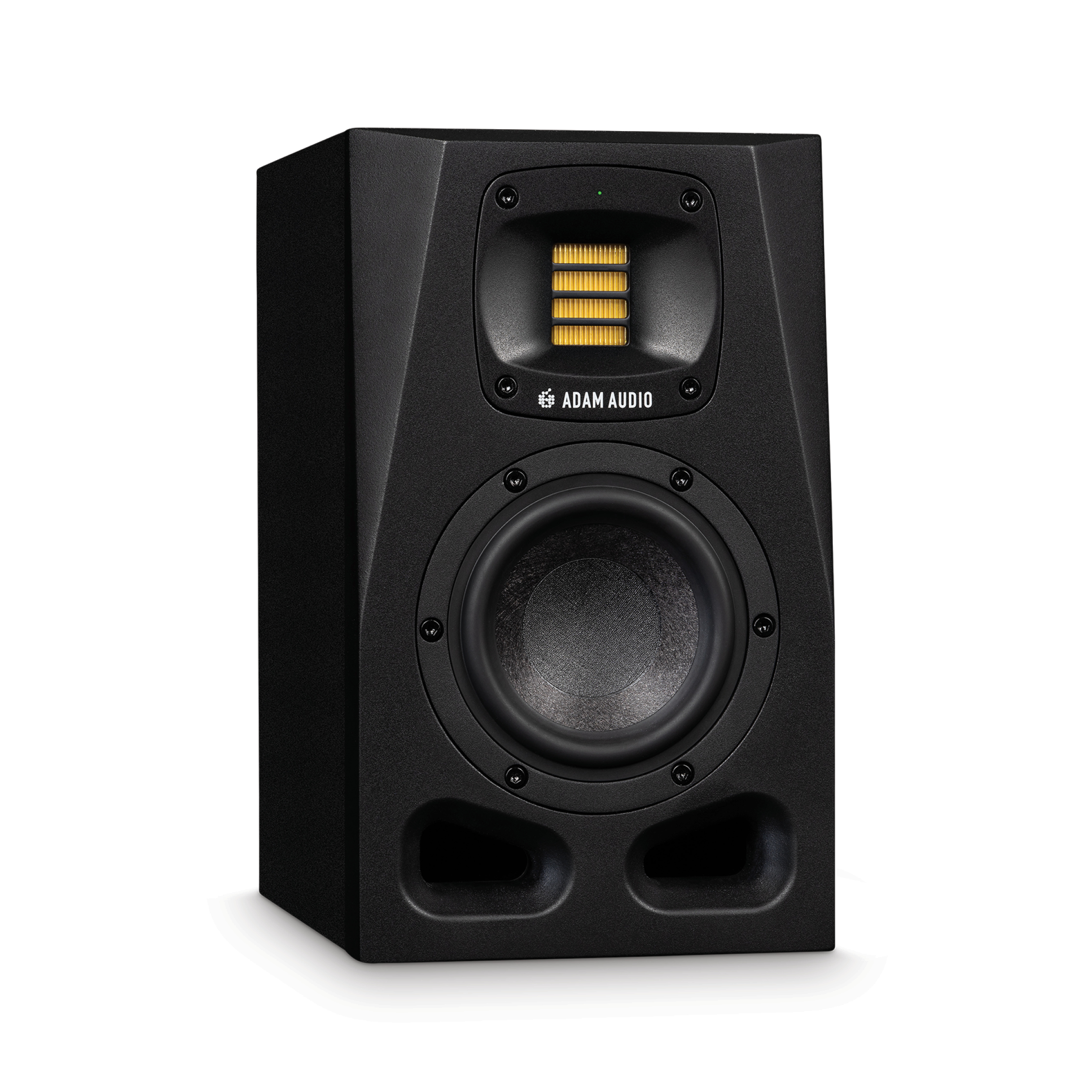

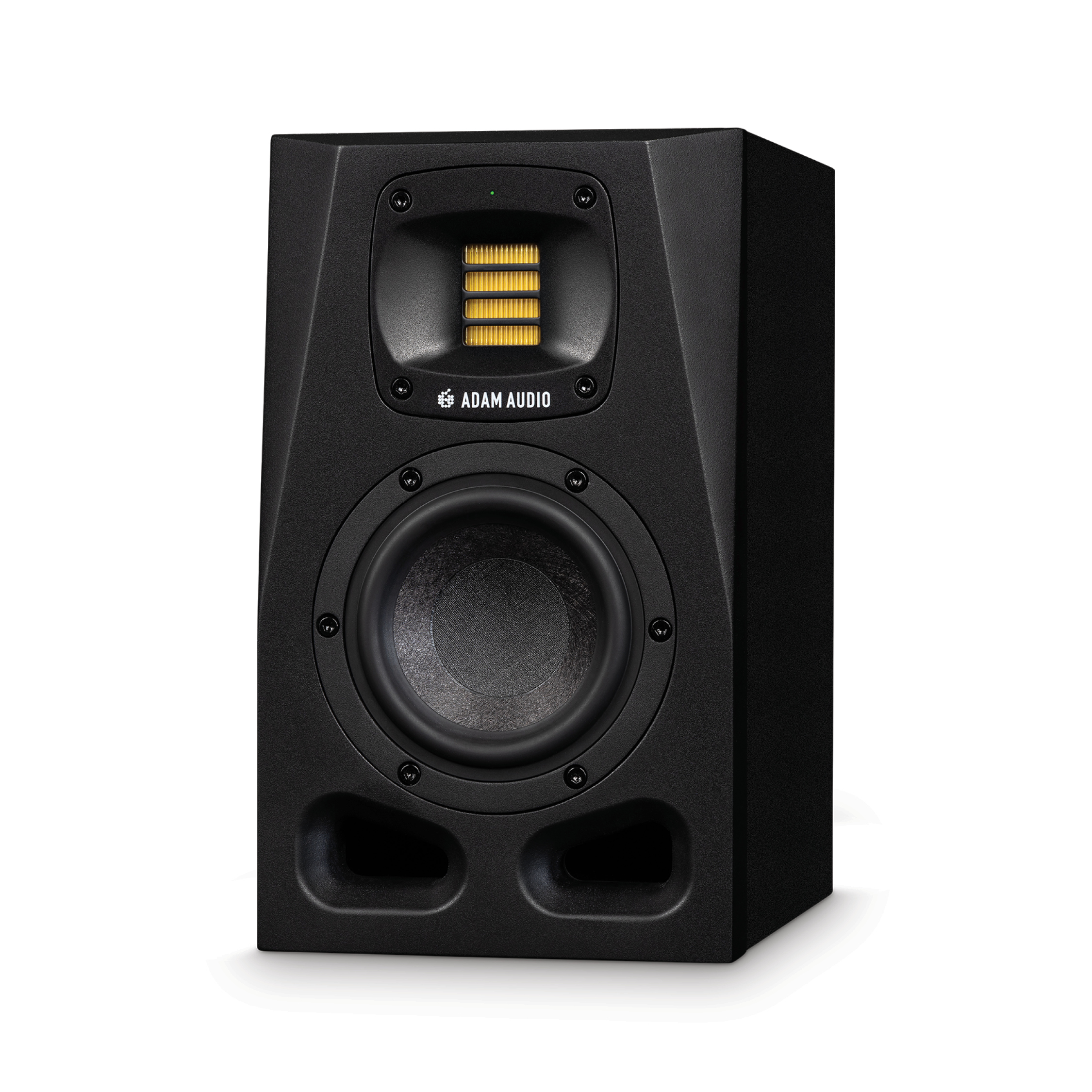

The A4V is a two-way speaker incorporating a 4-inch long-throw woofer made from the same Multi-Layer Mineral (MLM) fibers as other A Series speakers plus the classic X-ART tweeter. Onboard DSP-based tuning capabilities let you easily dial in the perfect sound for your space.
With a frequency range of 52 Hz to 45 kHz, the A4V can accommodate a broad spectrum of audio applications—from producing podcasts to mixing string quartets—and will fit well within immersive and 3D setups.
General Data
Display: Front panel multi-color LED
Cabinet Design: Dual front ported
Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
AC Input Voltage: 100 – 240 V, 50/60 Hz
Power Rating: 300 W max.
Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
Weight: 5.8 kg (12 lbs 13 oz)
Dimensions (Height x Width x Depth): 268 mm x 158 mm x 220 mm (10 1/2″ x 6 1/4″ x 8 5/8“)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: A4V loudspeaker, power cable, Quick Start Guide
Audio Input Connectors
Analog: XLR, RCA
Input Impedance: 9 kOhm / 3.3 kOhm
Max. Input Level: +19 dBu
Amplification
Woofer
Amplifier Type: PWM
Peak (10% THD, limiter deactivated): 110 W
RMS (1% THD, limiter deactivated): 90 W
Tweeter
Amplifier Type: Class A/B
Peak (10% THD, limiter deactivated): 20 W
RMS (1% THD, limiter deactivated): 15 W
Control Options [via Network]
Networking Connector: RJ45
Connection Type: Ethernet
Communication Protocol: OCA using standard IP data
Control Software: A Control (Windows and MacOS available)
Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
Advanced Room Adaptation: 6 x PEQ, Level, Delay
Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference
Acoustics
Frequency Response @ -3 dB: 58 Hz – 41 kHz
Frequency Response @ -6 dB: 52 Hz – 45 kHz
Crossover Frequencies: 3.0 kHz
Max SPL per speaker at 1 m (sine bursts): 100 dB SPL
Max SPL per speaker at 1 m (IEC-weighted noise): 109 dB SPL
Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 101 dB SPL
Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 104 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 88 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 91 dB SPL
Dolby DARDT max SPL in full space: 112 dB SPL
Dolby DARDT max SPL in full space (bass managed): 117 dB SPL
Drivers
Woofer
Basket Diameter: 4″
Voice Coil Diameter: 1″ (25 mm)
Cone Material: MLM
Tweeter
Type: X-ART
Diaphragm Area: 4 inch² (2420 mm²)
Equivalent Diaphragm Diameter: 2″ (56 mm)
Velocity Transform Ratio: 4 to 1
Diaphragm Weight: 0.17 g
Waveguide: HPS (rotatable)
Waveguide Dispersion: 120° horizontal, 70° vertical
Signal Processing
AD converter: 24-bit
Internal sample rate: 96 kHz
Delay range, resolution: 0 – 10 ms, 0.1 ms
Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters

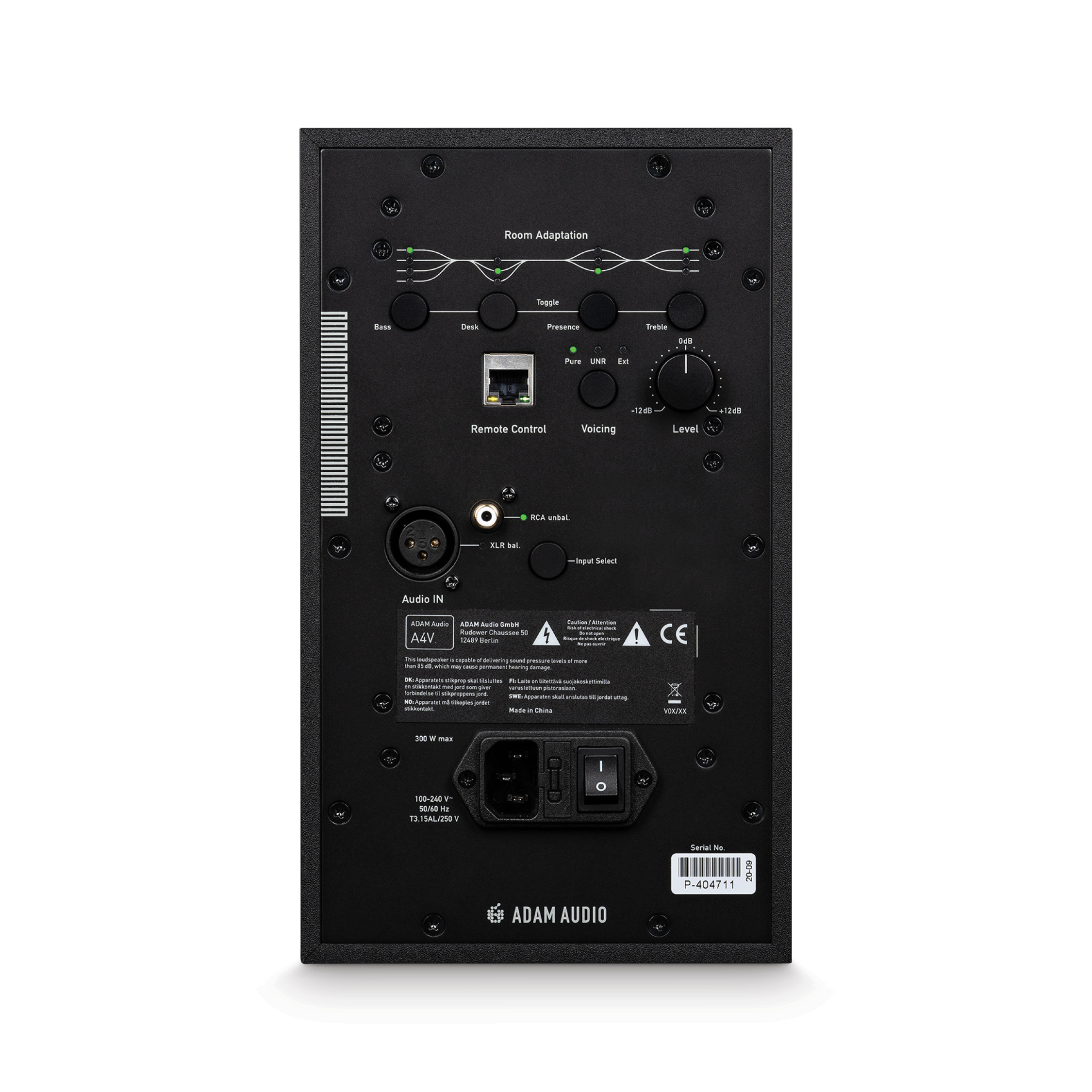

Control Options [via Backplate]
Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
Level: -12 dB to +12 dB
Input Selection: Balanced, unbalanced
Voicings: Pure, UNR
Room Adaption:
Bass: +2, 0, -2, -4 dB
Desk: 0, -2, -4 dB
Presence: +1, 0, -1 dB
Treble: +1.5, 0, -1.5 dB
