Avantone Pro Active Mix Tower Black
Garantujemo najnižu cenu!
The Avantone Mix Tower loudspeaker system, is an extension of the renowned AVANTONE MIXCUBE. Many production environments do not have the space for multiple speaker systems, so we developed the MixTower as a dual purpose monitor. The custom MixCube driver is mounted in an isolated box the exact dimensions of the MixCube. Run in MixCube mode, the driver responds full range, just like the MixCube. Run in three way mode, the driver is crossed over at 120Hz and 8000Hz to give the system a more natural studio monitor sound.
ENGINEERING OBJECTIVES
The Avantone Mix Tower Studio Reference Monitors are designed to be dynamic, high SPL, high resolution, full-range active reference monitors. We included precise, no-compromise drivers in a compact format that complements modern production environments. Providing two distinct modes of operation, the MixTower allows full range monitoring and MixCube mode.
PERFORMANCE OBJECTIVE
Studios primarily use 2-way and 3-way large monitors designed to represent a wide range reference viewpoint at higher listening levels. However, in the newly developing age of High Definition Audio, there is still a need to hear what your mix will sound like when played back over small "bass-challenged" systems such as televisions, clock radios, computers, car stereos, iPod docking stations, etc.
It is important to make mixing judgments based partially on listening to reference monitors that will not impart tonal anomalies caused by crossovers or inferior full range drivers. Particular attention is always paid to the critical mid-range vocal/guitar/keyboard areas. This is where having a full-range monitor without a crossover is truly revealing.

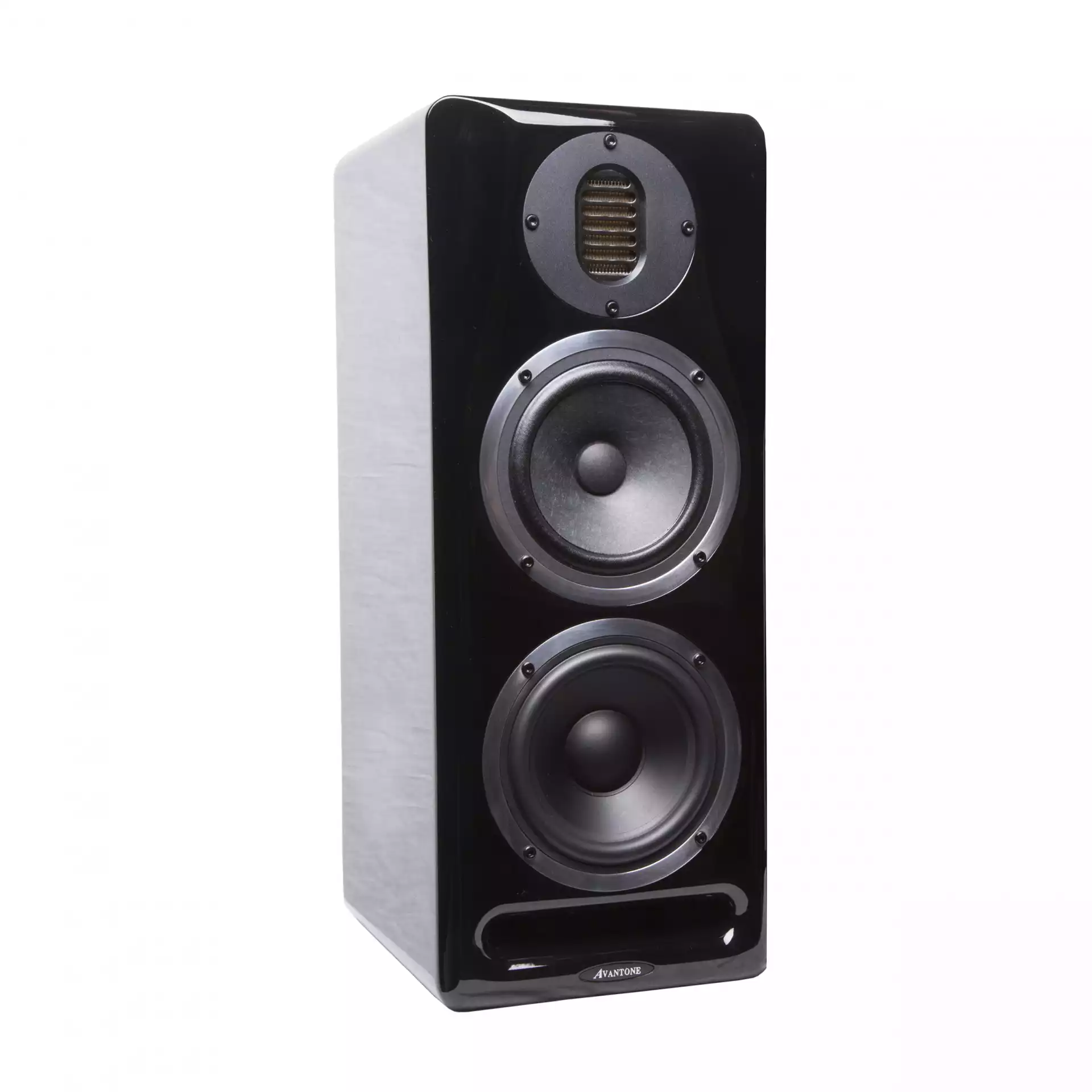

The Avantone Mix Tower allows the best of both worlds. Switching seamlessly between the original MixCube system and a full range system all in one stylish studio monitor. The MixCube is isolated in its own enclosure, identical to our existing design, and complemented by a 5.25" woofer and high quality air motion transformer activated by the included footswitch.
Specifications
- System Type: Active (Self-Powered) full-range stereo pair
- System Frequency Response: 45Hz-38,000Hz (Accessible musical range)
- Max SPL: 106dB @ 1 meter (pink noise); 108dB at 1 meter @1%THD (1kHz)
- Amplifier: Class HD
- High and Mid Frequency: each 100WRMS, THD+N=0.5%
- Low Frequency: 200WRMS, THD+N=0.5%
- Amp Frequency Response: 22Hz-40KHz +1dB/- 3dB (50Hz-25KHz +/-0.25dB)
- Noise: S/N -113 dB "A" Weighted; THD+N=<0.2%@100W into 4 ohms.
- High Frequency: Proprietary design, 3640mm2 air motion transformer
- Mid Frequency: Proprietary Design 4 ohm 5.25" Cast Aluminum Frame / Paper Cone/Shielded, 25mm voice coil.
- Low Frequency: custom designed 5.25" drivers with cast aluminum frame, 34mm voice coil
- Cabinet: Bass reflex design / 18mm MDF / with polyester acoustical stuffing
- Inputs: XLR & TRS +4dB Balanced and -10dB unbalanced
- Sensitivity: 0dBu (.775VRMS) input at maximum volume (+6dB) = 104dB SPL
- Cabinet Dimensions: 190Wx475Hx255D (7.5"x18.75"x10")
- Cabinet Weight: 10.6kg (23.3lb)
- Warranty: 5 Year Limited Warranty to original purchaser
- Accessories:

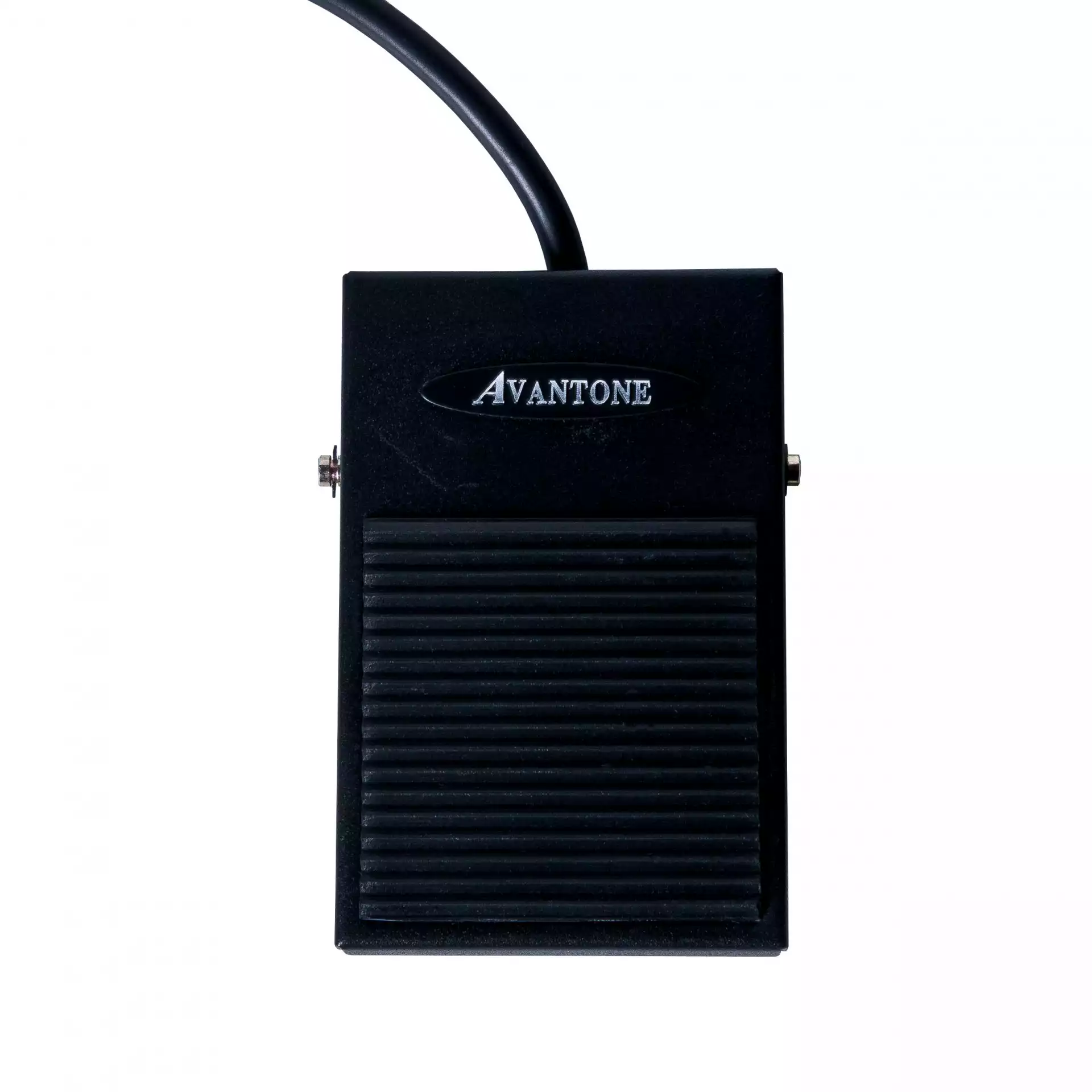

- Footswitch
- 1/4 inch bridge cable
- External power supply
Features
- 3-Way studio monitor with switchable full range mid frequency driver
- Custom designed AMT
- MixCube full range mid frequency driver
- Custom 6.5 inch subwoofer
- Extremely clear midrange reveals important details of your mix.
- Versatile design requires no adjustment when used in appropriate environments.
- Compact format complements modern production environments.
- Standard Items Supplied:
- Avantone Pro Mix Tower Active 3-Way Studio Monitor
- Bridge Cable
- Foot Switch
- External Power Supply
- Limited 5-Year Warranty
