The aluminum cone subwoofers, woofers and midranges radiate as perfect pistons to at least 2.5 octaves beyond their respective bandwidths. Barefoot has teamed up with the brilliant Bruno Putzeys of Hypex to develop the powerful and completely transparent amplifier stage of the MM12. Melding the system together is a groundbreaking DSP crossover. With beautifully designed high end converts and cutting edge proprietary filtering techniques the MiniMain12 produces such a seamless and coherent wavefront that, if you dare, you can actually listen to this speaker from less than 3 feet away with no sonic compromise. And yes, the MiniMain12 works perfectly out to far field distances as well, producing SPLs equivalent to big mains.

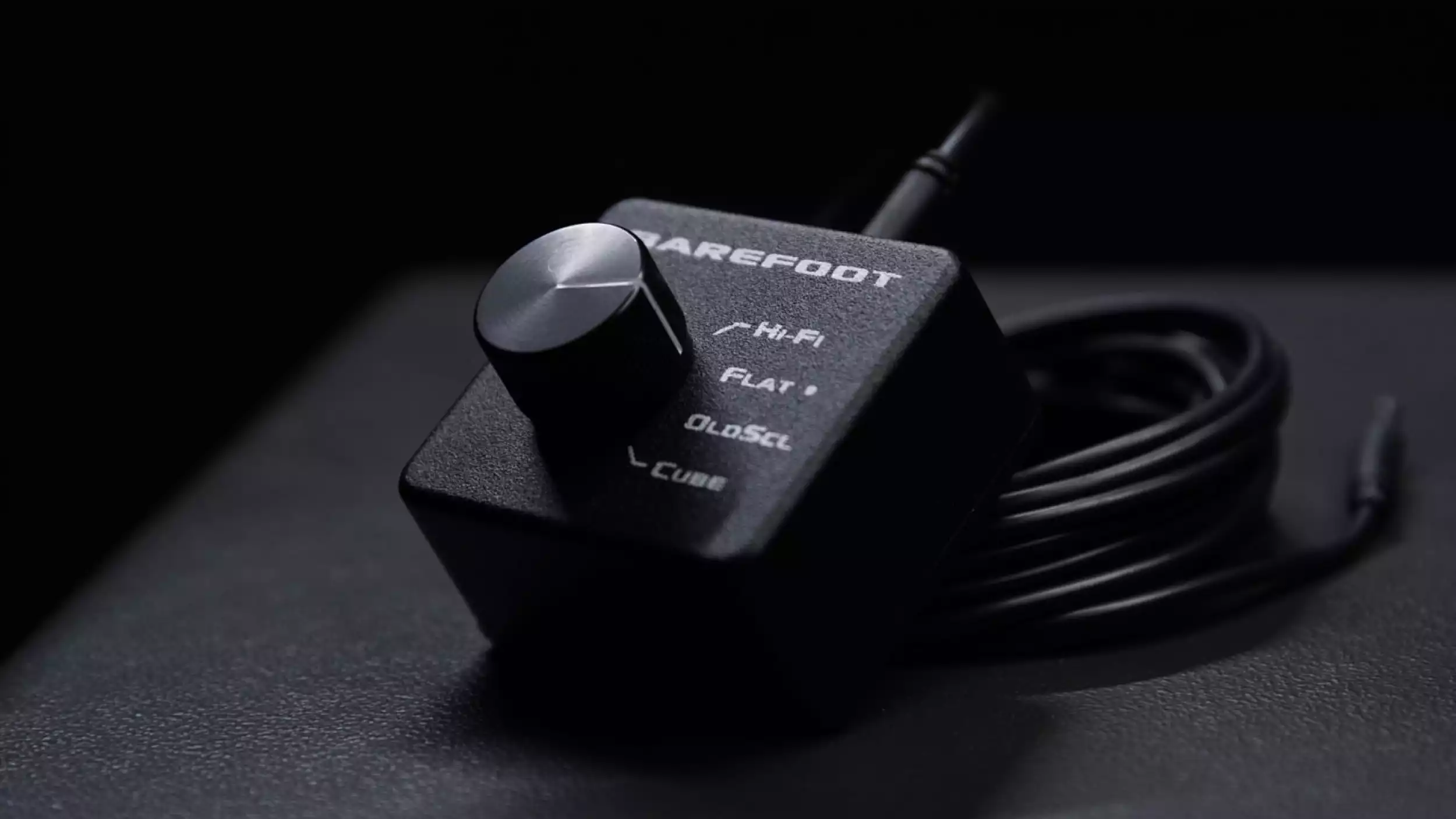

If all this weren’t enough, the MiniMain12 brings yet another revolutionary feature into the mix – MEME™(Multi Emphasis Monitor Emulation™) technology. While no other monitor in the world can match the MM12’s linearity and transparency, the MM12 actually has the capability to emulate other speakers! Despite the advantages of high resolution monitors, Barefoot realizes that many engineers still use their NS10M’s † and mix cubes as secondary references. These speakers have long traditions and people find them familiar and useful for focusing in on certain aspects of their mix. However, crowding one’s console with those extra boxes degrades the sound field of the primary reference monitors. Not to mention, they are no longer manufactured, they need amplifiers, cable runs, and they consume more studio space. So why not make the MiniMain12 sound and translate like those speakers as well? With the turn of a knob one can switch from the MiniMain12’s brutally revealing “Flat” response to the warmer and sweeter “Hi-Fi” setting, generically emulating the sound of some high end consumer audio gear. More specifically the “Old School” setting closely emulates the sound of the NS10M nearfield, while the “Cube” setting emulates the mid-centric sound of classic mix cubes The idea is not to perfectly replicate every subtle quirk of these venerable old speakers. That would be impossible. But the MiniMain12 can capture the essence of how they behave and translate, modeling their frequency, phase and transient responses, dynamic compression and even some of their distortion components. If you know how to work on these speaker you will feel very comfortable working on the MM12’s emulation settings.

So there you have it: The Barefoot Sound MiniMain12, a monitor like no other.

† NS10M is a trademark of Yamaha Corp. and has no affiliation with Barefoot Sound.

Description: 4-way active monitor with MEME™ Technology

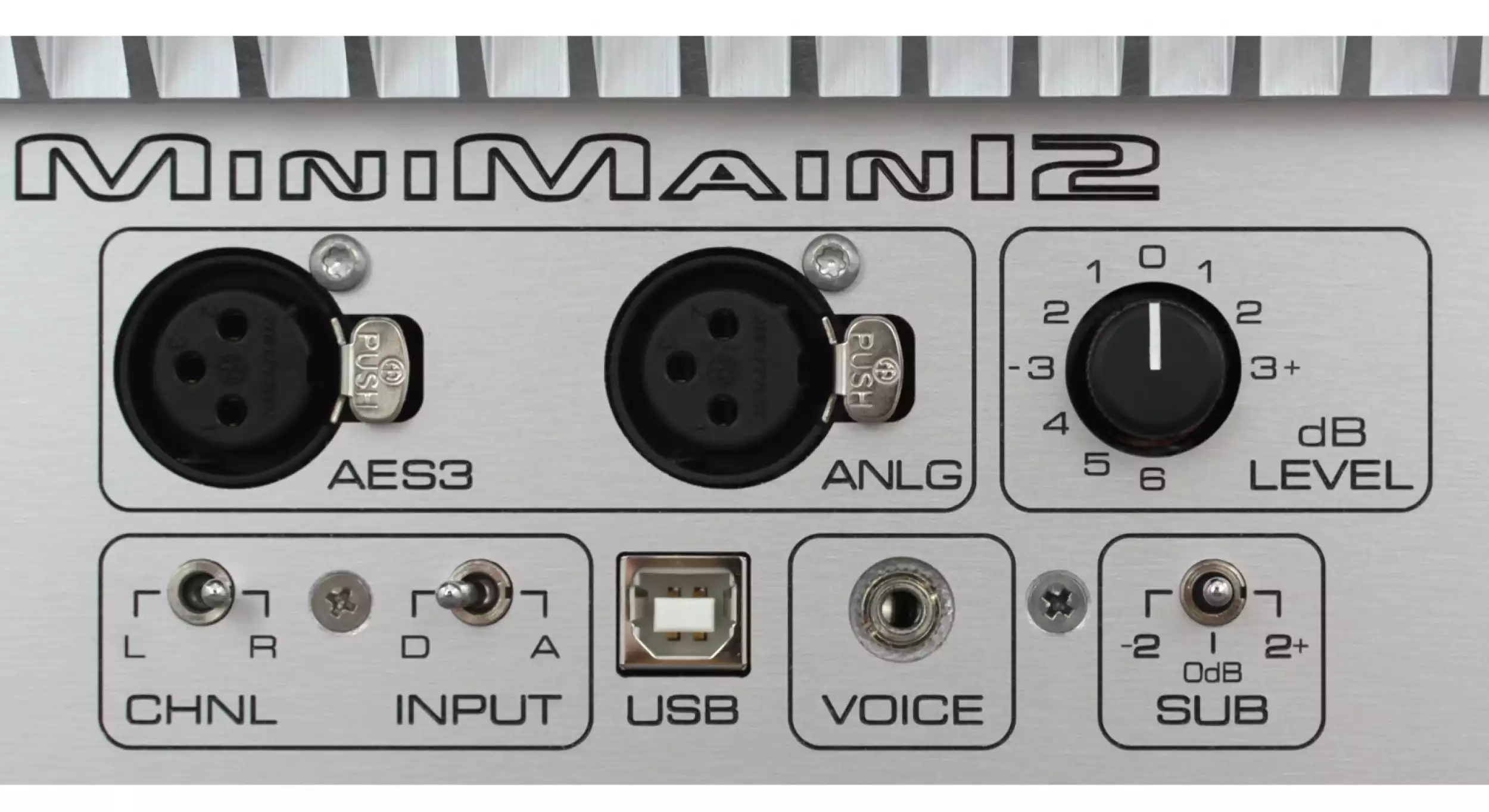

Controls: Analog/AES3 input select, AES3 L/R channels select, Input level stepped attenuator, Subwoofer level, Emulation voice select
Input Impedance: 50k Ohm
Frequency Response: 20Hz – 50kHz (±3dB),
28Hz – 40kHz (±1dB)
Bass Response: -3 dB @ 20Hz, Q = 0.707
Slope = 12 dB/octave
Cabinet: 90 liters total internal volume, Sealed sub enclosure, Sealed woofer enclosures, Sealed woofer enclosure, Machined aluminum baffle plate, Aluminum subwoofer frames function as lateral cabinet bracing, Long fiber wool acoustic damping throughout.
Crossover Frequencies: 80 / 800 / 4000 Hz
Tweeter: 1″ ring radiator, Advanced geometry motor, Rear waveguide chamber
Amplifier: 250W Hypex

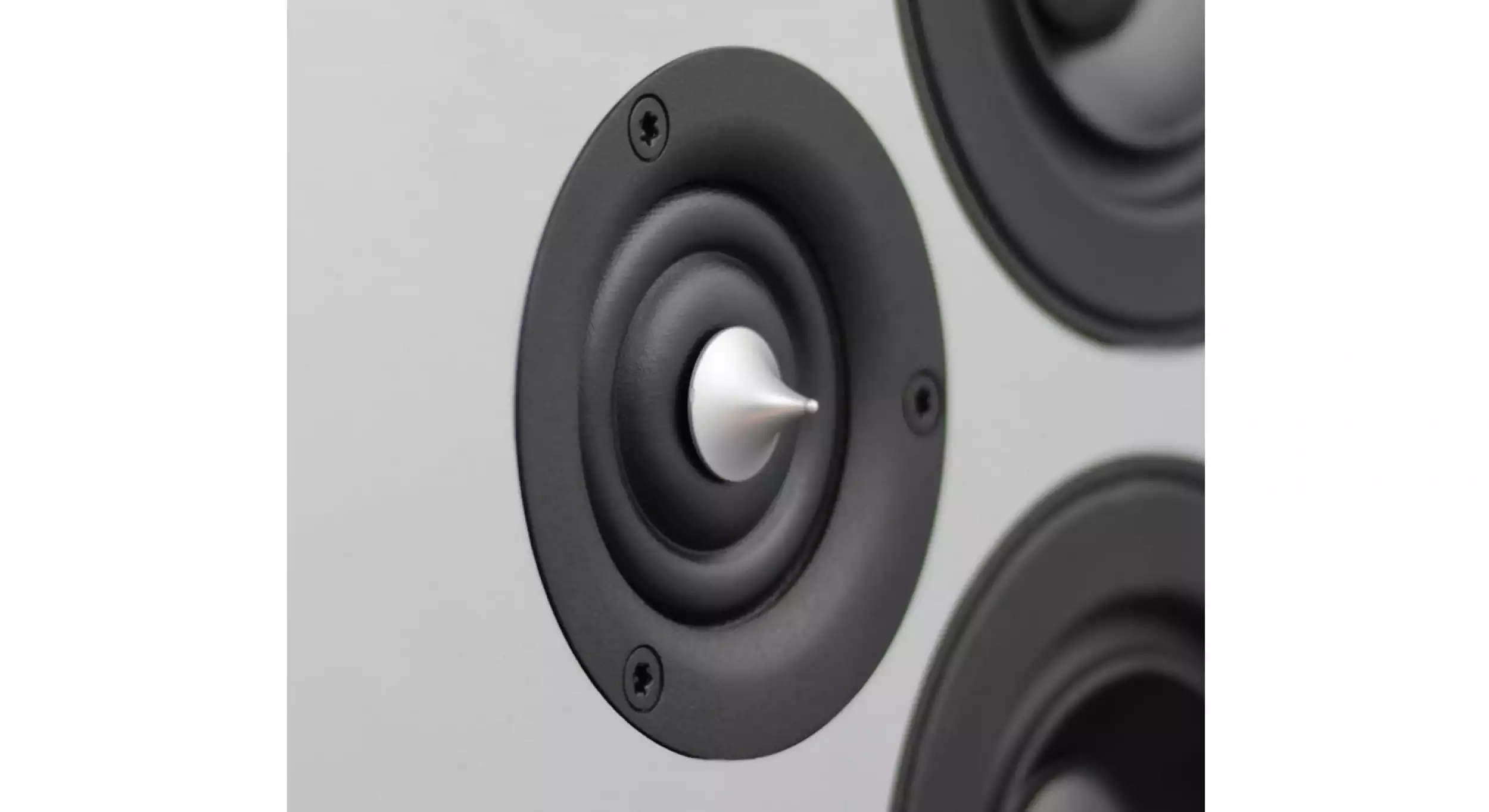

Midranges: 2 x 2.5″ aluminum cones, Advanced geometry motor, +/- 2 mm linear excursion
Amplifier: 250W Hypex
Woofers: 2 x 7″ aluminum cones, Advanced geometry motor, +/- 13 mm linear excursion
Amplifier: 250W Hypex
Subwoofers: 2 x 12″ aluminum cones, Advanced geometry motor, +/- 25 mm linear excursion
Amplifier: 1200W Hypex
AC Power Input: Nominal 115 VAC or 230 VAC selectable
Power Consumption: Idle: 50W, Maximum: 1500W
Weight: Speaker: 120 lbs each (54 kg) – no handles
Shipping: 135 lbs each (61 kg) – no handles
Dimensions HxWxD: 26.0 x 14.4 x 21.9 inches (660 x 366 x 556 mm)
