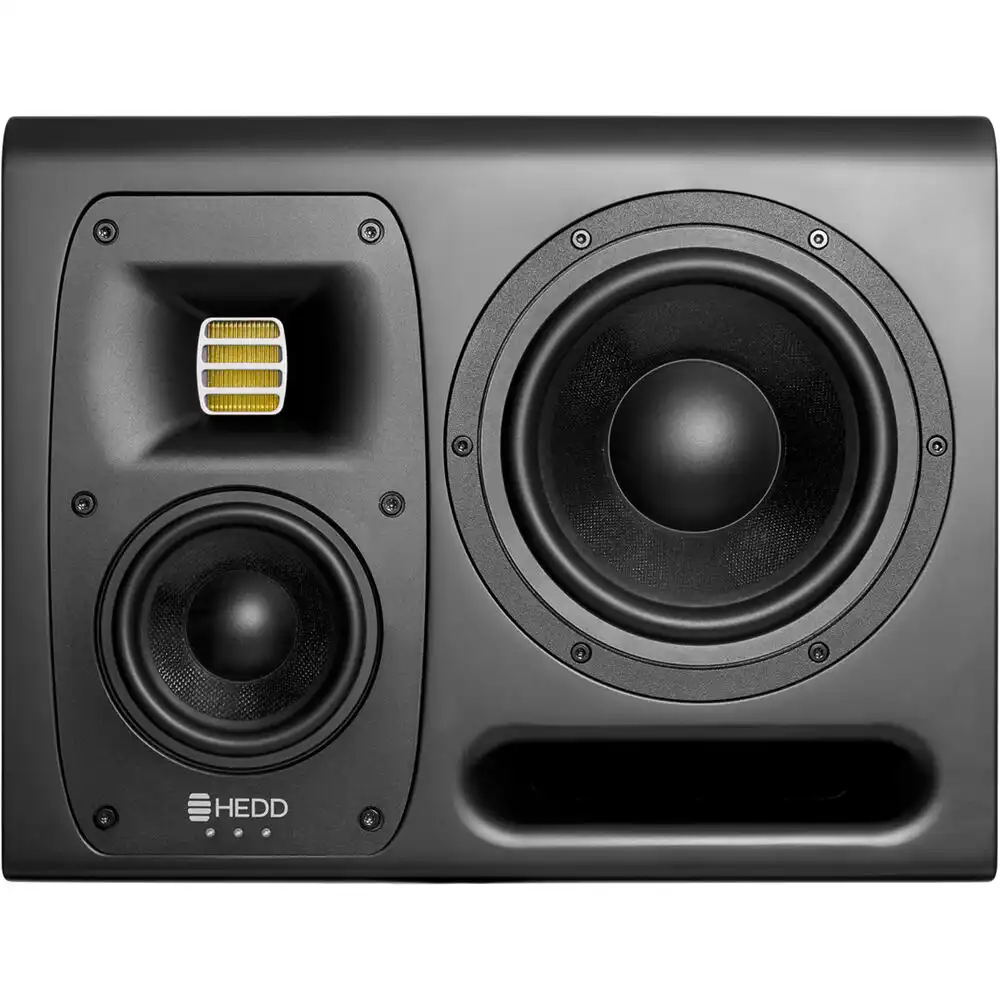

The Type 20 MK2 adds several enhancements including the onboard Lineariser, a phase linearization tool that audibly improves spatial reproduction, as well as a port plug that allows the monitor to go from a bass reflex design to a sealed infinite baffle. The rear panel features a Closed or Ported selection knob, a Low Frequency Extension control, and a Desktop Filter control to dial in your best sound. The 3-way design combines a 7" honeycomb composite woofer, a 4" midrange honeycomb driver, and a HEDD Air Motion Transformer (HEDD AMT) tweeter to provide an accurate frequency response of 32 Hz to 40 kHz with a maximum SPL of 120 dB (with two speakers at 1m.)

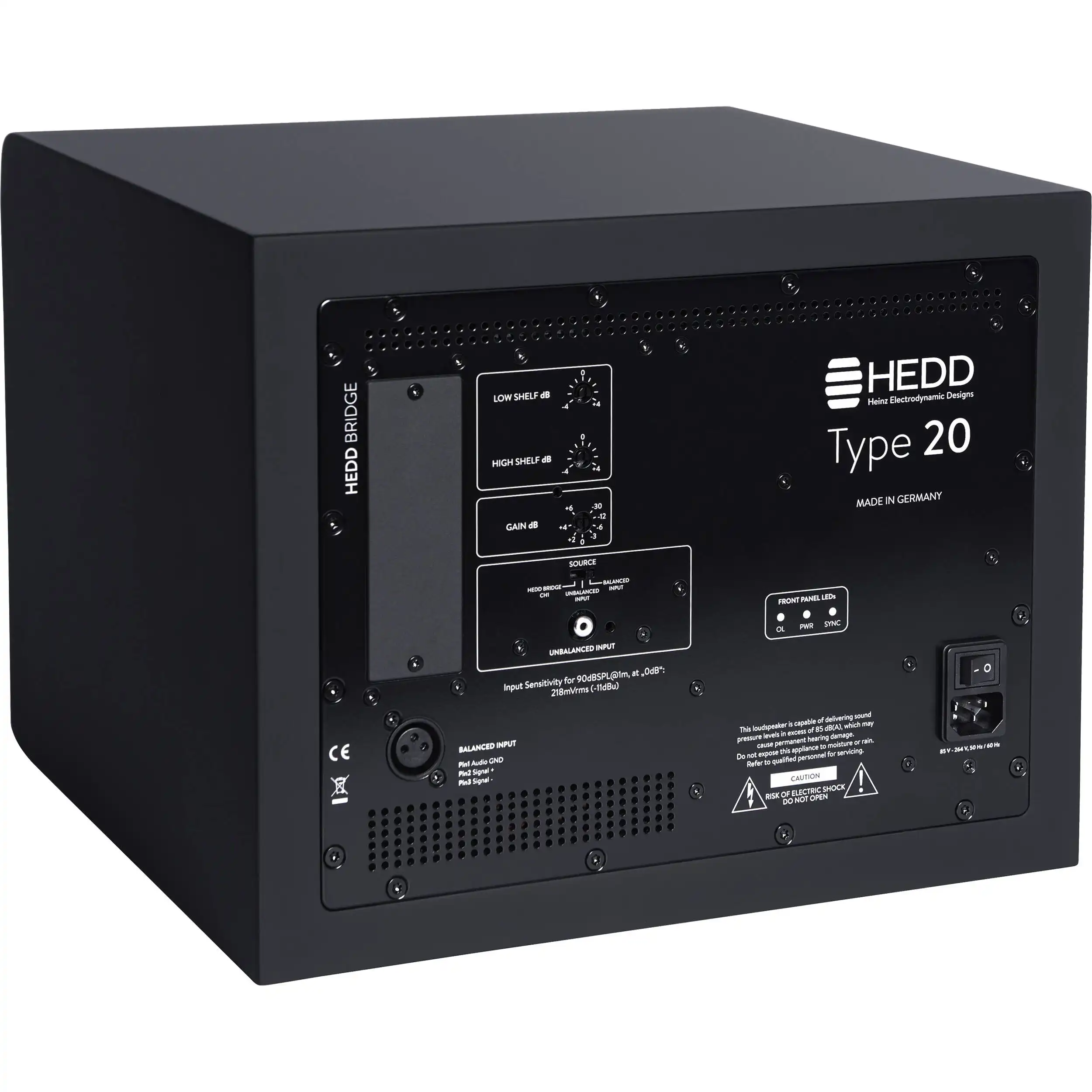

The sturdy unibody casing features updated lacquer for higher durability and better looks. The enclosure ensures that the cabinet remains stable and provides effortless audio even at full power. The ICEpower amplifier offers 300W per driver (900W total) and is universally powered for compatibility anywhere in the world. The rear panel also features a balanced XLR input and a digital AES input and throughput, as well as a gain trimmer and high-/low-shelf potentiometers.

Benefits
Onboard Lineariser and New Looks
Implemented in the MK2 and subwoofer models is the well-known Lineariser, a phase linearization tool that leads to perfect impulse response and audibly improved spatial reproduction
The MK2 version has new and improved lacquer for higher durability and better looks
CoP Technology
For the first time, you can choose between the energy and bass capacities of a modern bass-port design and the painstaking precision and control of a closed-cabinet approach
Removable plugs for the bass reflex tubes together with complimentarily designed filter setups allow optimum results in either mode
Linear Sub-Satellite System
HEDD Audio introduces a completely phase linear Sat-Sub system. These are the first Satellite Sub systems that are completely right in time, created by combining a phase linearized subwoofer (separately sold) with a correspondingly time delayed (group delayed) satellite output
Additionally, the listener can compensate eventual distances between subwoofers and satellites to stay with linear phase reproduction for the complete system

Main Features
Woofer: 7" honeycomb diaphragm
Midrange: 4" honeycomb diaphragm
Tweeter: HEDD AMT
Input 1: Balanced XLR Analog / Impedance: 22 kilohms
Input 2: Digital XLR AES
Output: Digital XLR AES Through
Shelve Filters High/Low: ± 4 dB (0.5 dB steps)
LF Range (-3 dB): Normal/Extended/Satellite (32, 26, 80 Hz)
Desk Filter: Small/Medium/Large (180 Hz -1, -2, -4 dB)
Frequency Response: 32 Hz to 40 kHz (-3 dB)
Maximum Sound Pressure Level: 120 dB SPL

HEDD TYPE 20 MK2 Specs
Studio Monitor
Monitor Type Active 3-Way
Enclosure Bass-Reflex, Sealed
Power Rating 300 W per Channel
Drivers HF Driver: 1 x 2" / 5.08 cm Air Motion Transformer
MF Driver: 1 x 4" / 10.2 cm Honeycomb Composite Cone with 1.25" / 3.17 cm Voice Coil
LF Driver: 1 x 7" / 17.8 cm Honeycomb Composite Cone with 2" / 5.08 cm Voice Coil
Amplification 1 x HF Amplifier: Class-D Rated at 300 W
1 x MF Amplifier: Class-D Rated at 300 W
1 x LF Amplifier: Class-D Rated at 300 W
Performance
Frequency Response 32 Hz to 40 kHz ± 3 dB
Maximum Sound Pressure Level (SPL) 120 dB
Phase Adjustment None
Signal Processing
EQ 1 x HF Shelf: -4 to +4 dB
1 x LF Shelf: -4 to +4 dB
Filters None
Parametric EQ None
Crossover
Crossover Frequency Low-Pass: 250 Hz
High-Pass: 3.2 kHz
Crossover Type Active
Connectivity
Audio I/O 1 x XLR Balanced Female Analog Input (10 Kilohms)
1 x XLR AES/EBU Female Digital Input
1 x XLR AES/EBU Male Digital Output/Thru
Power
AC Input Power 110 to 240 VAC, 50/60 Hz
General
Dimensions (W x H x D) 14.1 x 11 x 13.3" / 35.8 x 28 x 33.8 cm
Weight 34.0 lb / 15.4 kg
Packaging Info
Package Weight 38.365 lb
Box Dimensions (LxWxH) 18.2 x 17.5 x 16.1"
