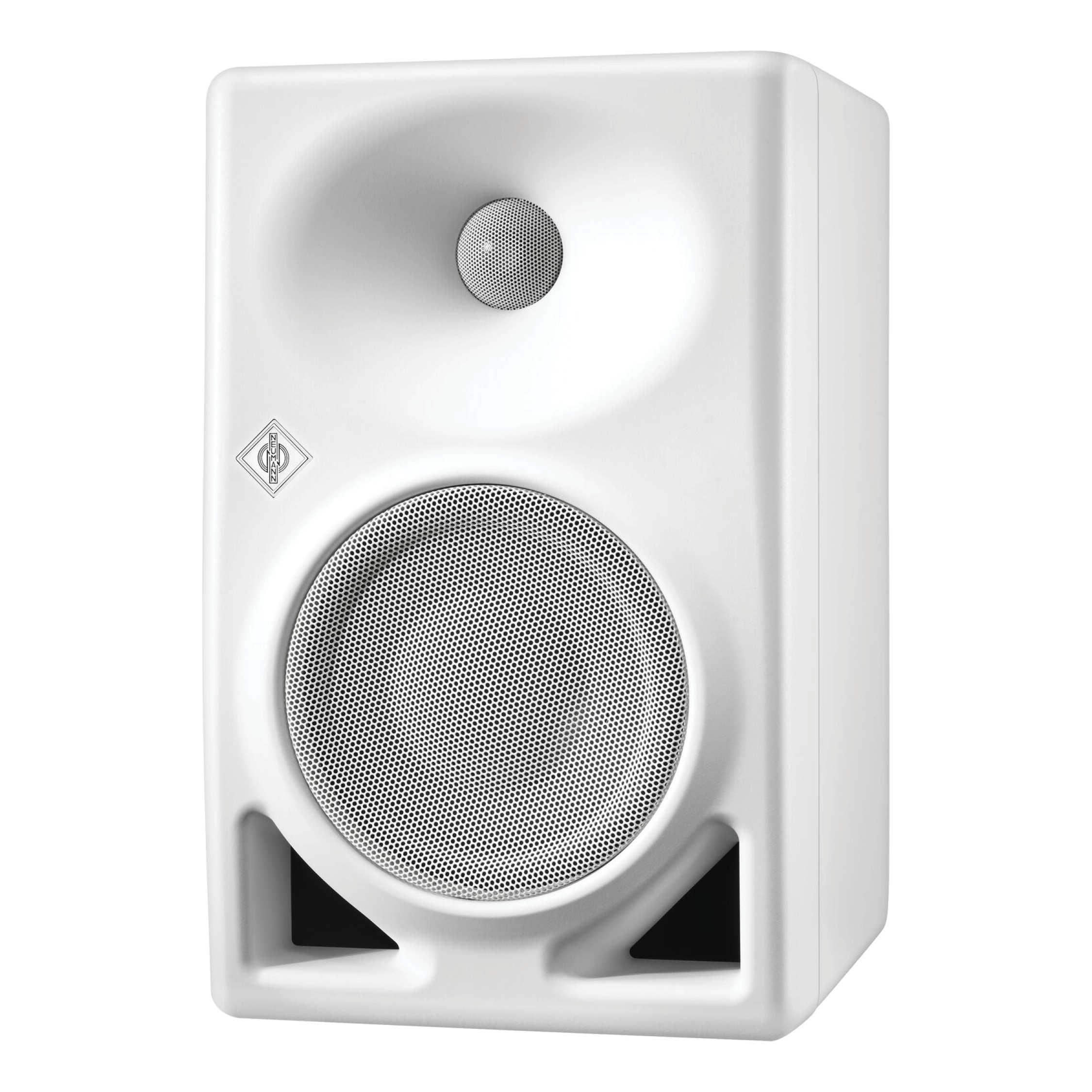

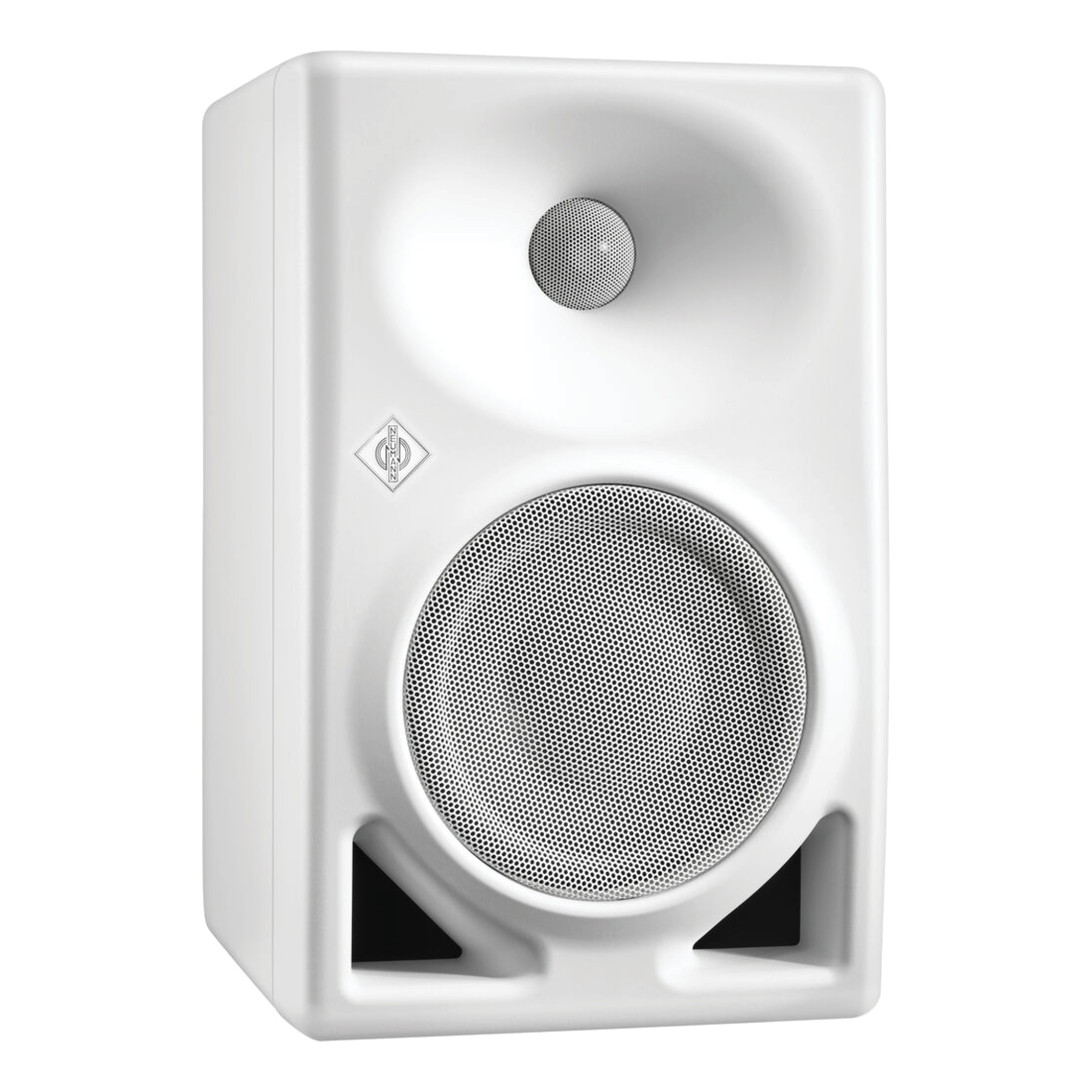

Neumann KH 120 II W AES67 - Aktivni studijski monitor
NEXT GENERATION MONITORING
The KH 120 II is based on the same concept as its acclaimed predecessor but completely re-engineered for improved performance in all parameters: deeper bass, higher SPL capability and even better resolution. Internal DSP power allows for phase linear crossovers and room adaptive alignment via Neumann’s revolutionary MA 1 Automatic Alignment.
Free field frequency response ±3 dB: 44 Hz ... 21 kHz
Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu): <20 dB(A) SPL
Max. SPL calc. in half space at 3% THD at 1 m (averaged between 100 Hz and 6 kHz): 116.8 dB SPL
Acoustical Principle: Bassreflex, Ports at the front

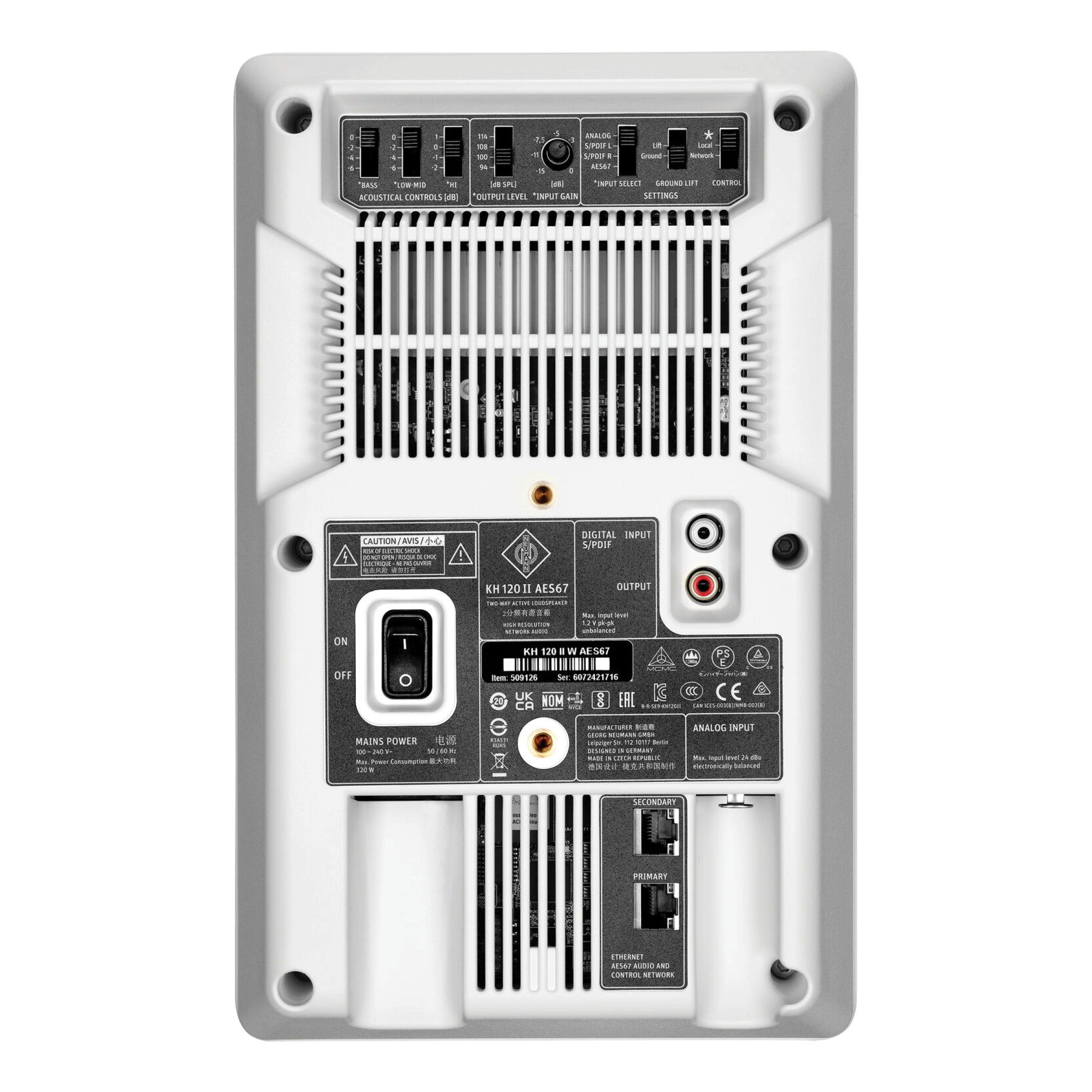

Analog input(s): XLR: analog electronically balanced
Analog input impedance: 24k Ohms
Digital input(s): KH 120 II / KH 120 II W: RCA (75 Ω): S/PDIF KH 120 II AES67 / KH 120 II W AES67: RCA (75 Ω): S/PDIF, Ethernet
Input gain control (sensitivity): 0 dB ... -15 dB
Output level control (output level in 1 m based on 0 dBu input level): 94; 100; 108; 114 dB SPL
Equalization: Bass: 0; -2; -4; -6 dB
Equalization: Low-Mid: 0; -2; -4; -6 dB
Equalization: Treble: +1; 0; -1; -2 dB
Control: Local; Network
Crossover frequency: 1.7 kHz
FIR phase correction: Linear phase (120 Hz ... 16 kHz; +/- 45°)
Protection circuitry: Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
AES67 Audio-over-IP Interface: KH 120 II AES67 / KH 120 II W AES67: Fully redundant AES67 ST2110 compliant audio network interface; 2 Fast Ethernet: 100Base-TX (IEEE 802.3) RJ-45 connectors; Physical redundant network (ST 2022-7)
AES67 Audio-over-IP input: word length: KH 120 II AES67 / KH 120 II W AES67: 24 bits
AES67 Audio-over-IP input sampling rate: KH 120 II AES67 / KH 120 II W AES67: 44.1 / 48 / 88.2 / 96 kHz
AES67 Audio-over-IP input connection mana: gement KH 120 II AES67 / KH 120 II W AES67: RAVENNA, NMOS IS-04 (Discovery & Registration) and NMOS IS-05 (Connection Management)
Output power woofer amplifier (THD+N with limiter deactivated: 10%): 145 W
Output power tweeter amplifier (THD+N with limiter deactivated: 10%): 100 W
Woofer KH 120 II / KH 120 II AES67: 130 mm (5.25") with protecting metal grille, black KH 120 II W; KH 120 II W AES67: 130 mm (5.25") with protecting metal grille, white
Tweeter KH 120 II / KH 120 II AES67: 25 mm (1") with protecting metal grille, black KH 120 II W; KH 120 II W AES67: 25 mm (1") with protecting metal grille, white
Product dimensions (height x width x depth): 287 x 182 x 227 mm (11.3 " x 7.16 " x 8.94")
Product weight: 5.4 kg (11 lbs 14 oz)
