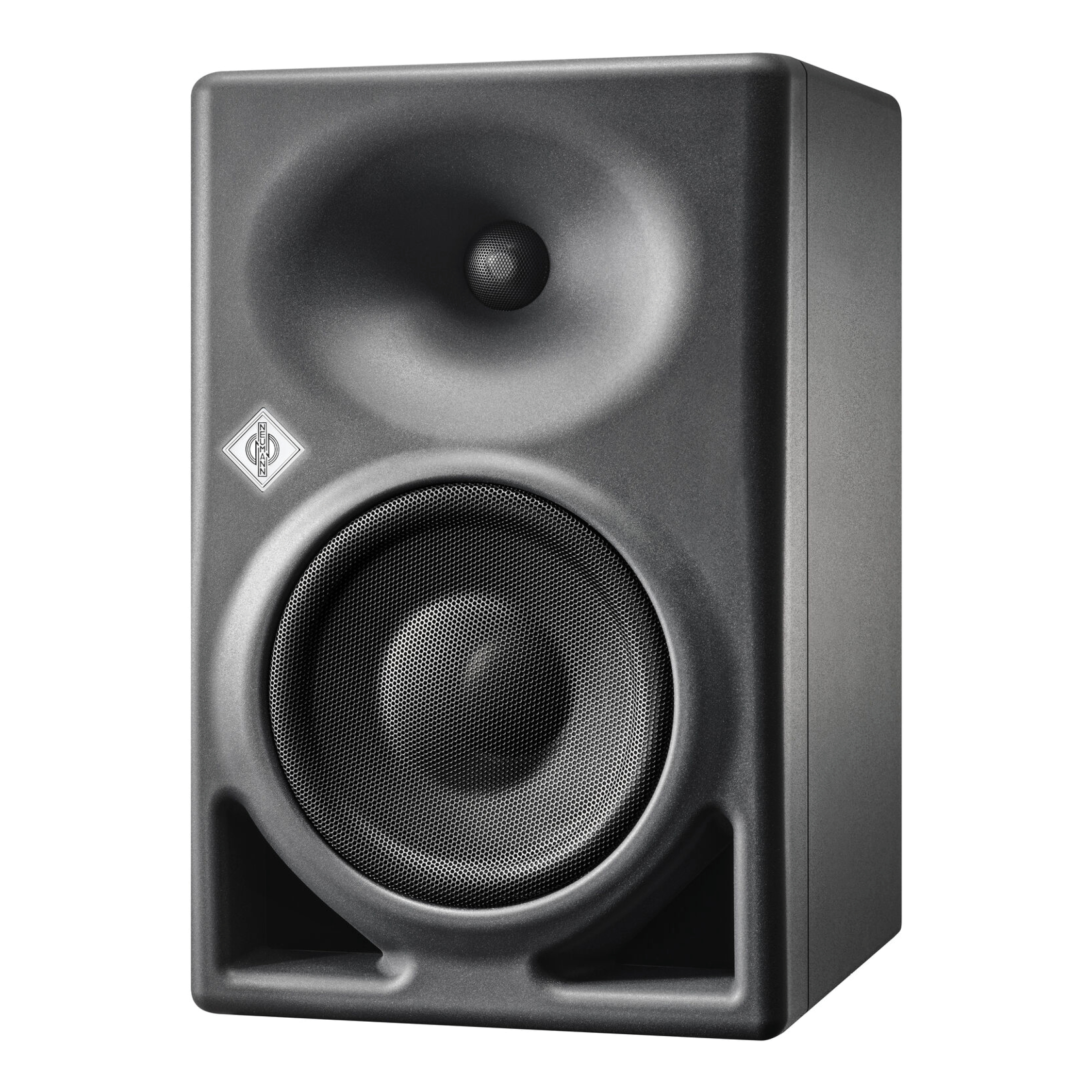

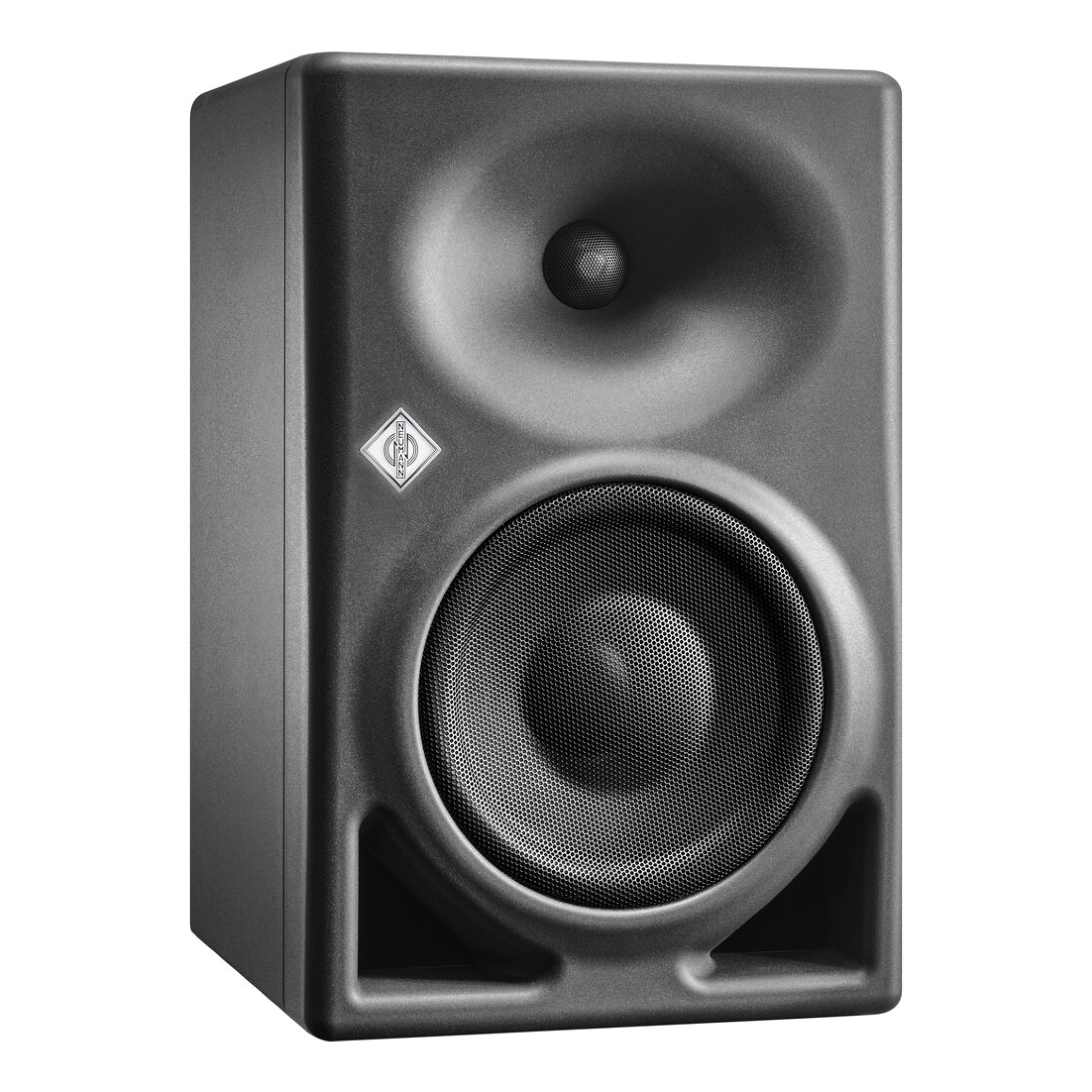

Neumann KH 150 - Aktivni studijski monitor

Šifra:
Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje
Opcija:

NEUMANN ACCURACY, SERIOUS BASS AND POWER TO SPARE
The KH 150 is a powerful bi-amplified studio monitor with reference-class performance. Its 6.5” woofer in a bass reflex cabinet provides stunning low end and high SPL capability with undiminished clarity. DSP controlled electronics ensure linear phase response and allow for room-adaptive calibration via Neumann’s revolutionary MA 1 Automatic Monitor Alignment.

Free field frequency response ±6 dB: 36 Hz ... 21 kHz
Free field frequency response ±3 dB: 39 Hz ... 20.4 kHz
Pass band free field frequency response: 42 Hz … 20 kHz, ±1.25 dB
Free field frequency linearity deviation between 100 Hz and 10 kHz: ±0.8 dB
Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu): <20 dB(A) SPL
Sine wave output with a THD < 0.5 % at 1 m in half space: 95 dB SPL (>75 Hz)
Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 118.7 dB SPL
Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 112.7 dB SPL
Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz): 107.5 dB SPL
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions: 108 dB(C) SPL
Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range): 100 dB(C) SPL
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer): 106 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range): 88 / 94 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer): 88 / 94 dB(C) SPL
Dolby D.A.R.D.T. Max SPL fullrange: 114 dB
Dolby D.A.R.D.T. Max SPL bass managed: 120 dB
Recommended Listening Distance: 1.0 … 2.5 m; (3'… 8')
Feasible Listening Distance: 0.75 … 6.0 m; (2'6"… 18')
Acoustic principle: Bassreflex, Ports at the front
Analog input(s): XLR: analog electronically balanced
Analog input impedance: 24 kOhms
Max. input level: +24 dBu for 94 dB SPL setting; +14 dBu for 100 dB SPL setting; +9 dBu for 108 dB SPL setting; -1 dBu for 114 dB SPL setting
Common mode rejection ratio (CMRR): >56 dB @ 15kHz
Volume control: via MA 1 software
Volume control range; resolution: 0 … -∞ dB; 0.1 dB
Analog dynamic range; THD+N: 118 dB, A-weighted, 90 dB
Signal routing modes: analog, S/PDIF L, S/PDIF R, S/PDIF mono
Digital input(s): RCA (75 Ω): S/PDIF
Digital output(s): RCA (75 Ω): S/PDIF
Max. Input: Level; pk-pk, unbalanced / balanced 1.2 V
Digital converter: resolution; design: 24 Bit
Digital converter: sampling rate: 32 kHz..200 kHz
Digital internal sampling rate: 48 kHz
Output sample rate: identical to input sample rate
Latency ADA / DA: Analog Input: 2.6 ms; SPDIF Input: 2.1 ms
Delay: User adjustable delay range: 0 … 120 ms
Delay: Resolution: time; distance: 20.8 µs
Delay: Max. frames Audio-video synchronisation (lip sync): 0 … 120 ms for TOF=0ms, depends on APP implementation
Delay: Time-of-flight maximum distance: 0 … 120 ms for lipsync=0ms, depends on APP implementation
Output level control (output level in 1 m based on 0 dBu input level): 94; 100; 108; 114 dB SPL
Input gain control (sensitivity): 0 dB ... -15 dB
Transport/storage conditions: -25° C to +60° C (-13° F to 140° F); <90% RH; non-condensing
Equalization: Treble: +1; 0; -1; -2 dB
Equalization: Low-Mid: 0; -2; -4; -6 dB
Equalization: Bass: 0; -2; -4; -6 dB
Input selector: Analog; S/PDIF L; S/PDIF R; Mono
Ground Lift: Yes
Control: Local; Network
Mains Switch: Yes
Mains Voltage Select: Universal Power Supply 100 V~ … 240 V~
Controller design: Digital; active
Crossover frequency: 1700 Hz
Crossover slope: 24 dB / octave
Equalization: via Neumann.Control software: No
FIR phase correction: Linear phase (105 Hz ... 16 kHz; +/- 45°)
Protection circuitry: Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
Infrasonic filter: frequency; slope: 38 Hz; 12 dB / octave
Remote control: MA 1 software via an RJ45 connector carrying standard IP data
Display: On; Normal Operation: Neumann logo “White”
Display: Identification: Neumann logo “Rosé”
Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute: Neumann logo “Red”
Logo Brightness: via MA 1 software
Output power woofer amplifier (THD+N with limiter deactivated: 10%): 145 W
Output power tweeter amplifier (THD+N with limiter deactivated: 10%): 100 W
Output power woofer amplifier (THD+N with limiter deactivated: 0.1%): 120 W
Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%): 80 W
Mains Power Supply: input voltage; frequency: 100-240 V; 50/60 Hz
Power consumption (230 V / 100 V): Standby: 0.3 W
Power consumption (230 V / 100 V): Idle: 15 W
Power consumption (230 V / 100 V): Full output: 320 W
In-rush current (Peak): 33 A
Standby automatic, 90 mins (default); user: defined in software
Cabinet material: Composite polycarbonate front and rear, wooden sleeve
Cabinet surface finish; color (front / back): Painted; metallic anthracite (RAL 7021) / Black (RAL 9005)
Operating conditions: +10° C to +40° C (+50° F to +104° F); <75% RH, non-condensing
Woofer: 165 mm; (6.5") with protecting black metal grille
Tweeter: 25 mm; (1") with protecting black metal grille
Mounting points: 2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm; (5/8”)
Product dimensions (height x width x depth): 345 x 225 x 273 mm; (13.58" x 8.86" x 10.75")
Internal net volume: 12.6 l
External net volume: 20.4 l
Packed dimensions (height x width x depth), mm (inches): 480 x 303 x 403 mm; (18.9" x 11.9" x 15.9")
Product weight: 8.0 kg; (17 lbs 10 oz)
Packed weight: 9.4 kg; (20 lbs 12 oz)
Packaging weight inc. Cables and manuals: 1.41 kg; (3 lbs)
Packed cube: 0.059 m³; (2.08 ft³)
