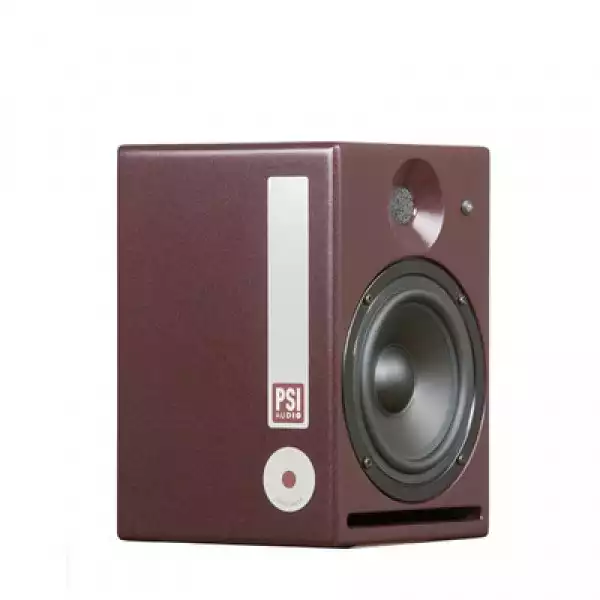

A 14-M STUDIO
Main Features
Power: 110 + 45W
Frequency Range: 56Hz – 23kHz
Peak max. SPL@1m: 113dB
Typical listening distance: 0.5 to 1m
100% Analog – No DSP
Flat frequency response
Perfect stereo image
Handmade tweeter
Class A/B Amplifiers
Individually calibrated
5+1 years warranty
Handmade in Switzerland

Your success story with the A14-M

Take control of your success story with the A14-M speakers. Start your journey confident in the knowledge that these powerful speakers will take you to new heights. The accuracy and natural sound of the A14-M has earned PSI Audio the respect of audio professionals worldwide.
Built on over 40 years of experience and constant innovation, the A14-M is the most accurate compact monitor available. With an impressive frequency range, you can further enhance your sound with a compatible subwoofer like the A125-M. Whether you need a compact setup or portable speakers, the A14-M will be your faithful companion.

A14
“It’s the aural equivalent of looking out of the window instead of at an HD TV screen!”
“I must admit to having become something of a fan of PSI Audio’s monitors. They are one of Switzerland’s hidden gems, and the new A14-M Studio retains the impressive qualities of its larger siblings, but in a very practical, compact package, giving away only a modest amount of low-end power and extension.”
Hugh Robjohns – Sound on Sound UK

Handmade tweeter
What do you do when you cannot find a driver appropriate for the sonic accuracy you want to achieve with your speaker? At PSI Audio, we decided to just build our own then.
The tweeter used in the A14-M is unique, our own development and built by hand in our manufacture in Switzerland. Superior to any market-bought solutions, our tweeter offers unparalleled clarity, subtlety and fidelity. It took a lot of time and effort to create this tweeter – certainly a lot more than buying one from an international supplier would have. But the result is absolutely worth it.
Extend the low frequencies and add power
Ranging down to 56 Hz, the A14-M already impresses with a lot of transparent bass reproduction for its size. By adding one of our subwoofers, you can turn a pair of A14-M into a proper full-range system with all the clarity and precision you desire.

Data (Broadcast & Studio) [Unit]
Potential peak power 110 + 45 W
Continuous max SPL@1 m 98 dB
Short term max. SPL@1m 103 dB
Peak max. SPL@1m 113 dB
Signal to noise ratio (S/N) 95 dBA
Bandwidth at -6dB 56-23'000 Hz
SPL tolerances ±2.5 dB
Phase tolerances ± 45 (350 Hz – 20 kHz) deg
Dispersion (H x V) 80 x 35 deg
System 2 ways
Crossover frequency 3600 Hz
Woofer ext. diam. 147 mm
Woofer ext. diam. 5.8 in
W. diaphragm diam. 104 mm
W. diaphragm diam. 4.1 in
Tweeter ext. dim .90 mm
Tweeter ext. dim. 3.5 in
T. diaphragm diam. 27 mm
T. diaphragm diam. 1.06 in
Dimensions W x H x D 163 x 243 x 170 mm
Dimensions W x H x D 6.4 x 9.6 x 6.7 in
Net Weight 4.9 Kg
Net Weight 10.8 lbs
Input connector 1 x XLR F / 3P
Warranty 5 (+1) years
Flat Response

Each speaker is individually calibrated in our anechoic chamber and is delivered with its frequency response sheet. A proof of quality.
A14-M Studio – the smallest model of our range
This small but powerful full-range speaker with all of PSI Audio know-how, technology and features built in to a small cabinet.
The A14-M will surprise you by what sound can come of such a small cabinet.
It is perfect for demanding users when place is an issue or in multichannel surround setups.
The A14-M BROADCAST version is equipped to be transported or mounted wherever needed.

A14-M Studio – Who is it for?
As our most compact speaker, the A14-M is perfect for environments with limited space while still offering a very comprehensive sonic image, especially when coupled with a subwoofer. The A14-M is also particularly suited to enhance larger stereo setups for surround applications – our very tight tolerances guarantee a coherent sound throughout the entire model range. This makes the A14-M a particularly popular choice for rear surround speakers. For sophisticated mounting options you may want to consider the A14-M Broadcast.

Recording / Producing
Mixing
Mastering
Broadcast
Post Production
Home listening
