Antelope Satori Analog Monitoring and Summing System
The Antelope Satori is an analog monitoring and summing solution that features relay-controlled stepped attenuation for recalling analog settings, versatile connectivity options, and mastering-grade features such as mid-side monitoring. The piece features eight stereo inputs and four stereo outputs, and is equally suited to both commercial and project studios.

Satori's 0.05 dB platinum relays are designed to provide accurate volume control and L/R balance, even at the lowest listening levels. Its four independent headphone outputs allow individual source selection and volume control, enabling separate feeds for musicians or vocalists. The headphone drivers on Satori employ the same audiophile-grade circuitry found in Antelope's line of premium home audio products, and are able to drive both low and high impedance loads.

Satori offers a plethora of functionality such as talkback and level trims, as well as mute, mono, dim and mid-side. Gain offset is available for any input and output, making A/B testing extremely easy and efficient. In addition to providing monitoring capabilities, Satori includes a fully analog 8-channel summing mixer, allowing engineers who work completely "in-the-box" to mix signals in the analog domain for a more natural blending of instruments.

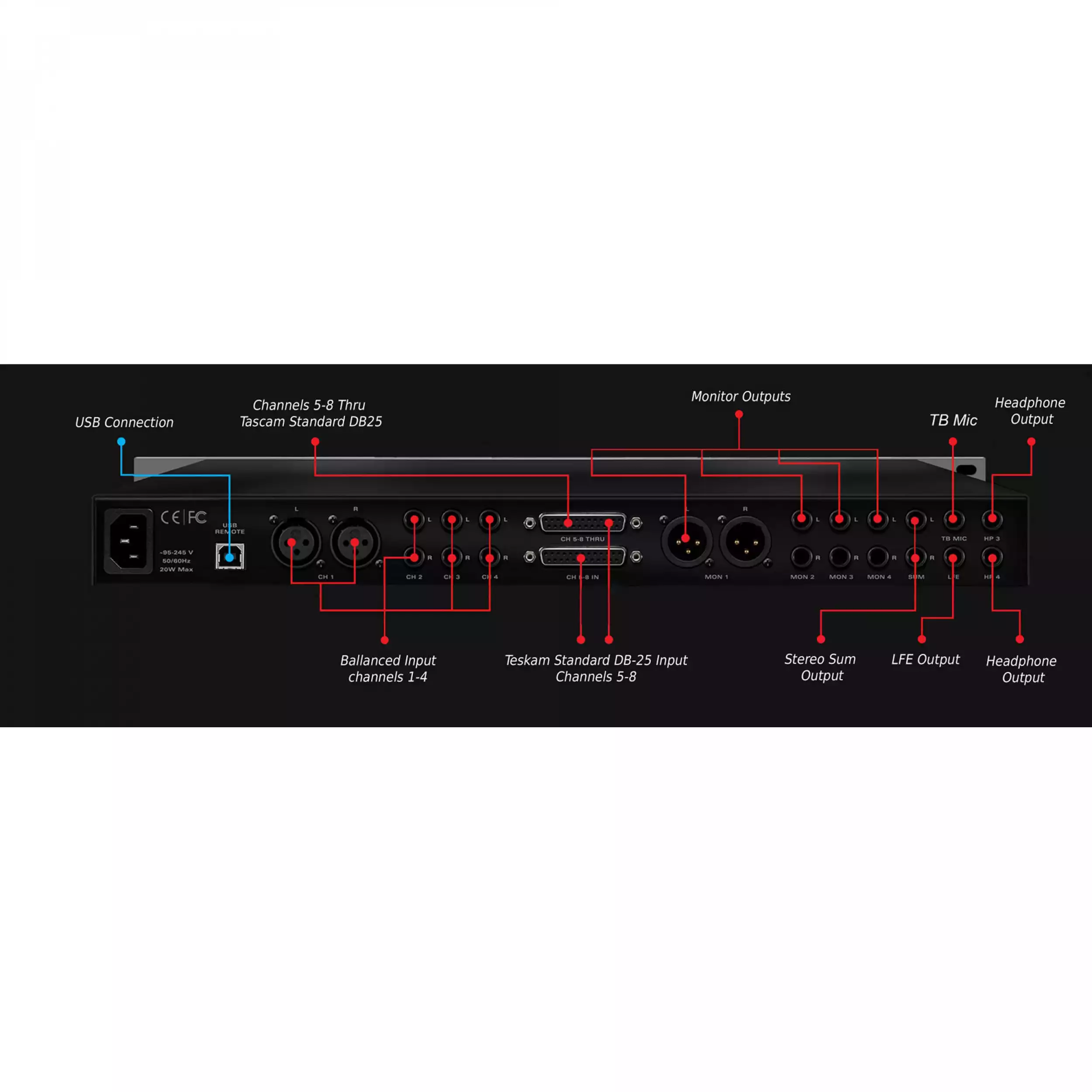

Flexible Input/Output Options
Eight stereo inputs, four stereo outputs, and a range of connectivity options including XLR, 1/4" TRS and D-Sub 25 in a 1U unit. In addition to four stereo speaker outputs, Satori features a dedicated subwoofer output

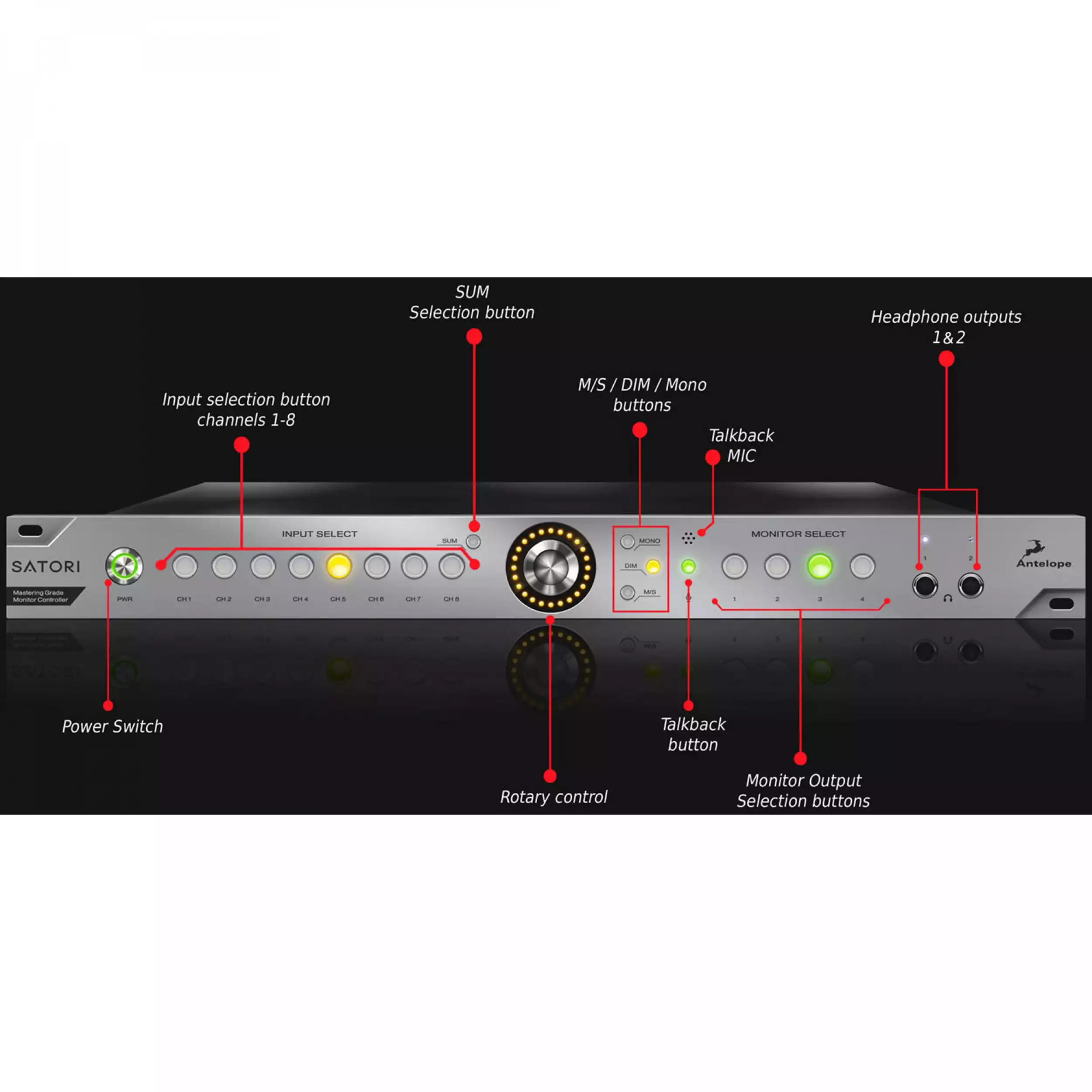

Front Panel
Satori's delicately machined aluminum volume knob and large LED front panel push buttons allow easy access to the most commonly used monitoring functions such as input and monitor selectors, gain adjustment and level trimming

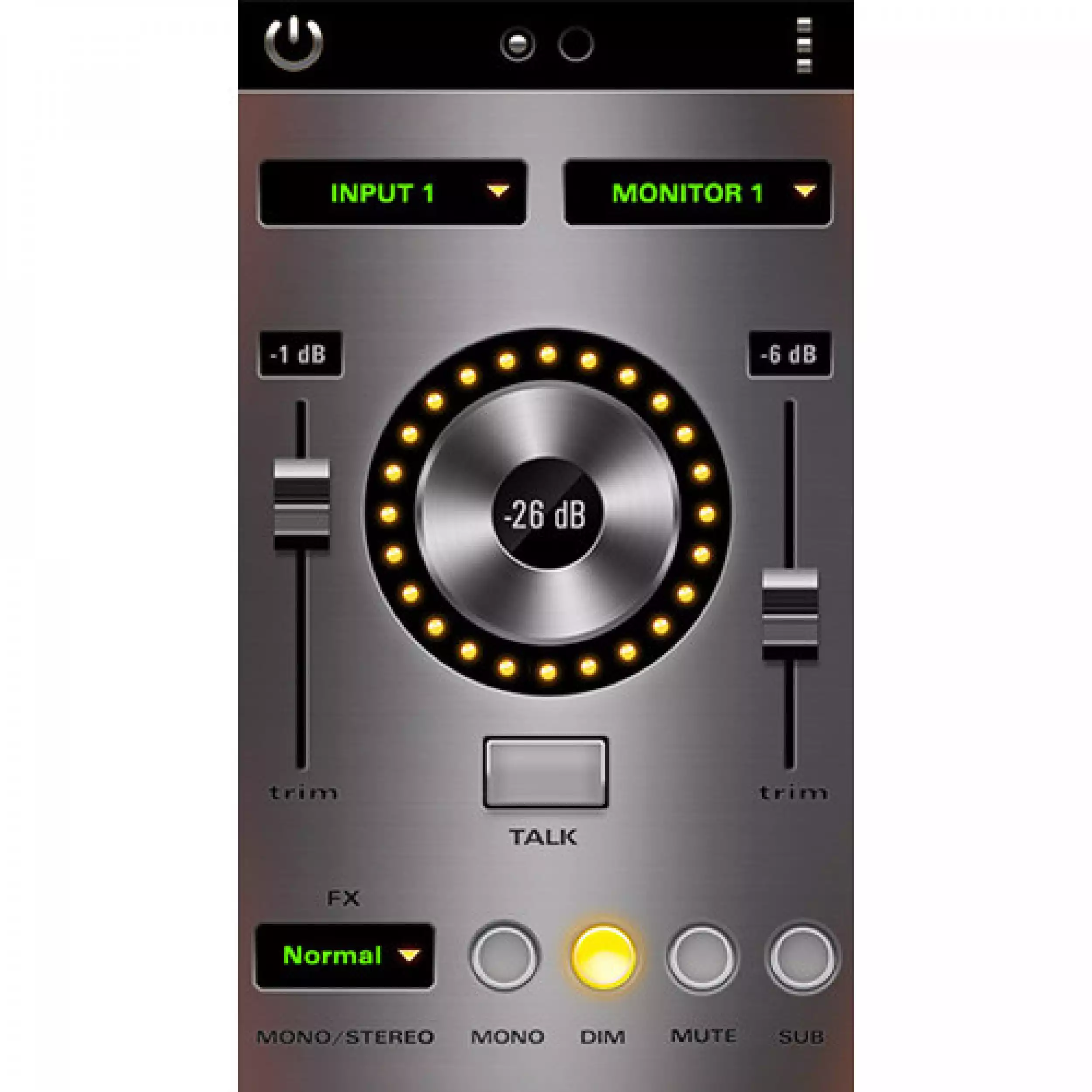

Remote Control
The unit ships a software application (Mac and PC) enabling flexible and accurate control. The software control panel allows fast and responsive source and speaker switching, accurate volume control, stereo effects selection, headphone controls and user-recallable presets. Analog summing is fully controllable via the software application

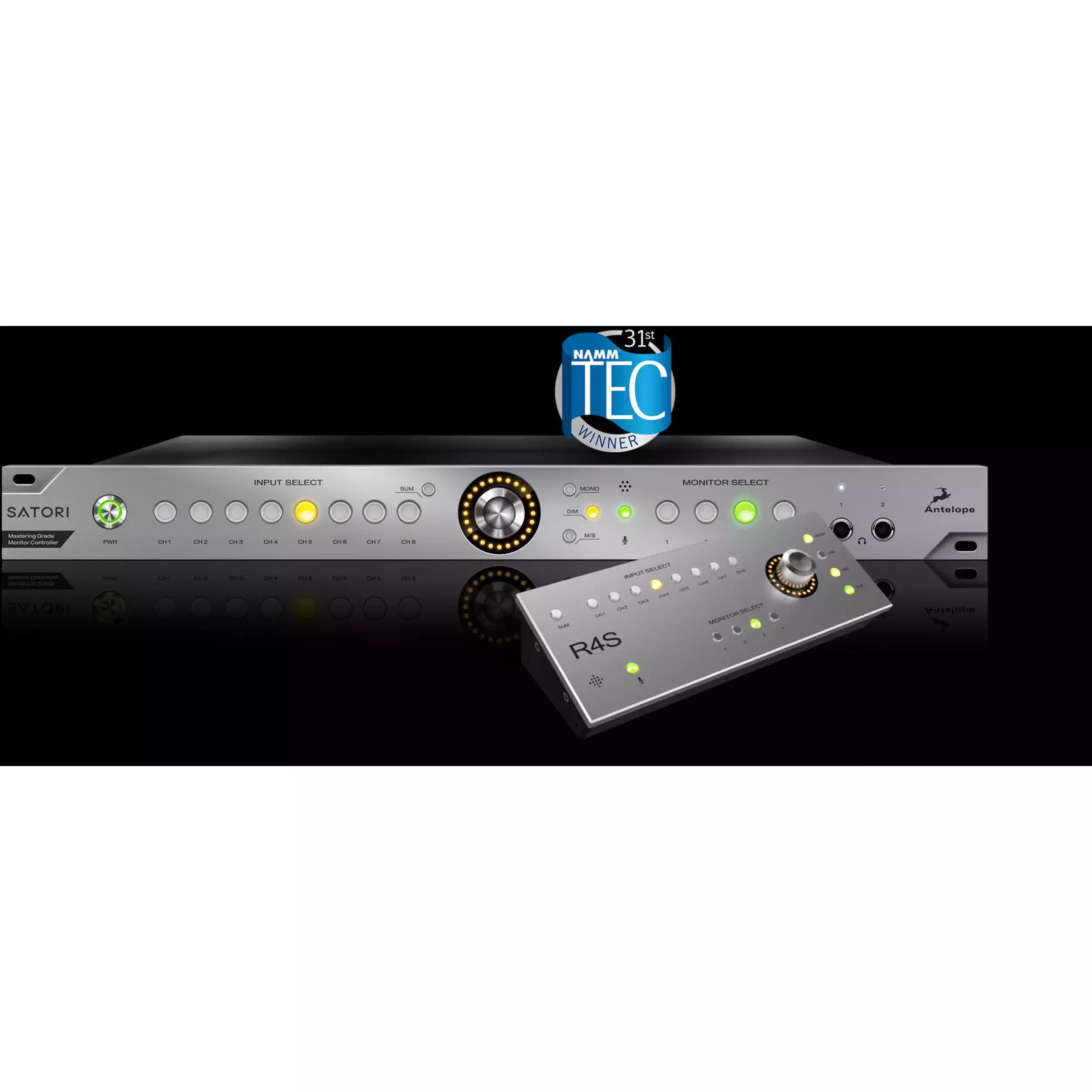

Antelope R4S Remote Control for Satori Analog Monitoring System

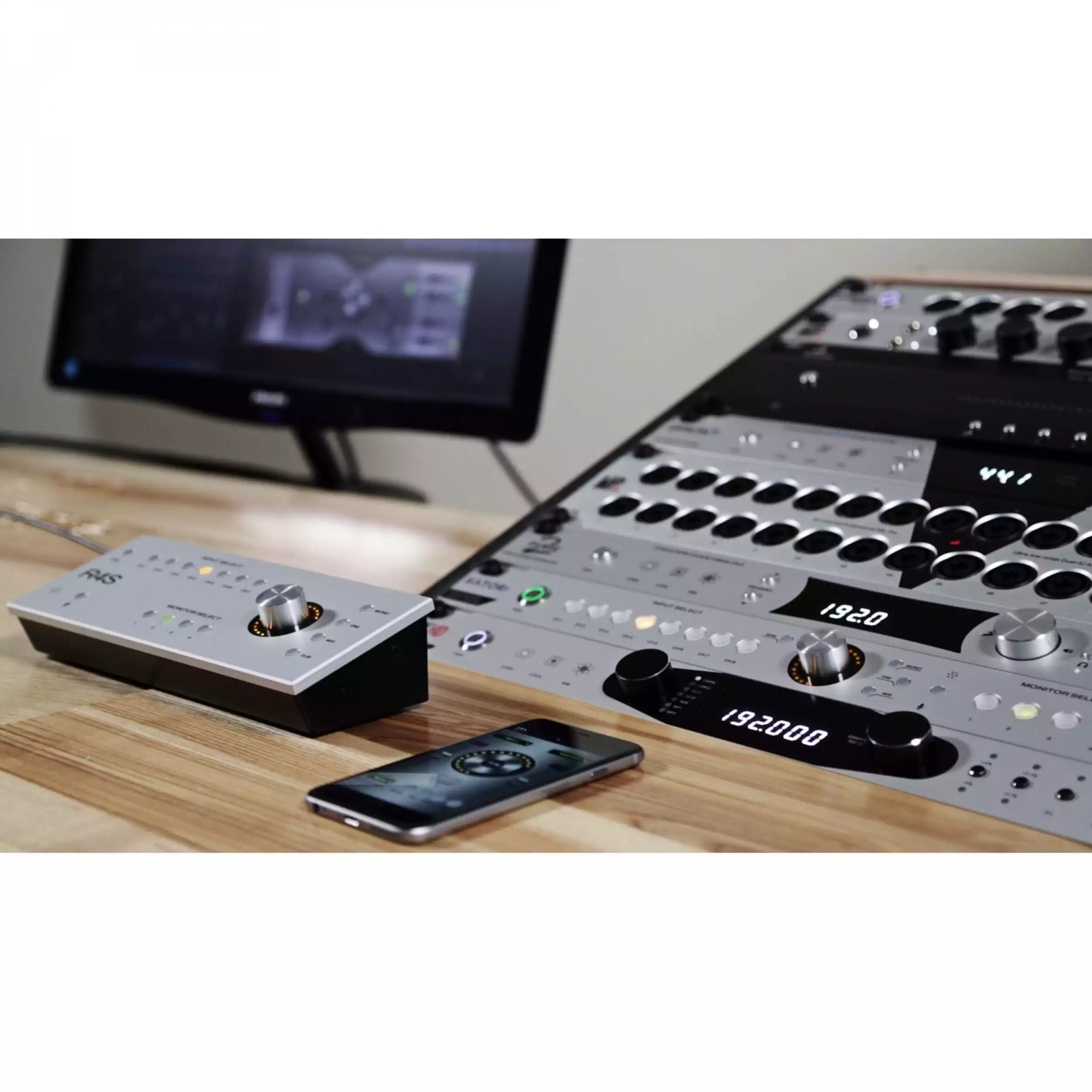

The R4S from Antelope is a dedicated, tabletop remote control designed to completely replicate the front-panel functionality of the Satori analog monitoring system. Centered around an ergonomic and intuitive design, it allows engineers to select their monitoring options, directly from their listening sweet spot.

Connected and powered via USB, the R4S gives you instant visual feedback of all your settings, while the large, stepped volume knob controls the relay attenuator in the main unit.

Controls
Input Select Buttons, Channels 1-8
Input Select allows you to switch between your desired input sources, which will be fed to your selected monitor output
Monitor Select Buttons 1-4
These allow you to select between the four monitor outputs — whatever source is selected will be fed to the selected monitor out
Mono, Dim, Mute, M/S, Sub
Pressing the Mono button sets the currently selected monitor output to mono
Press the Dim button to activate the -20 dB attenuator
Press and hold rotary control knob to mute
When Mono is activated you also have the option to select M/S
Pressing the M/S button selects either the sum or the difference between the left and the right channel
Pressing the Sub button activates the low-frequency effects (LFE) channel output
Trim Offset
To access the Trim Offset feature, press and hold the desired Monitor (1, 2, 3 or 4) and Input (Ch 1, 2, 3, 4, 5, 6, 7 or 8) buttons
Use the Rotary Control knob to trim (-6 to +6 dB in 1 dB steps) — double-click to set to 0 dB
SUM Select Button
The Sum Select button allows you to send your stereo sum to your selected monitor output
Talkback Button
Press the Talkback button to activate the on-board talkback microphone — this can be distributed to your selected headphones using the software control panel
Rotary Control
Large stepped relay attenuator for main monitor output

Antelope Satori Analog Monitoring And Summing System Specs
Inputs Analog 1 on XLR
Analog 2 – 4 on 1/4” TRS

Analog 5 – 8 on D-Sub

Talkback Mic on 1/4” TRS

USB (for remote control) on USB type B

* Nominal Analog Input level – 20 dBu (input trim on each input of +6 dB to -6 dB)

Outputs Monitor 1 on XLR
Monitor 2 – 4 on 1/4” TRS

Summer Output on 1/4” TRS

LFE on 1/4”

Headphones 1 – 2 (Front Panel) on 1/4” TRS

Headphones 3 – 4 (Back Panel) on 1/4” TRS

* Nominal Analog Output level – 20 dBu (Input Trim on each input of +6 dB to -6 dB)

Packaging Info
Package Weight 10.5 lb
Box Dimensions (LxWxH) 25.3 x 13.6 x 4.6"
Antelope R4S Remote Control For Satori Analog Monitoring System Specs
USB USB 2.0, full-speed interface on Type-B connector
USB bus-powered
Operating Temperature 32 to 120°F / 0 to 50°C
Dimensions 8.66 x 2.22 x 3.31" / 220 x 55 x 85 mm
Weight 1.57 lb / 710 g
Packaging Info
Package Weight 2.3 lb
Box Dimensions (LxWxH) 12.5 x 6.1 x 3.9"
