For example, Channel A could have Pink Noise or a sine wave, and Channel B program material. Select either Input A or B and just toggle between the two. Interlocking switches prevent more than one Input being selected at a time.

Interlocking switches also prevent more than one Output pair being selected at a time, so that each Output pair can be stepped through by pressing the subsequent switch. A status LED shows which output is currently active.

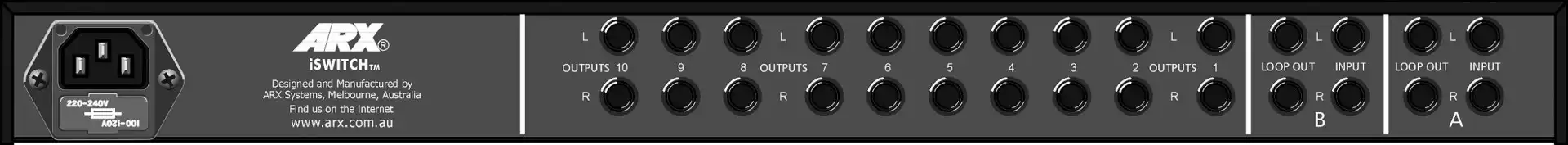

All Inputs and Outputs are electronically balanced on Tip-Ring-Sleeve jack connectors, and Loop outputs allow the Input signals to be looped to additional iSwitch units, for larger testing arrays to be set up.

Superb Audio Quality
The iSwitch’s ultra low noise figures come from extensive use of premium components, plus care and attention to board design and layout. The result is superb, transparent audio quality and the headroom to accurately reproduce the most demanding input signal.
A and B Input Gains are adjustable from Off through to +6 dB via level controls on the front panel. LED status indicators show which Input is currently active.

The unique ARX iSwitch provides a truly innovative solution to testing multiple powered speaker systems.

Every day, ARX Audio interface products solve audio problems for thousands of people around the world.
Audio is all we do...and we do it well.

Gain Off to +6dB
Input A and B Impedance 40 KOhm
Input Headroom +21dB
Outputs 1–10 Impedance 100 Ohm
Output Level (Max) +26dB

Frequency Response 10Hz – 20KHz ±0.25 dB
Signal to Noise ratio –96dB Unweighted, –102dB ‘A’ weighted
Distortion @ Unity Gain .0025% THD, 0dB @ 1 KHz
Dynamic Range 122 dB
Input Connectors Balanced Tip-Ring-Sleeve jack, wired Tip +, Ring –, Sleeve Audio Earth/Ground

Output Connectors Balanced Tip-Ring-Sleeve jack, wired Tip +, Ring –, Sleeve Audio Earth/Ground
Status Indicators Input A or B LEDs, Outputs 1–10 LEDs
Power Requirements 100-120/220-240 V AC, 50/60 Hz, 8VA (8 watts) on 3 pin IEC connector
Weight 5 lbs/2.2 Kg
Dimensions 19"W x 1¾"H x 6"D, 482 x 44 x 155mm
