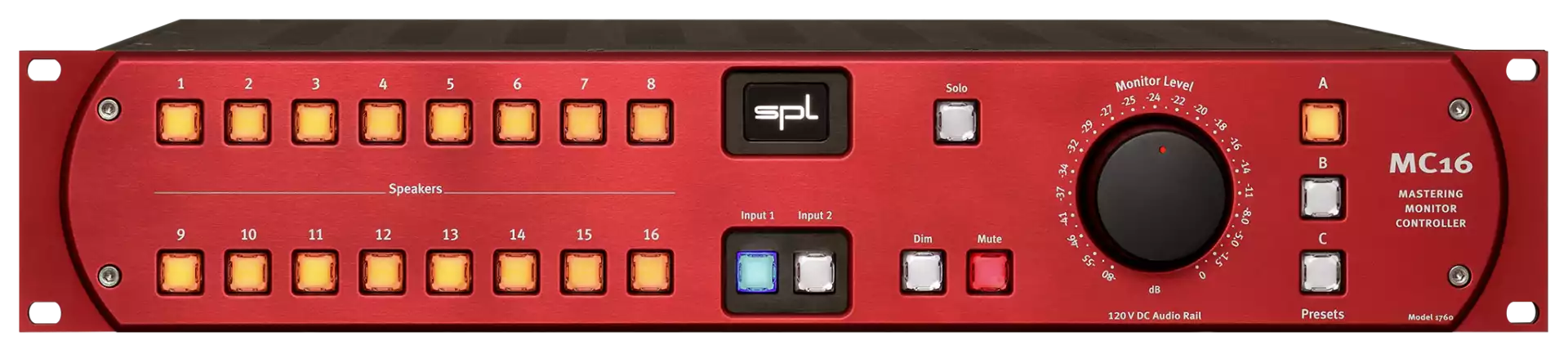

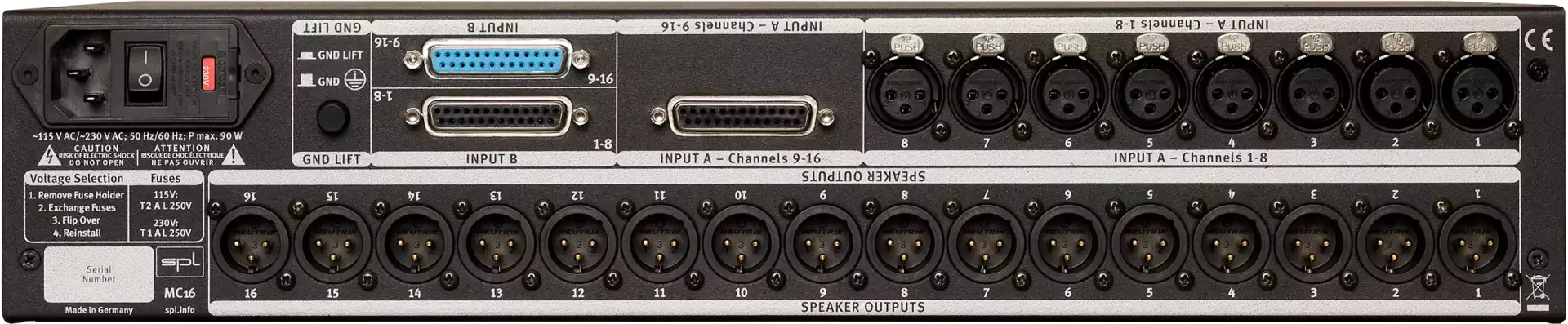

MC16 - 16 Channel Mastering Monitor Controller
Today’s mastering studio must be prepared for Dolby Atmos® and Auro 3D® projects. Monitoring up to 16 channels in a quality that is on par with state-of-the-art stereo was hard to achieve – until now.
The new MC16 sports the world’s first 16-gang precision potentiometer which was specially designed for SPL.
To seamlessly integrate multi-channel monitoring into a stereo mastering environment we developed a way of pairing the MC16 with our new DMC stereo mastering console. The combination of DMC and MC16 allows mastering studios to work in all current audio playback formats at the same quality level, all without reconnecting any speakers.
Inputs
- Max. Input Level: +32,5 dBu
- Input Impedance: 20 kOhm (sym.)
Outputs
- Max. Output Level: +32,5 dBu
- Output Impedance: ‹ 600 Ohm (sym.)
- Noise (unweighted): -97,3 dBu
- Noise (A-weighted): -102,4 dBu
- Noise (CCIR): -100,8 dBu
- THD & N (bei 24dBu): › 112 dB
- Common-Mode-Rejection (at 0 dBu): › -82 dBu
- Crosstalk (adjacent channels, at 1kHz): › -100 dBu
- Transmission Bandwidth: 10 Hz-200 kHz 10 Hz = -0,12 dB; 100 kHz = -0,42 dB; 200 kHz = -1,3 dB
Power Consumption:
- 0,29 Amp, 230V/50Hz, 50 Watt, 65,7 VA
- 0,58 Amp, 115V/60Hz, 50 Watt, 65,7 VA
Fuses:
- 230V/50Hz: 1 Amp
- 115V/60Hz: 2 Amp
Dimensions & Weight
- Standard EIA 19 Inch Housing/3U: 482 x 132 x 34 mm
- Weight: 8,4kg
