DIGITAL CLARITY, ANALOG WARMTH

Pure2 is a high-end mastering converter, powered by Antelope Audio’s legendary clocking and pristine analog circuitry

Pure2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator. It features Antelope Audio’s world-renowned Acoustically Focused Clocking (AFC) technology, and also utilizes pristine analog circuitry, driven by a proprietary multi-stage linear power supply for unsurpassed digital clarity and analog realism.

FEATURES

A/D CONVERSION

Improved overload handling for smoother clipping and analog warmth, handled by PCM4222

D/A CONVERSION

Dual DAC architecture for enhanced stereo imaging and signal-to-noise ratio

64-BIT MASTER CLOCKING

Sharp conversion timing via 4th gen AFC jitter management technology

HIGH-END D/A

Dedicated D/A converter for greater convenience, allows monitoring a secondary source

TRANSPARENT ANALOG MONITORING

A -1dB stepped relay attenuator with 0.05dB precision and full bypass option

SOFTWARE CONTROL

Super intuitive OS X & Windows compatible software panel

DESCRIPTION

FIVE HIGH-PERFORMANCE COMPONENTS:

A/D CONVERTER WITH OPTIMIZED OVERLOADS HANDLING

The famous Burr-Brown (TI) A/D converter PCM4222 is unsurpassed in terms of sound quality and performance.

MASTER CLOCK WITH 4TH GENERATION OF ANTELOPE’S AFC JITTER MANAGEMENT

Given its price and its incredible flexibility and functionality, the Pure2 is an excellent option for mastering and archiving studios.”

Photo by Sophie Brill

Jessica Thompson is a GRAMMY-nominated mastering and restoration engineer and audio archivist at Coast Mastering in Berkeley, California.
Her remaster of Erroll Garner’s iconic live performance The Complete Concert By the Sea (Sony/Legacy) was nominated for Best Historical Album GRAMMY, 2016

FLEXIBLE CONTROL

Access all Pure2 features via Mac & PC app or through the front-panel controls

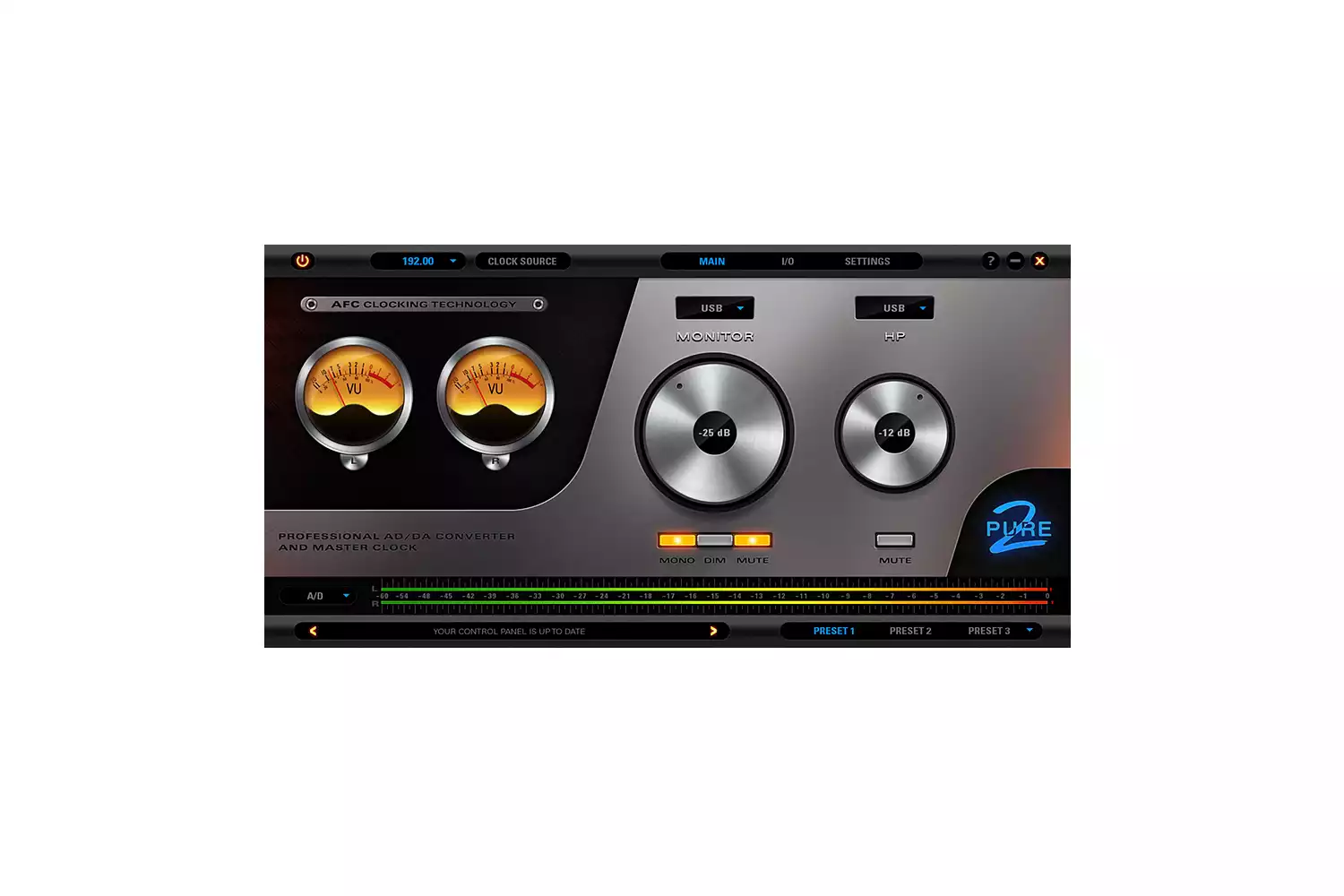

All Pure2 features are available in an intuitive software control panel for Mac or Windows provides users the ability to manage all facets of the device operation. Pure2 is also configurable via the front panel with user-definable presets.

EASY LIFE

We know the engineer’s life is not a glamorous one. So we tried to make it easier.

You can set up Pure2 in a couple of minutes. All you actually need is one USB cable (provided in the box) and a laptop of your choosing (Win 7.1 or higher / Mac OSx 10.9 or higher) and you can start capturing stereo audio at 192 kHz.

After setting it up, just download the Control Panel, a few clicks and you’re set.

SPECIFICATIONS

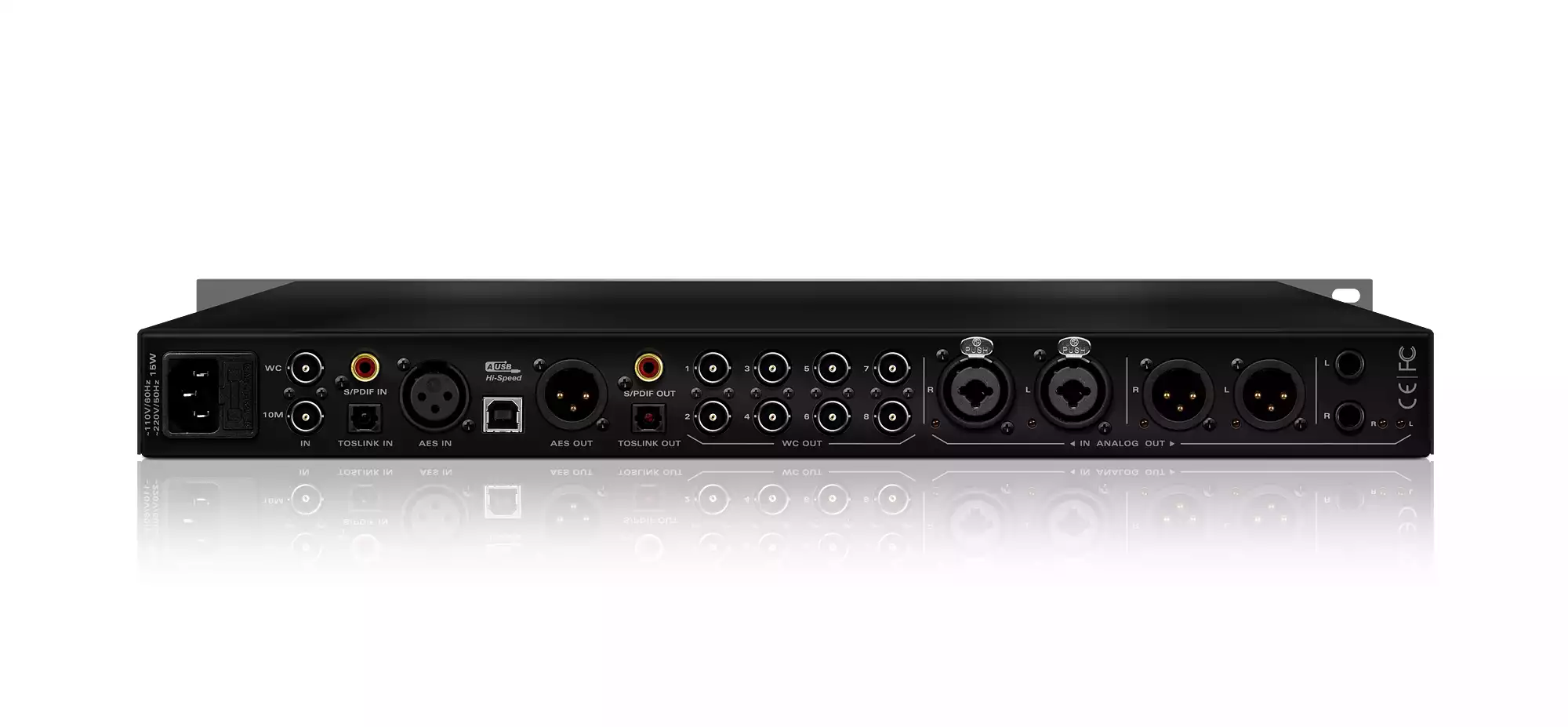

    • Analog Inputs

2 x Combo Balanced Analog (XLR / 1/4 TRS) factory calibrated to +20dBu

    • Digital Inputs

1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
1 x TOSLINK on optical fiber: up to 96kHz

    • Word Clock Input

1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

    • Analog Outputs

1 x Stereo pair of Balanced XLR Outputs from D/A Converter (Main Output) is factory calibrated to 20dBu and user adjustable from 8dBu to 26dBu
1 x Stereo pair Balanced Outputs for monitors (2 x 1/4 TRS)
1 x 1/4 TRS Front Headphones 20dBu

    • Digital Outputs

1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
1 x TOSLINK on optical fiber: up to 96kHz

    • Word Clock Outputs

8 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz


    • USB I/O

USB 2.0 Hi-Speed; Data stream up to 480Mbits/192kHz,
4 channels I/O playback/record, Type B

    • External Reference Clock

1 x 10M Atomic Clock Input @ 75 Ohms 1Vpp on BNC
1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

    • A/D Converter

Dynamic Range: 122dB
THD+N: -105dB

    • D/A Converters

Main DAC Dynamic Range 127dB; THD+N -107dB
Monitor DAC Dynamic Range 120dB; THD+N -103dB
Headphones DAC Dynamic Range 120dB; THD+N -100dB

    • Clock Specifications

<+/-0.02 PPM, oven controlled at 64.5°C/ 148.1°F

    • Clock Aging

< 1 ppm per year

    • Clock Calibration

< +/-0.001 ppm


    • Atomic Clock Input

10MHz @ 1Vpp, BNC

    • Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192

    • Operating Temperature

0-50°C, 32-122°F

    • Weight

3 kg, 6.6 lb approx.

    • Dimensions (Approx)

483mm(W) x 44mm(H) x 220mm (D)
19”(W) x 1.75”(H) x 8.66”(D)

    • Power Supply

~110VAC 60Hz/ ~220VAC 50Hz selectable

    • Atomic Clock Input

1 x 10M Input @ 75 Ohms 1Vpp on BNC

    • Fuses

2 x 0.8A 250VAC 5mm x 20mm Type T (or Time delay)

System requirements

Windows

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth: 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.
