Common

    AD and DA resolution: 24-bit
    Sampling rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
    Host connection: USB Type-C socket

Instrument Input

    Input impedance:1 MOhms
    Maximum input level: +9 dBu
    Frequency response: From 20 Hz to 20 kHz within 3 dB (96 kHz sample rate)
    Dynamic range: 115 dB(A)

Amp Output

    Configuration: Unbalanced
    Output impedance: 3.3 kOhms
    Output level: 0 dBFS corresponds to -2 dBu
    Frequency response: From 15 Hz to 40 kHz within 1 dB (96 kHz sample rate)
    Dynamic range: 97 dB(A)

Headphone Output

    Output impedance: 22 Ohms
    Maximum output level: approx 8 mW into 32 Ohms load
    Frequency response: From 15 Hz to 40 kHz within 1 dB (96 kHz sample rate)
    Dynamic range: 95 dB(A)

Package includes

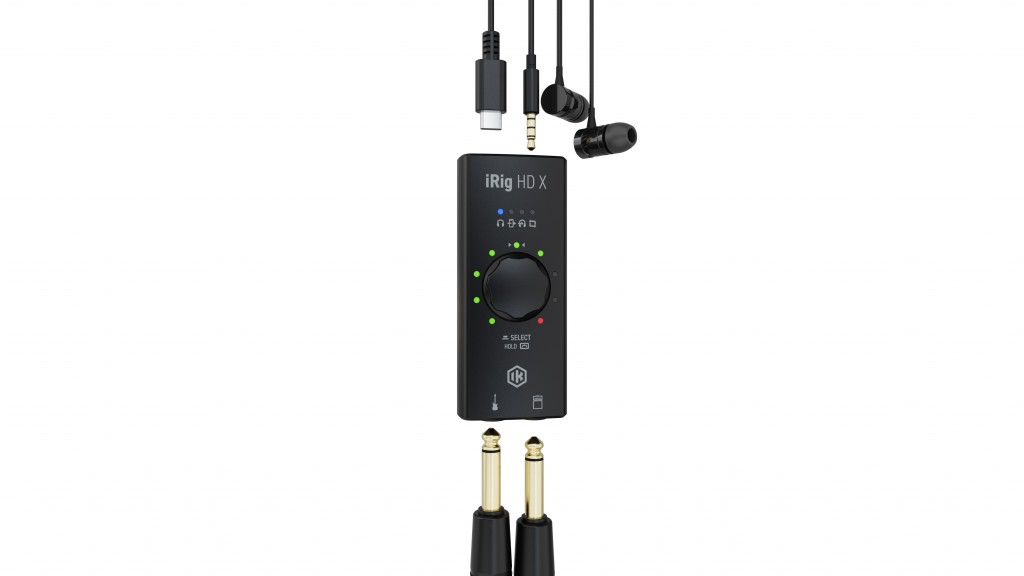

    iRig HD X interface
    USB-C to USB-C cable (60 cm/23.62")
    USB-C to Lightning cable (60 cm/23.62")

Dimensions

    Size: 99 mm/3.9" x 42 mm/1.65" x 25 mm/0.98"
    Weight: 54 g/1.9 oz.

Compatibility
iOS Devices

Made for: iPhone 14 Pro Max, iPhone 14 Pro, iPhone 14 Plus, iPhone 14, iPhone SE (2nd and 3rd generation), iPhone 13 Pro Max, iPhone 13 Pro, iPhone 13, iPhone 13 mini, iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPad Air (3rd, 4th and 5th generation), iPad (9th generation), iPad mini (5th and 6th generation), iPad Pro 12.9-inch (1st, 2nd, 3rd, 4th and 5th generation), iPad Pro 11-inch (2nd and 3rd generation), iPad (8th generation), iPad Pro 11-inch, iPad Pro 10.5-inch, iPad Pro 9.7-inch, iPad Air 2, iPad Air, iPad mini 4, iPad mini 3, iPad mini 2, iPad (5th, 6th and 7th generation), iPod touch (6th and 7th generation).

Also compatible with all newer iPhone, iPad and iPod touch models.
Computers

Mac®: macOS 10.6 or later. One free USB port.

Windows®: Windows 10 or later. One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed. Download the iRig ASIO driver here.
Android Devices

Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.

Key features

    Compact, 24-bit/96 kHz audio interface for guitar or bass
    Connects directly to iPhone or iPad and Mac/PC
    Audiophile-grade 1/8″ stereo out for headphones and monitors

    1/4″ Amp out connects to amps, pedalboards or FRFR speakers
    Ideal for guitar and bass players of all levels
    For practice, finding tones, jamming, recording and streaming

What’s new

    Low-noise input with a dynamic range of 115 dB accepts all guitar pickup types, passive or active
    USB-C Bus-powered by host device
    Elegant, easy-to-use single-knob interface with LED ring
    Ultra-fast onboard tuner
    Loopback+ virtual FX loop adds professional guitar tone to any app
    Includes AmpliTube 5 SE and TONEX SE for Mac/PC
    Unlocks TONEX SE plus full version features and gear of AmpliTube for iPhone/iPad (Free download from App Store)

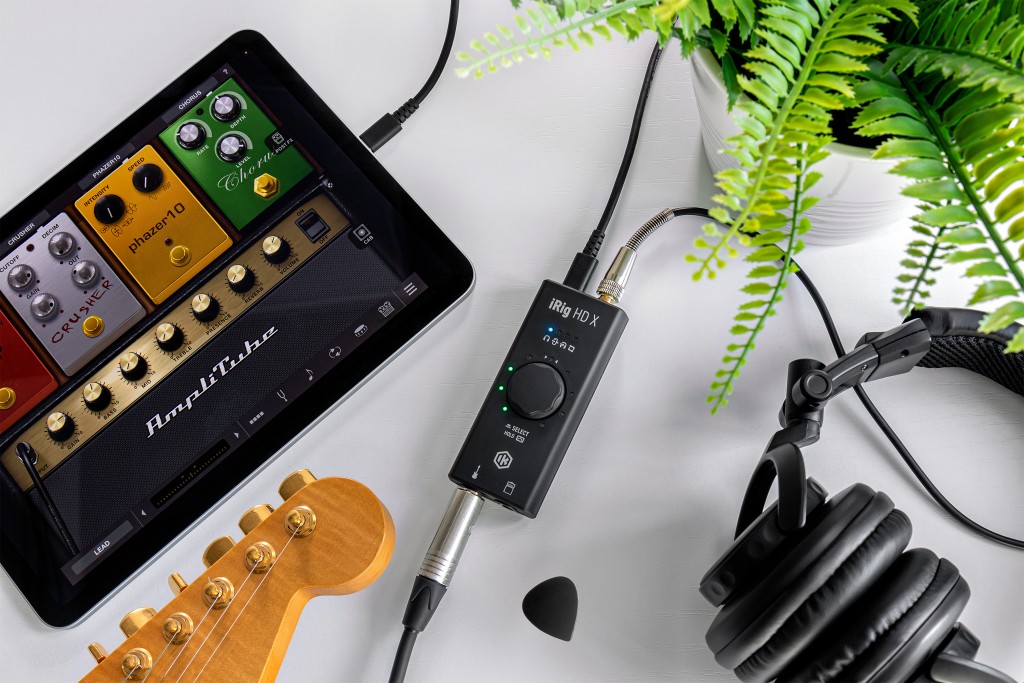

Your new mobile dream rig

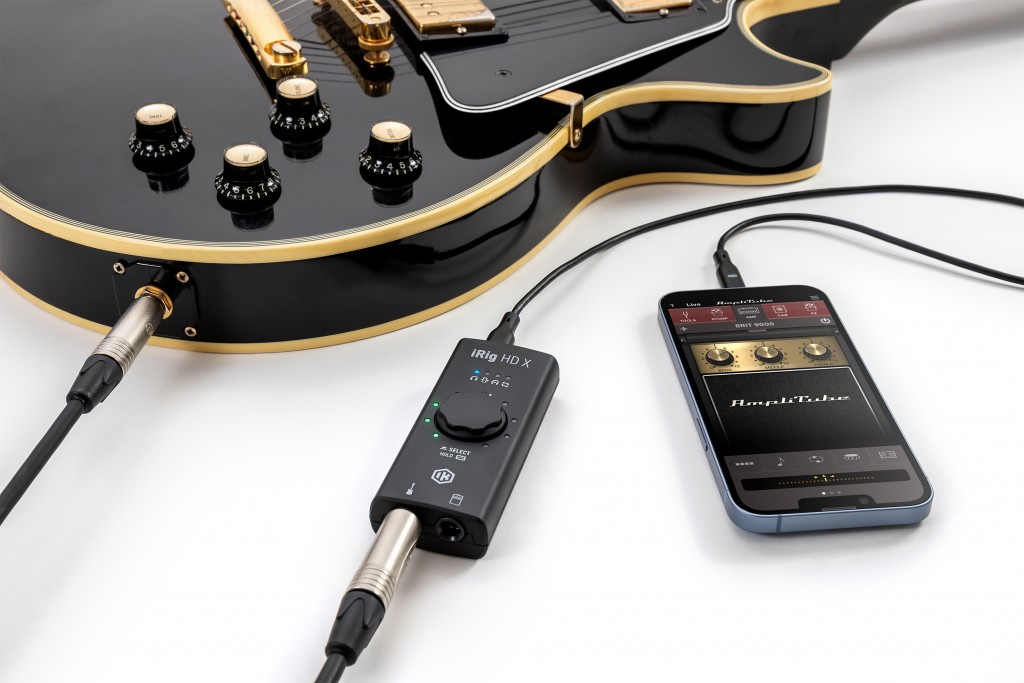

iRig HD X + TONEX and AmpliTube for iPhone and iPad gives you an incredibly versatile mobile rig with 2 powerful ways to find your sound: TONEX using IK’s AI Machine Modeling technology, and AmpliTube offering the ultimate tone processing and recording studio. Play, practice and record on your mobile device with the most authentic and hyper-realistic gear models ever made.

Ultra-compact, high-quality audio

iRig HD X features a whisper quiet and transparent instrument preamp with wide frequency response and dynamic range that ensures every nuance of your playing is accurately translated while preserving the true tone of your instrument. The Headphone Out and Amp Out are equally high end offering exceptional sound quality in a device this portable.

One knob to do it all

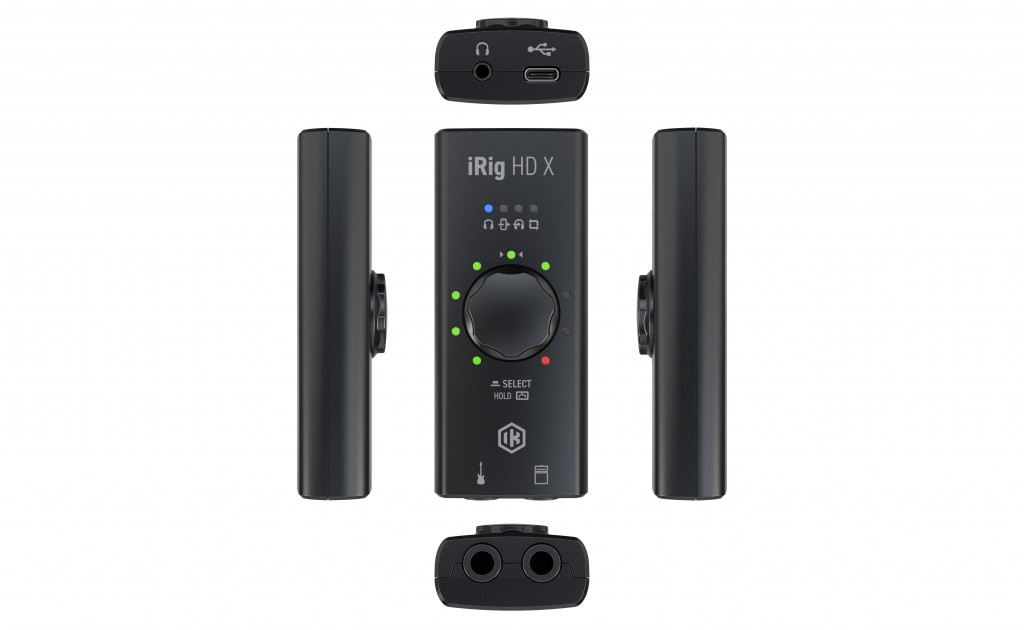

iRig HD X sports an all-new enclosure featuring a LED ring input level indicator that also doubles as an ultra-fast and precise tuner for the connected instrument. Its ergonomic, multi-function knob lets users quickly adjust headphone level, loopback functions, direct monitoring and the tuner.

Reach your guitar goals faster

Practicing should be fun. With iRig HD X you’ll be inspired by professional guitar tone while you learn. From anywhere, easily connect to the most popular learning apps while playing through the best amp models. Use the included TONEX and AmpliTube apps to load one of your go-to tones then launch your preferred app to study music, tabs or the original song. It’s that easy!

Discover the best tones online

iRig HD X comes with AmpliTube 5 SE with 80 models covering all the “must have” gear. You also get TONEX SE for Mac/PC and iOS, which includes 200 Premium Tone Models plus unlimited user Tone Model downloads from ToneNET. You can browse, demo and download new guitar and bass tones within TONEX or build the ultimate guitar rig with AmpliTube 5.

Have fun playing along

Imagine finding perfect guitar tones from ToneNET for songs you love. Got a few minutes to play? Just plug-in and open up AmpliTube or TONEX and start jamming with incredible tone. No need to plug in a pedalboard or out-board gear. Play along with backing tracks on YouTube or from your music library or streaming service. Staying inspired has never been this easy.

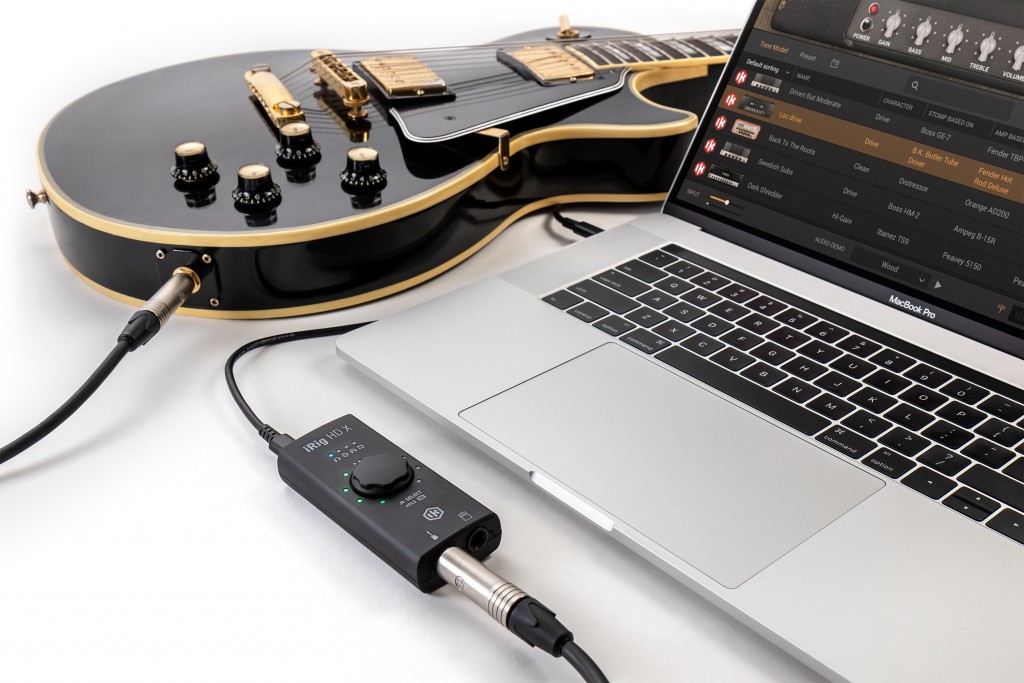

Recording audio tracks

iRig HD X is recognized by all desktop and iOS recording apps. TONEX and AmpliTube for Mac/PC work standalone or as plug-ins inside your favorite DAW so it’s easy to record a DI or a processed guitar part. You can use the Loopback+ feature of iRig HD X (which acts like a virtual FX loop) to route your guitar signal first to TONEX or AmpliTube and then into your recording app.

Recording and streaming Video

The same feature that lets you record processed audio on your mobile device also lets you record or stream video with your amazing guitar tones sounding crystal clear. Use the Loopback+ feature of iRig HD X to route your guitar signal first to TONEX or AmpliTube and then into the video recording App on your iPhone or your streaming App of choice. You fans will love how great you sound.

With more ways to connect on more devices and with all your favorite apps, iRig HD X is your all-access pass to limitless musical experiences.

Ideal for all players

Whatever your level and style of music, iRig HD X will keep you connected to the newest and best tools for sounding great, learning new songs, advancing as a player and sharing the music you make with others. Sound better, play more and improve faster throughout a lifetime of guitar with iRig HD X.
