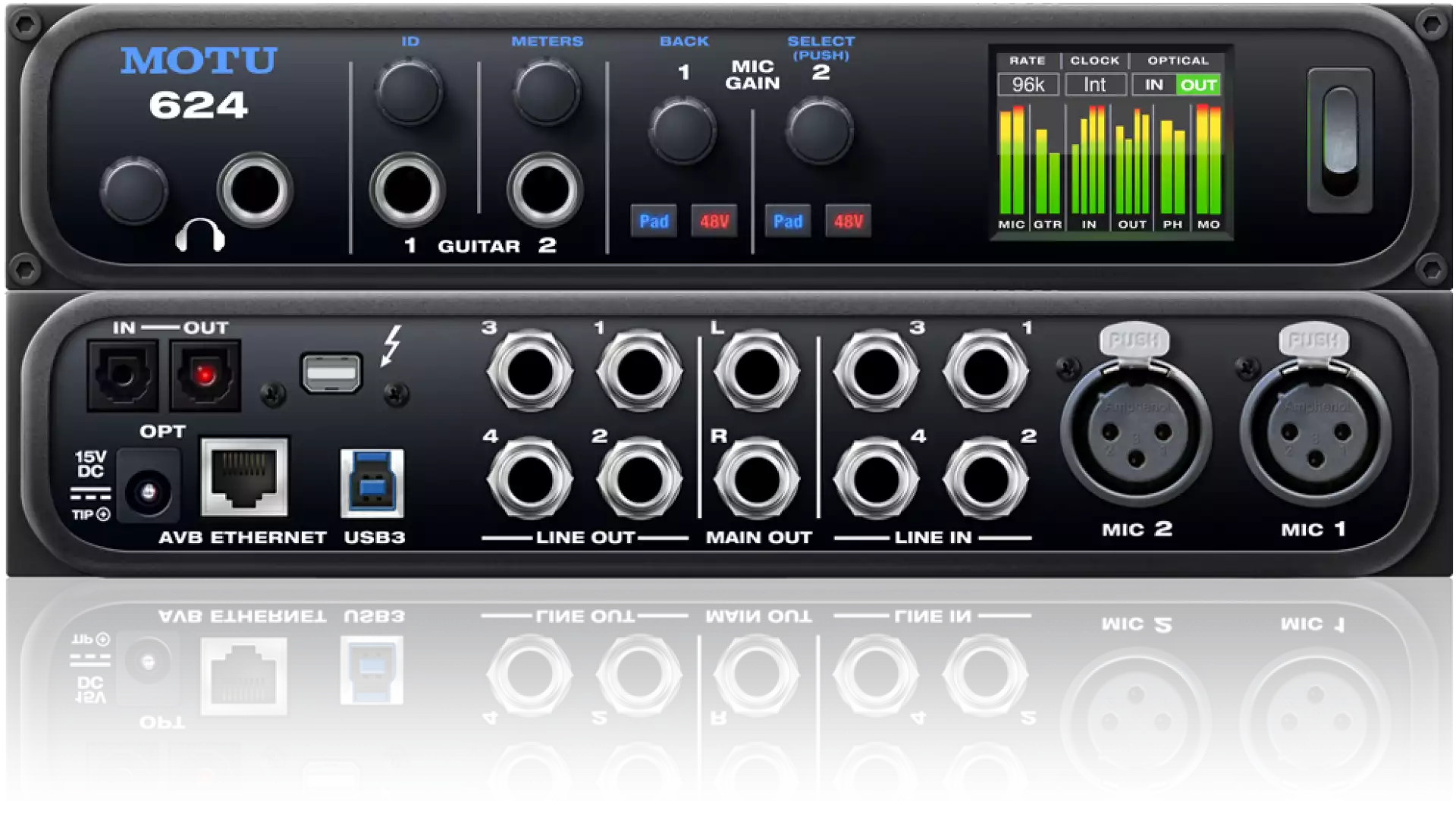

MOTU 624
The MOTU 624 is a portable audio interface with Thunderbolt, USB 3.0 and AVB / TSN connectivity. It suits in many audio recording applications and has a standalone function, so it can be used as a digital mixing console as well as effect device because of the integrated DSP mixer with 48 channels.
Technical Specifications
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Mic inputs | 2 x XLR mic inputs Preamp gain: 0 to +63 dB (digitally controlled) |
| Analog inputs | 2 x 1/4" hi-Z guitar inputs (front panel) 4 x 1/4" TRS line inputs (balanced/unbalanced) Max level: +24 dBu (range -96 to +22) |
| Analog outputs | 6 x 1/4" TRS line out (balanced, DC coupled 5v) Max level: +20 dBu (range -4 to +20) 1 x 1/4" TRS stereo headphone |
| Digital I/O | 1 bank (8 ch) of ADAT optical at 1x sample rates 1 bank (4 ch) of SMUX optical at 2x sample rates Switchable to stereo TOSLink (optical S/PDIF) |
| Total I/O | 16 inputs / 16 outputs (32 total) at 1x sample rates 12 inputs / 12 outputs (24 total) at 2x sample rates 8 inputs / 8 outputs (16 total) at 4x sample rates |
| Computer I/O | 1 x Thunderbolt 1 (Mac and Win) Thunderbolt 2 & 3 compatible 1 x USB 3.0 (Mac and Win) USB 2.0 and iOS compatible (class compliant) 1 x AVB/TSN Ethernet (Mac only) Requires OS X 10.11 or later |
| Computer I/O channels | Thunderbolt (44.1 to 96 kHz): 128 in/out Thunderbolt (176.4 to 192 kHz): 64 in/out USB 3.0 (44.1 to 96 kHz): 128 in/out USB 3.0 (176.4 to 192 kHz): 64 in/out AVB/TSN Ethernet: 16 to 128 in/out depends on host computer speed |
| Headphone | 1 x 1/4" TRS stereo phone (assignable) |
| Phantom power | 2 x individual +48V |
| Network I/O | 1 x RJ45 AVB/TSN Ethernet (1 Gbps) |
| AVB streams (8 channels per stream) |
8 in / 8 out @ 44.1 or 48 kHz 8 in / 8out @ 88.2 or 96 kHz 8 in / 8 out @ 176.4 or 192 kHz |

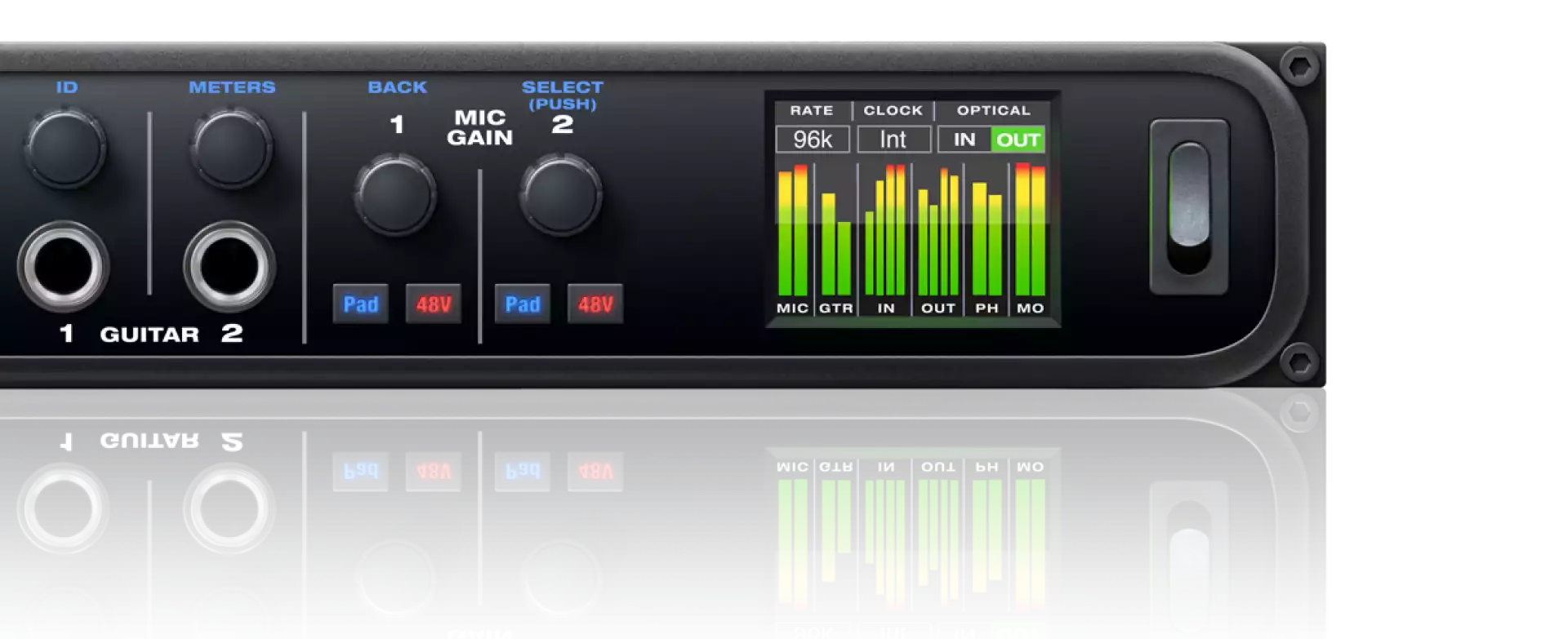

| Front panel | 1 x 1/4" TRS headphone output 2 x TRS hi-Z guitar input 1 x digital rotary encoder • main/phone volume 2 x digital rotary encoders • guitar gain 2 x digital rotary encoders • mic preamp gain 4 x switches • (2) Pad and (2) 48V Phantom 160 x 128 pixel RGB LCD for level meters / menu nav Power switch |
| Power | External 12-18V DC power supply 1.0A max • tip pos or neg |
| Dimensions and weight |
(width x depth x height, enclosure only) 8.6 x 7 x 1.75 inches 22 x 17.75 x 4.5 cm 2.2 lbs / 1.0 kg |
Mac System Requirements
- 1 GHz Intel-based Mac or faster
- 2 GB RAM; 4 GB or more recommended
- Mac OS X version 10.8 or later
- Available Thunderbolt, USB or AVB/TSN Ethernet port*
- A large hard drive (at least 500 GB for recording)
- *AVB/TSN Ethernet audio interface operation requires OS X 10.11 or later
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 2 GB RAM; 4 GB or more recommended
- Windows 7, 8 or 10
- Available Thunderbolt or USB port
- Available Ethernet port for firmware updates
- A large hard drive (at least 500 GB for recording)
Web App Support
- Any web client platform: Mac, Windows, Linux, iOS, Android
- Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
- Web client must be connected to the same network as the MOTU interface by wire or Wi-Fi.
Included Software
- MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)
- MOTU Discovery App for iOS (available from Apple App Store)
- MOTU Pro Audio Control web app (served from the hardware itself)
- MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer)
- AudioDesk 4.0 for Mac & PC (separate download)
Operating Systems
- For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
- For web app control: Mac, Windows, Linux, iOS, Android
Analog I/O Specifications
Connector type |
Dynamic range (A-weighted) |
THD+N (unweighted) |
Max level |
Trim range (in 1 dB steps) |
|
|---|---|---|---|---|---|
| Line output | 1/4" TRS, balanced, tip hot | 123 dB | -110 dB | +20 dBu | 24 dB (-4 to +20) |
| Line input | 1/4" TRS, bal/unbal, tip hot | 117 dB | -110 dB | +24 dBu | 118 dBu (-96 to +22) |
| Mic input | XLR, balanced, pin 2 hot | 118 dB | -110 dB | +24 dBu (with pad) |
63 dB |
| Phones | 1/4", TRS stereo | 108 dB | -100 dB | Max. 80 mw | 128 dB |
Compatible Mac Software
The 624 ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:
- MOTU Digital Performer
- Avid Pro Tools (version 9 or later)
- Apple Logic Pro
- Apple Logic Express
- Apple Garage Band
- Apple SoundTrack Pro
- Ableton Live
- Propellerhead Record & Reason
- Steinberg Cubase
- Cockos Reaper
- Native Instruments Kontakt
- Waves stand-alone apps (and plug-ins, via compatible host)
Compatible Windows Software
The 624 ships with standard ASIO and Wave drivers for Windows 7, 8 and 10 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including:
- MOTU Digital Performer
- Avid Pro Tools (version 9 or later)
- Ableton Live
- Cakewalk Sonar
- Steinberg Cubase
- Propellerhead Record & Reason
- Image Line FL Studio
- Sony Vegas Pro
- Sony Sound Forge
- Sony Acid
- Cockos Reaper
- Native Instruments Kontakt
- Waves stand-alone apps (and plug-ins, via compatible host)
624 Feature Summary
Superb analog audio quality and high-end converters
Renowned ESS Sabre32 Ultra™ DAC technology delivers 123 dB dynamic range and the same proven, award-winning audio quality as MOTU's flagship 1248.
Ultra-low latency and proven, high-performance MOTU drivers
Round-trip latency (RTL) performance as low as 1.6 ms at 96kHz over Thunderbolt™ with high-performance DAW hosts.
Mobile operation and universal connectivity
Connects to your computer with Thunderbolt™, super-speed USB 3.0 or AVB/TSN Ethernet for up to 256 audio channels (128 in and 128 out). Class-compliant firmware and Industry standard drivers work with any audio apps. Connects to iPad™ with a standard camera connection kit (adapter).
32 simultaneous audio channels
2 mic inputs, 2 guitar inputs, 4 x 6 balanced analog with dedicated main outs, 8-channel ADAT optical and independent phone out for 16 inputs and 16 outputs.
DSP mixing and effects processing
Flexible 48-input digital mixer with 7 stereo aux busses, 3 group sends, access to 64 network inputs, and DSP effects, including reverb, 4-band EQ, gate and compression.
32-bit floating point processing
The 624's mixing and effects DSP engine delivers virtually unlimited headroom and the utmost in sound quality.
Modeled vintage effects processing
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.
Flexible matrix routing and splitting
Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the audio network.
Stand-alone operation with wireless control
Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.
Web app control from any device
Control everything from your favorite web browser on a laptop, tablet and smartphone connected to your local Wi-Fi network.
System expansion
Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB/TSN Switch (sold separately).
AVB/TSN audio networking
Build a network with multiple interfaces and computers using standard AVB/TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
Optical I/O
Connect outboard digital processors, digital mixers or other gear. 8 channels of ADAT at 44.1/48 kHz, 4 channels of SMUX at 88.2/96 kHz or stereo TOSLink (optical S/PDIF) up to 96 kHz.
Comprehensive metering
The full-color LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.
AudioDesk®
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
