MOTU Monitor 8
Technical Specifications
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Analog inputs | 8 x 1/4" TRS line inputs (balanced/unbalanced) Max level: +24 dbU (digitally adjustable -96 to +22 dB) Trim: -96 to +22 dB (digitally adjustable) |

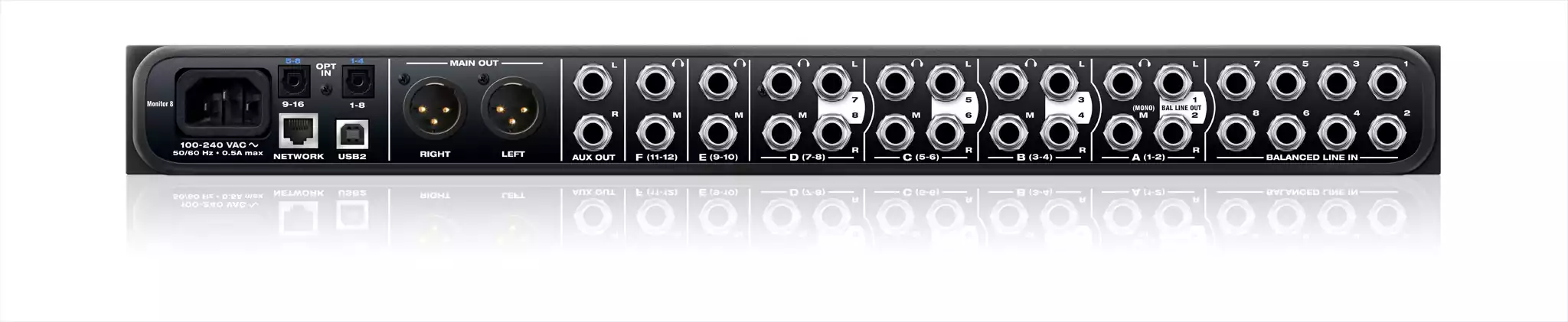

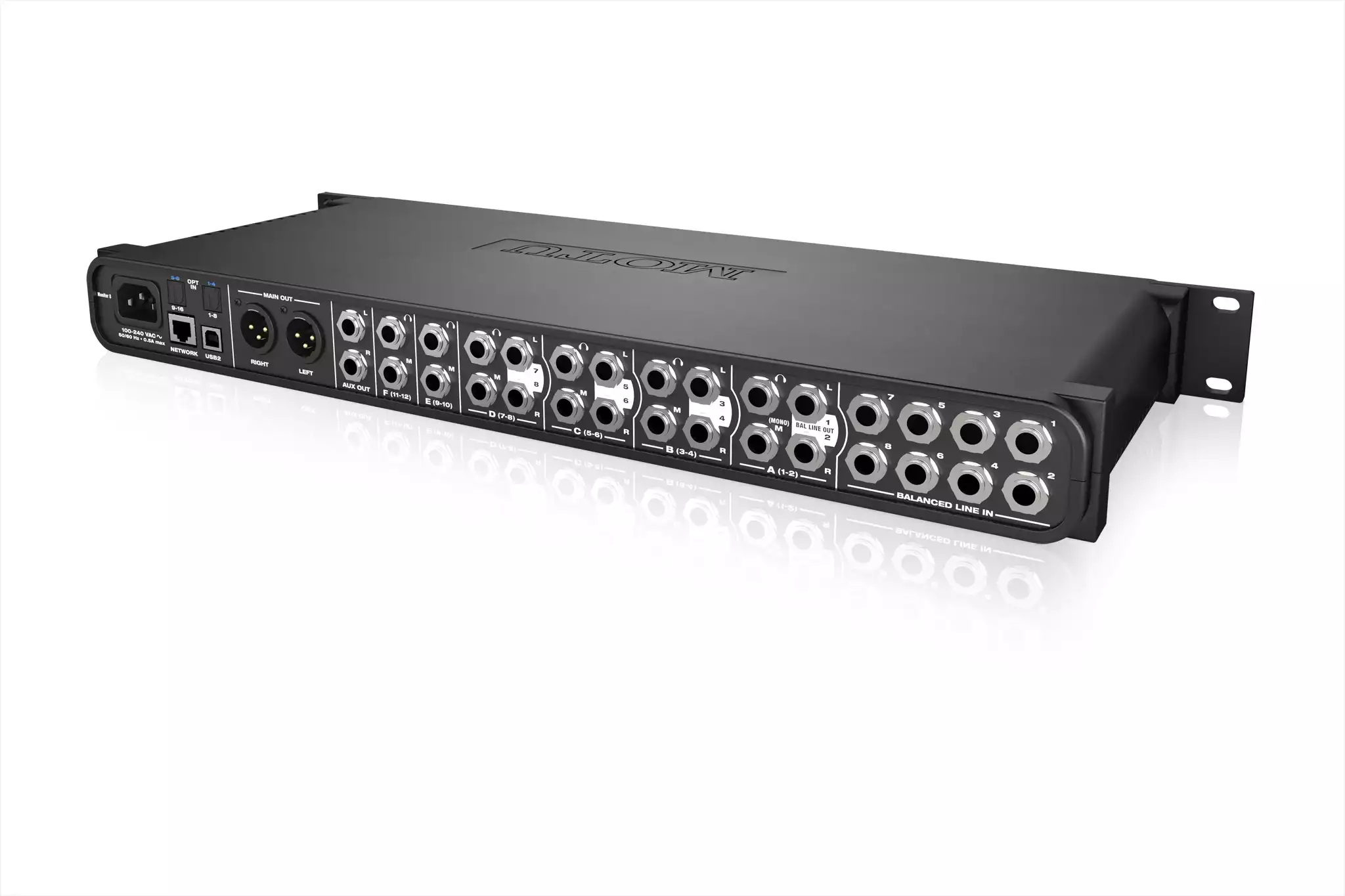

| Analog outputs | 10 x 1/4" TRS line out (balanced, DC coupled) 6 x 1/4" TS line out (summed mono) 2 x XLR line out (pin 2 hot) Max level: +22 dBu Trim: 127 to 0 dB (digitally adjustable) 12 x 1/4" TRS stereo headphone |
| Digital Input | 2 banks (16 ch) of ADAT optical input at 1x rates 1 bank (8 ch) of SMUX optical input at 2x rates Stereo TOSLink (optical S/PDIF) on Bank A (optional) |
| Total I/O connections | 24 inputs and 30 outputs (54 total) at 1x rates 16 inputs and 30 outputs (46 total) at 2x rates 8 inputs and 30 outputs (38 total) at 4x rates |
| Total I/O channels | 24 inputs and 16 outputs (40 total) at 1x sample rates 16 inputs and 16 outputs (32 total) at 2x sample rates 8 inputs and 16 outputs (24 total) at 4x sample rates |
| Computer I/O | 1 x USB 2.0 audio class compliant USB 3.0 and iOS compatible 1 x AVB Ethernet (requires OS X Yosemite) |
| Computer I/O channels | USB 2.0 (44.1 to 48 kHz): 64 in/out USB 2.0 (88.2 to 96 kHz): 32 in/out USB 2.0 (176.4 to 192 kHz): 24 in/out AVB Ethernet: 16 to 128 in/out, depending on host computer speed |
| Headphone | 12 x 1/4" TRS stereo phone (mirrored in 6 pairs) |
| Network I/O | 1 x RJ45 AVB/TSN Ethernet (1 Gbps) |
| AVB streams (8 channels per stream) |
8 in / 8 out @ 44.1 or 48 kHz 8 in / 8out @ 88.2 or 96 kHz 8 in / 8 out @ 176.4 or 192 kHz |

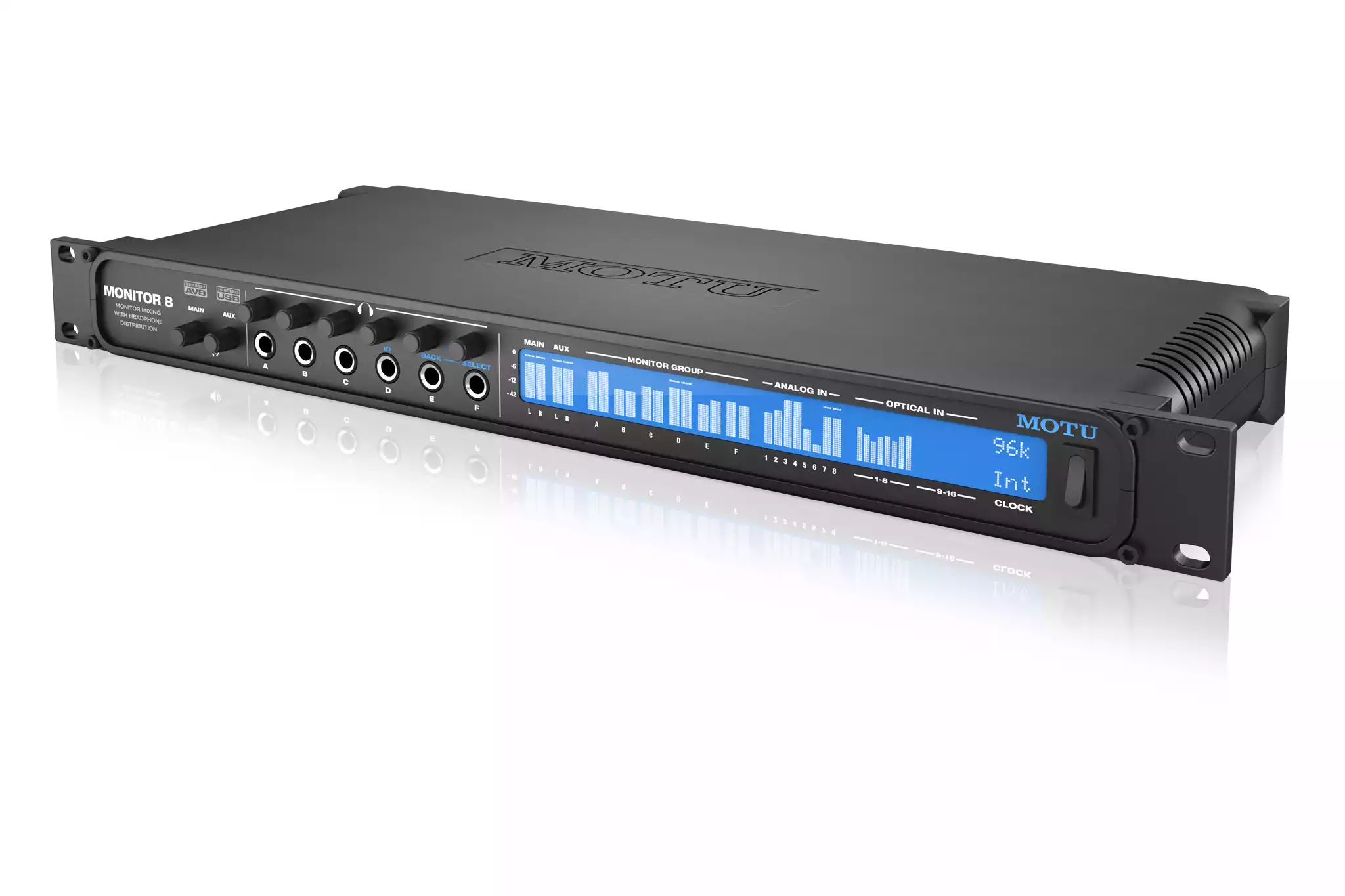

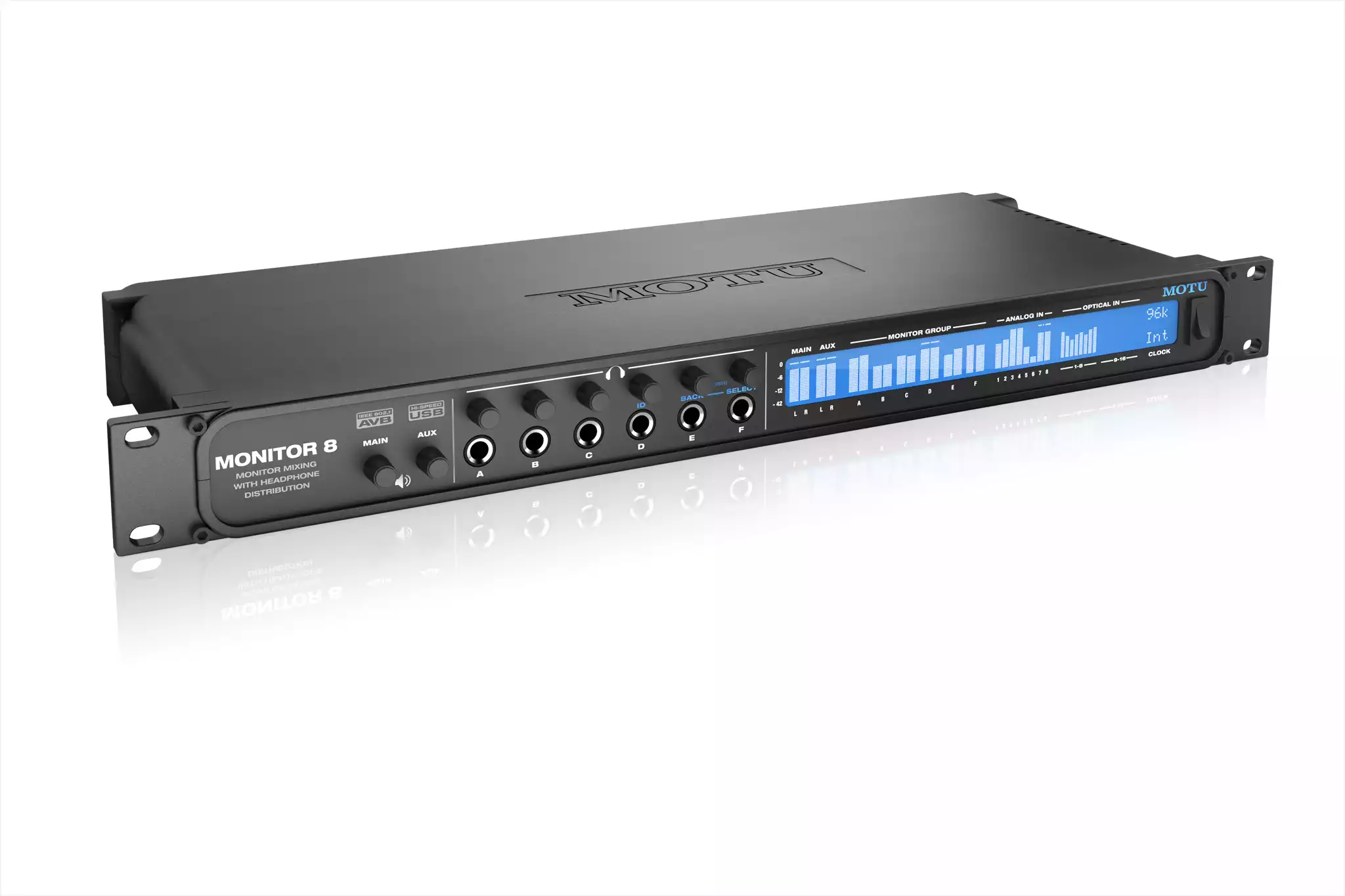

| Front panel | 6 x 1/4" TRS headphone output 1 x digital rotary encoder • main out volume 1 x digital rotary encoder • aux out volume 6 x digital rotary encoders • phone volume 324 x 24 pixel LCD for level meters / menu nav 1 x AC power switch |
| Power | International 100-240V autoswitching supply 50-60 Hz • 0.5A max |
| Dimensions and weight |
(width x depth x height, enclosure only) 19 x 7 x 1.75 inches 48.3 x 17.75 x 4.5 cm 5.1 lbs / 2.31 kg with rack brackets removed: 17.25 inches (43.8 cm) wide 5.0 lbs / 2.27 kg |
Mac System Requirements
- 1 GHz Intel-based Mac or faster
- 2 GB RAM; 4 GB or more recommended
- Mac OS X version 10.8 or later
- Available high-speed USB 2.0 or AVB Ethernet port*
- A large hard drive (at least 500 GB for recording)
- *AVB Ethernet audio interface operation requires OS X Yosemite
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 2 GB RAM; 4 GB or more recommended
- Windows 7, 8 or 10
- Available USB 2.0 or 3.0 port
- Available Ethernet port for firmware updates
- A large hard drive (at least 500 GB for recording)
Web App Support
- Any web client platform: Mac, Windows, Linux, iOS, Android
- Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
- Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.
Included Software
- Thunderbolt and USB 2.0 drivers
- MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)
- MOTU Discovery App for iOS (available from Apple App Store)
- MOTU Pro Audio Control web app (served from the hardware itself)
- MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer)
- AudioDesk 4.0 for Mac & PC (separate download)
Operating Systems
- For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
- For web app control: Mac, Windows, Linux, iOS, Android
Analog I/O Specifications
Connector type |
Dynamic range (A-weighted) |
THD+N (unweighted) |
Max level |
Trim range (in 1 dB steps) |
|
|---|---|---|---|---|---|
| Line output | 1/4" TRS, balanced, tip hot | 123 dB | -110 dB | +20 dBu | 128 dB (-127 to 0 dBu) |
| Line input | 1/4" TRS, bal/unbal, tip hot | 110 dB | -104 dB | +24 dBu | 118 dB (-96 to +22 dB) |
| Phones | 1/4", TRS stereo | 108 dB | -100 dB | Max. 80 mw | 128 dB |
Compatible Mac software
Monitor 8 ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:
- MOTU Digital Performer
- Avid Pro Tools (version 9 or later)
- Apple Logic Pro
- Apple Logic Express
- Apple Garage Band
- Apple SoundTrack Pro
- Ableton Live
- Propellerhead Record & Reason
- Steinberg Cubase
- Cockos Reaper
- Native Instruments Kontakt
- Waves stand-alone apps (and plug-ins, via compatible host)
Compatible Windows software
Monitor 8 ships with standard ASIO and Wave drivers for Windows 7, 8 and 10 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including:
- MOTU Digital Performer
- Avid Pro Tools (version 9 or later)
- Ableton Live
- Cakewalk Sonar
- Steinberg Cubase
- Propellerhead Record & Reason
- Image Line FL Studio
- Sony Vegas Pro
- Sony Sound Forge
- Sony Acid
- Cockos Reaper
- Native Instruments Kontakt
- Waves stand-alone apps (and plug-ins, via compatible host)
Monitor 8 Feature Summary
Three products in one
24 x 16 x 8 monitor mixer, 6-channel headphone amp and USB/AVB audio interface.
Exceptional audio quality
Employs the same industry-recognized analog design as MOTU's groundbreaking 1248, 8M and 16A audio interfaces. The balanced, DC-coupled analog outputs produce measured performance of 123 dB dynamic range (A-weighted) and -110 dB THD+N (0.0003%) at -1 dBFS, Unweighted, 1 kHz.
24 inputs and 8 stereo bus outputs
Mix 24 physical inputs, multi-channel computer audio, and 64 AVB audio network channels to eight stereo bus outputs (Main, Aux, and monitor groups A thru F). Inputs include 8 channels of balanced (TRS) analog and 16 channels (2 banks) of ADAT optical.
Six monitor groups with flexible outputs
Each group provides multiple mirrored outputs, including 2x 1/4-inch phones (front and rear panel), summed 1/4-inch mono out for stage monitors, and, for groups A-D, balanced stereo 1/4-inch outs, which can be fed to in-ear monitoring systems or other stereo destinations.
Universal connectivity
Connects to a computer with standard AVB Ethernet or audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works alongside any host audio software.
On-board DSP with mixing and effects
Flexible 48-input digital mixer modeled after large format mixing consoles, with 12 stereo busses and DSP effects, including reverb, 4-band EQ, gate, and compression.
32-bit floating point processing
DSP-driven mixing and effects engine delivers virtually unlimited headroom and the utmost in sound quality.
Modeled vintage effects processing
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.
System expansion and audio networking
Add a 2nd MOTU AVB interface (1248, 8M, 16A, 24Ai or 24Ao) with a simple Cat-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately). Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
Flexible matrix routing and splitting
Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network.
Stand-alone mixing with wireless control
Connect an Apple Airport™ or other Wi-Fi router directly to Monitor 8 with a standard Ethernet cable and control the 8M's powerful mixing and DSP effects from your smartphone or tablet, without a computer. Great for live show monitor mixing.
Web app control
Control on-board DSP, mixing, device settings, and network audio routing from web app software running in your favorite browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network.
Two banks of ADAT digital input
Connect digital mixers, optical expanders or other gear. 16 channels at 44.1/48 kHz or 8 channels at 88.2/96 kHz.
Comprehensive metering
The large backlit 324 x 24 LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.
AudioDesk
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
