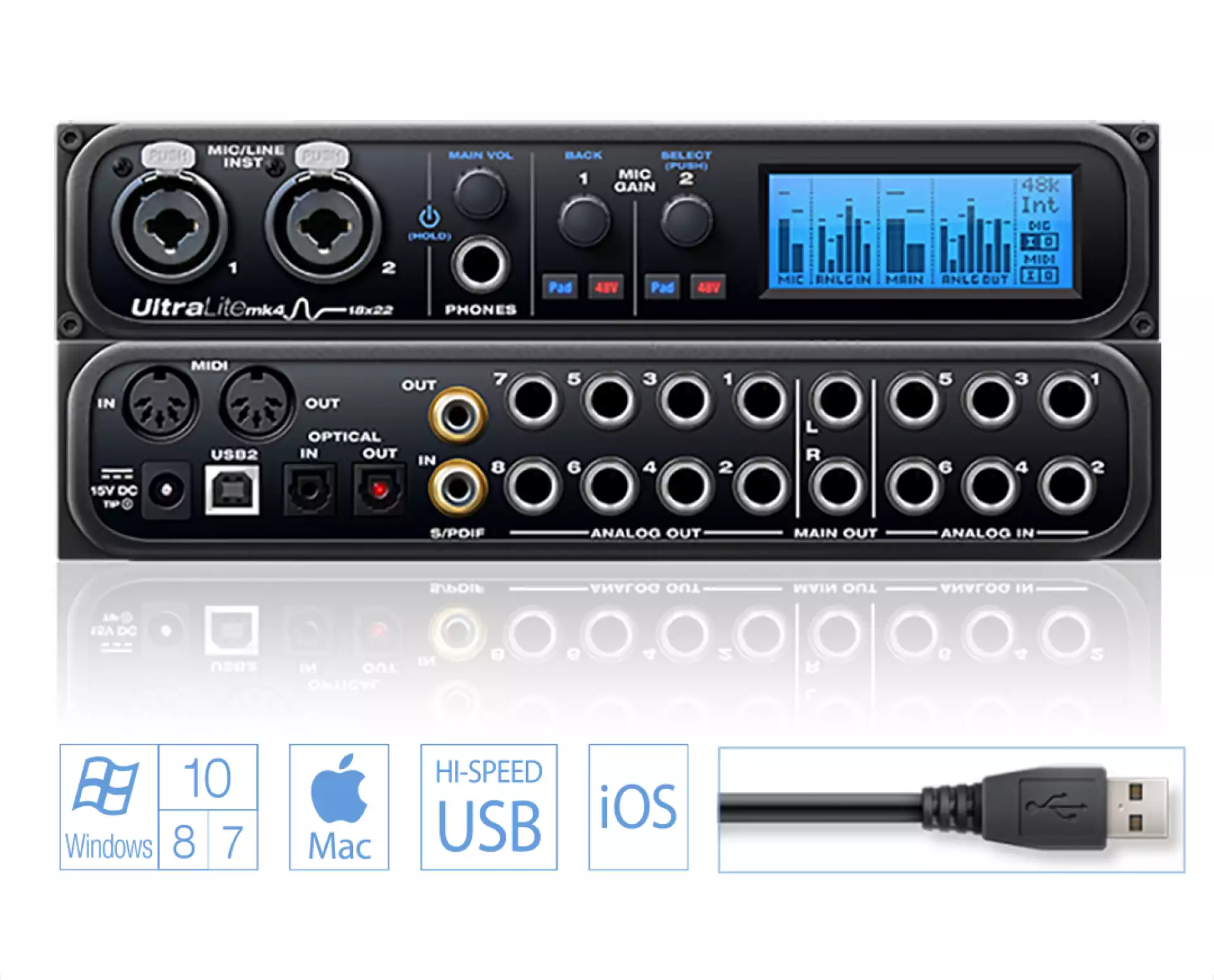

MOTU UltraLite mk4
The MOTU UltraLite-mk4 is an USB 2.0 audio interface with 18 In- and 22 Outputs. It is equipped with hardwarebased DSP-effects and an internal mixer that for example simplifies the processing of effects and routing.
Technical Specifications
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Mic/guitar inputs | 2 x combo XLR/TRS mic/guitar inputs Preamp gain: 0 to +60 dB (digitally controlled) Instrument gain: 0 to +30 dB (digitally controlled) |
| Analog inputs | 6 x 1/4" TRS line inputs (balanced/unbalanced) Max level: +24 dBu (digitally adjustable -96 to +22) |
| Analog outputs | 10 x 1/4" TRS line out (balanced, DC coupled) Max level: +20 dBu (digitally adjustable -4 to +20) 1 x 1/4" TRS stereo headphone |
| Digital I/O | 1 bank (8 ch) of ADAT optical at 1x sample rates 1 bank (4 ch) of SMUX optical at 2x sample rates Switchable to stereo TOSLink (optical S/PDIF) 1 x stereo S/PDIF on RCA (up to 96 kHz) |
| Total I/O | 18 in / 22 out (40 total) at 1x sample rates 14 in / 18 out (32 total) at 2x sample rates 8 in / 12 out (20 total) at 4x sample rates |
| Computer I/O | 1 x USB 2.0 audio class compliant USB 3.0 and iOS compatible |
| Computer I/O channels | 64 in/out at 1x (44.1 to 48 kHz) 32 in/out at 2x (88.2 to 96 kHz) 24 in/out at 4x (176.4 to 192 kHz) |
| MIDI I/O | 1 x MIDI IN 1 x MIDI OUT 16 MIDI channels to/from computer host |
| Headphone | 1 x 1/4" TRS stereo phone (assignable) |
| Phantom power | 2 x individual +48V |
| Front panel | 1 x 1/4" TRS headphone output 2 x XLR/TRS combo inputs 1 x digital rotary encoders • main/phone vol/pwr 2 x digital rotary encoders • mic/instr input gain 4 x switches • (2) Pad and (2) 48V Phantom pwr 128 x 48 pixel LCD for level meters / menu nav |
| Power | External 12-18V DC power supply 1.0A max • tip pos or neg |
| Dimensions and weight |
(width x depth x height, enclosure only) 8.6 x 7 x 1.75 inches 22 x 17.75 x 4.5 cm 2.3 lbs / 1.04 kg |
Mac System Requirements
- 1 GHz Intel-based Mac or faster
- 2 GB RAM; 4 GB or more recommended
- Mac OS X version 10.8 or later
- Available USB 2.0 or 3.0 port
- A large hard drive (at least 500 GB for recording)
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 2 GB RAM; 4 GB or more recommended
- Windows 7, 8 or 10
- Available USB 2.0 or 3.0 port
- A large hard drive (at least 500 GB for recording)
Web App Support
- Any web client platform: Mac, Windows, Linux, iOS, Android
- Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
Included Software
- MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)
- MOTU Discovery App for iOS (available from Apple App Store)
- MOTU Pro Audio Control web app (served from the hardware itself)
- MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer)
- AudioDesk 4.0 for Mac & PC (separate download)
Operating Systems
- For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
- For web app control: Mac, Windows, Linux, iOS, Android
Analog I/O Specifications
Connector type |
Dynamic range (A-weighted) |
THD+N (unweighted) |
Max level |
Trim range (in 1 dB steps) |
|
|---|---|---|---|---|---|
| Line output | 1/4" TRS, balanced, tip hot | 123 dB | -112 dB | +20 dBu | 24 dB (-4 to +20) |
| Line input | 1/4" TRS, bal/unbal, tip hot | 110 dB | -102 dB | +24 dBu | 118 dBu (-96 to +22) |
| Mic input | XLR, balanced, pin 2 hot | 112 dB | -104 dB | +24 dBu (with pad) |
56 dB |
| Phones | 1/4", TRS stereo | 112 dB | -94 dB | Max. 80 mw | 128 dB |
Compatible Mac Software
The UltraLite-mk4 ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:
- MOTU Digital Performer
- Avid Pro Tools (version 9 or later)
- Apple Logic Pro
- Apple Logic Express
- Apple Garage Band
- Apple SoundTrack Pro
- Ableton Live
- Presonus Studio One
- Propellerhead Record & Reason
- Steinberg Cubase
- Cockos Reaper
- Native Instruments Kontakt
- Waves stand-alone apps (and plug-ins, via compatible host)
Compatible Windows Software
The UltraLite-mk4 ships with standard ASIO and Wave drivers for Windows 7, 8 and 10 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including:
- MOTU Digital Performer
- Avid Pro Tools (version 9 or later)
- Ableton Live
- Cakewalk Sonar
- Cockos Reaper
- Image Line FL Studio
- Native Instruments Kontakt
- Presonus Studio One
- Propellerhead Record & Reason
- Sony Vegas Pro
- Sony Sound Forge
- Sony Acid
- Steinberg Cubase
- Waves stand-alone apps (and plug-ins, via compatible host)
UltraLite-mk4 Feature Summary
18 x 22 USB audio interface with 40 simultaneous audio channels
2 mic/guitar inputs, 6 line ins, 10 line outs, phone out, S/PDIF digital I/O and 8-channel optical I/O for 18 inputs and 22 outputs.
Superb analog quality with ultra-low latency
Renowned ESS Sabre32™ DAC technology delivers 123 dB dynamic range on analog output. New, optimized drivers deliver rock-solid performance and industry-leading low latency.
DSP mixing and effects processing
Flexible 48-input digital mixer with 7 stereo aux busses, 3 group sends, access to eight network inputs, and DSP effects, including reverb, 4-band EQ, gate, and compression.
Modeled vintage effects processing
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.
Flexible matrix routing and splitting
Send any input to any output, or multiple outputs. Includes routing to and from the computer.
Web app control
Control everything from your favorite web browser on a laptop or mobile device (table or smartphone) through a shared Wi-Fi network.
Universal connectivity
Connects to any computer with hi-speed USB 2.0 (audio class compliant, compatible with USB 3.0 and iOS). Compatible with all audio software.
Comprehensive metering
The large backlit LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.
AudioDesk
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
