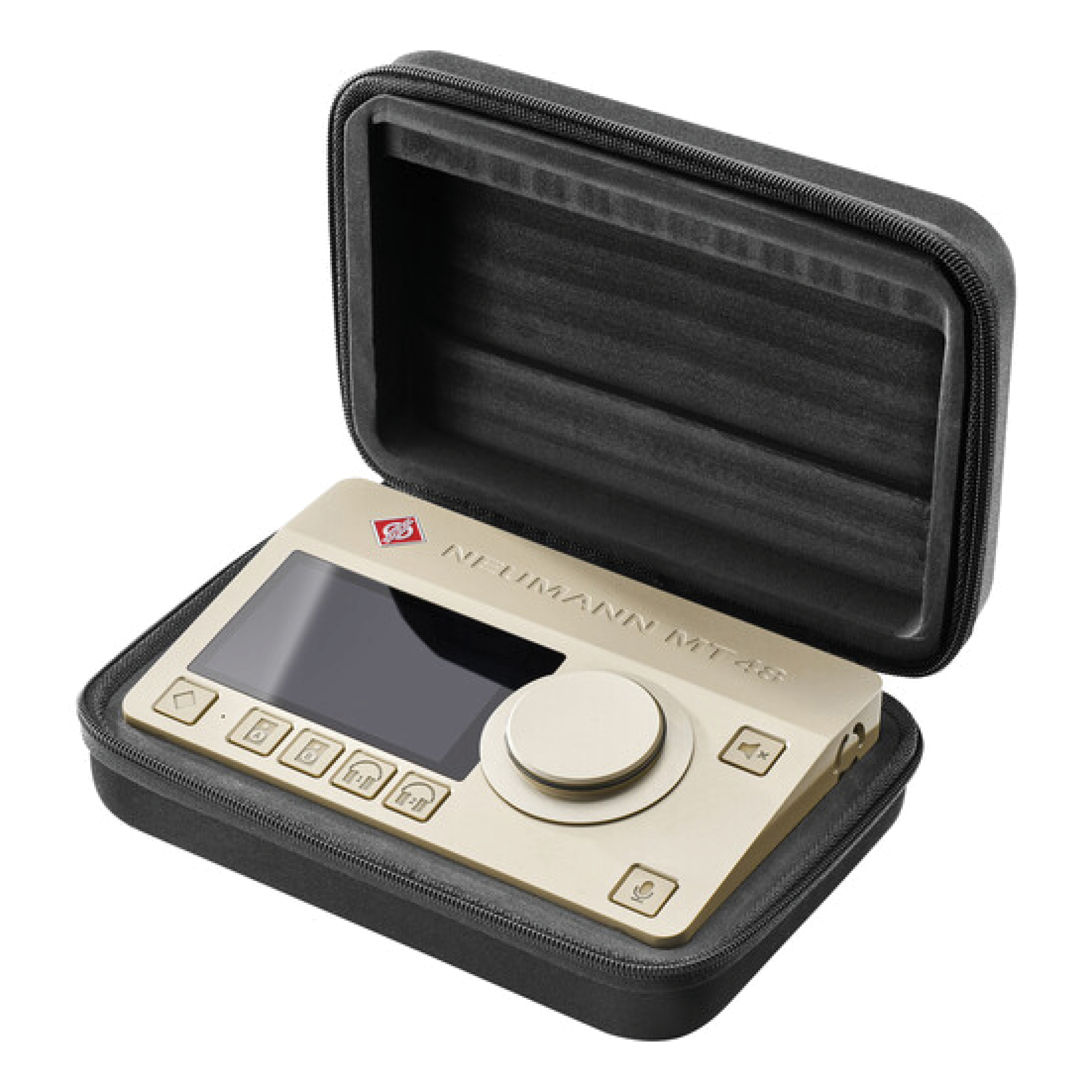

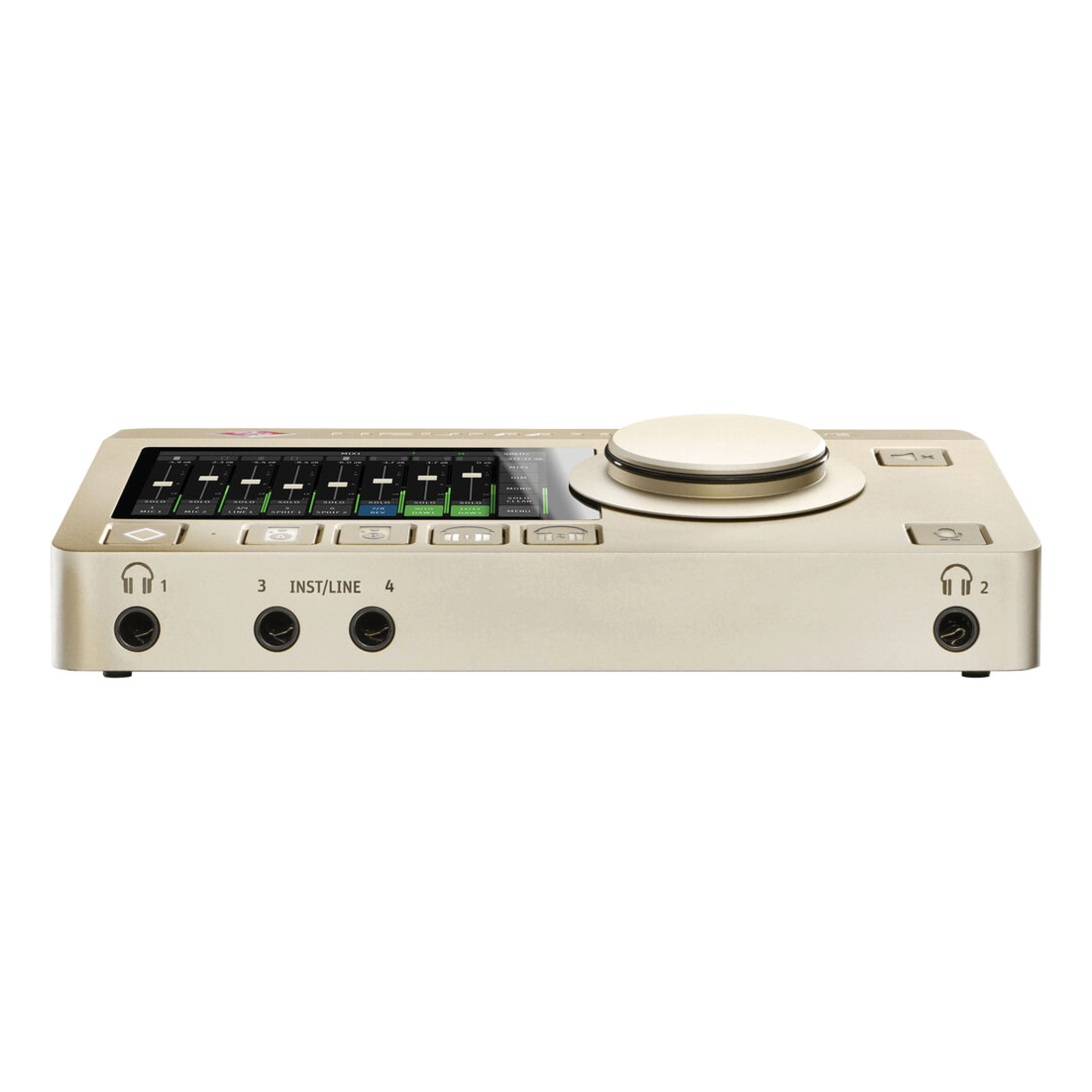

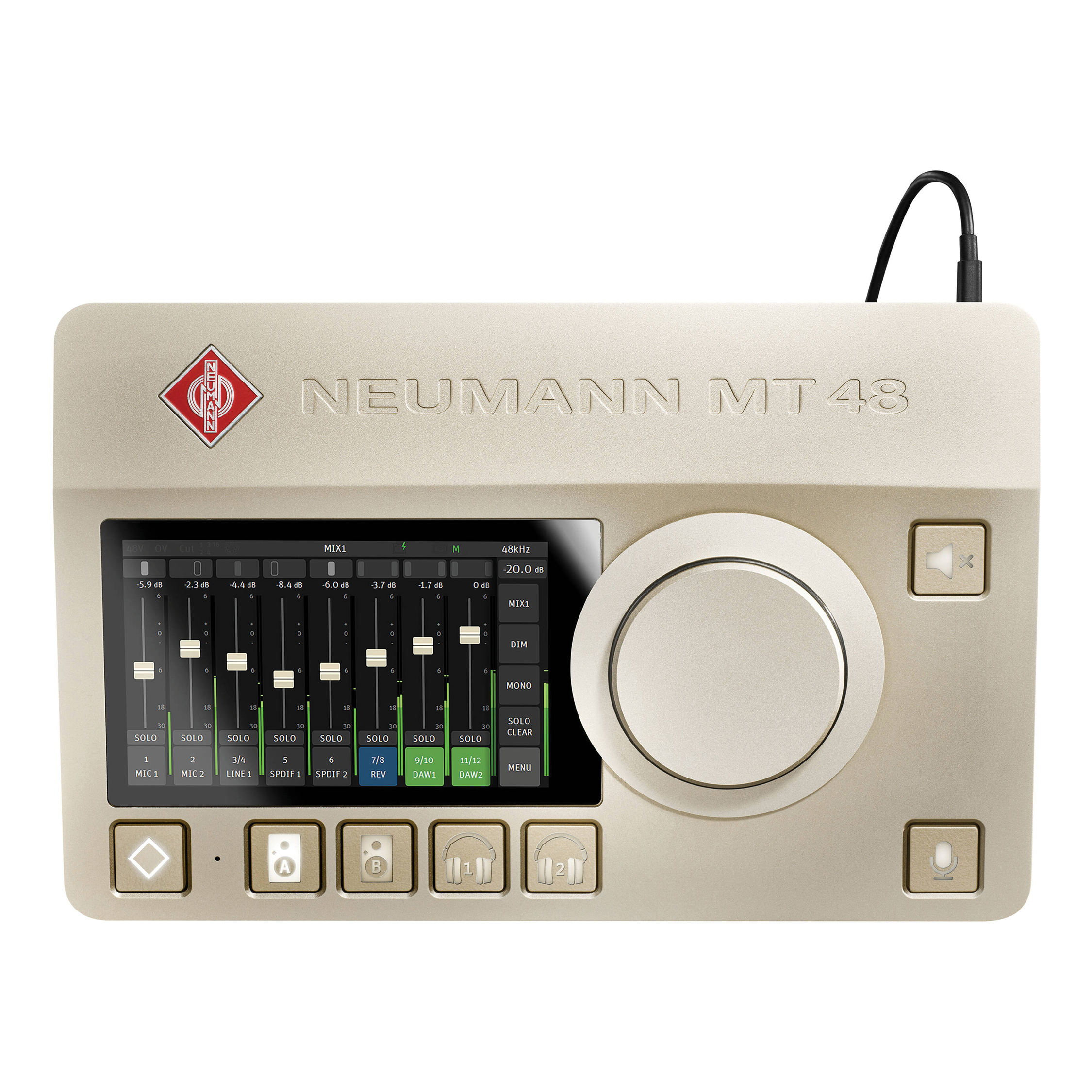

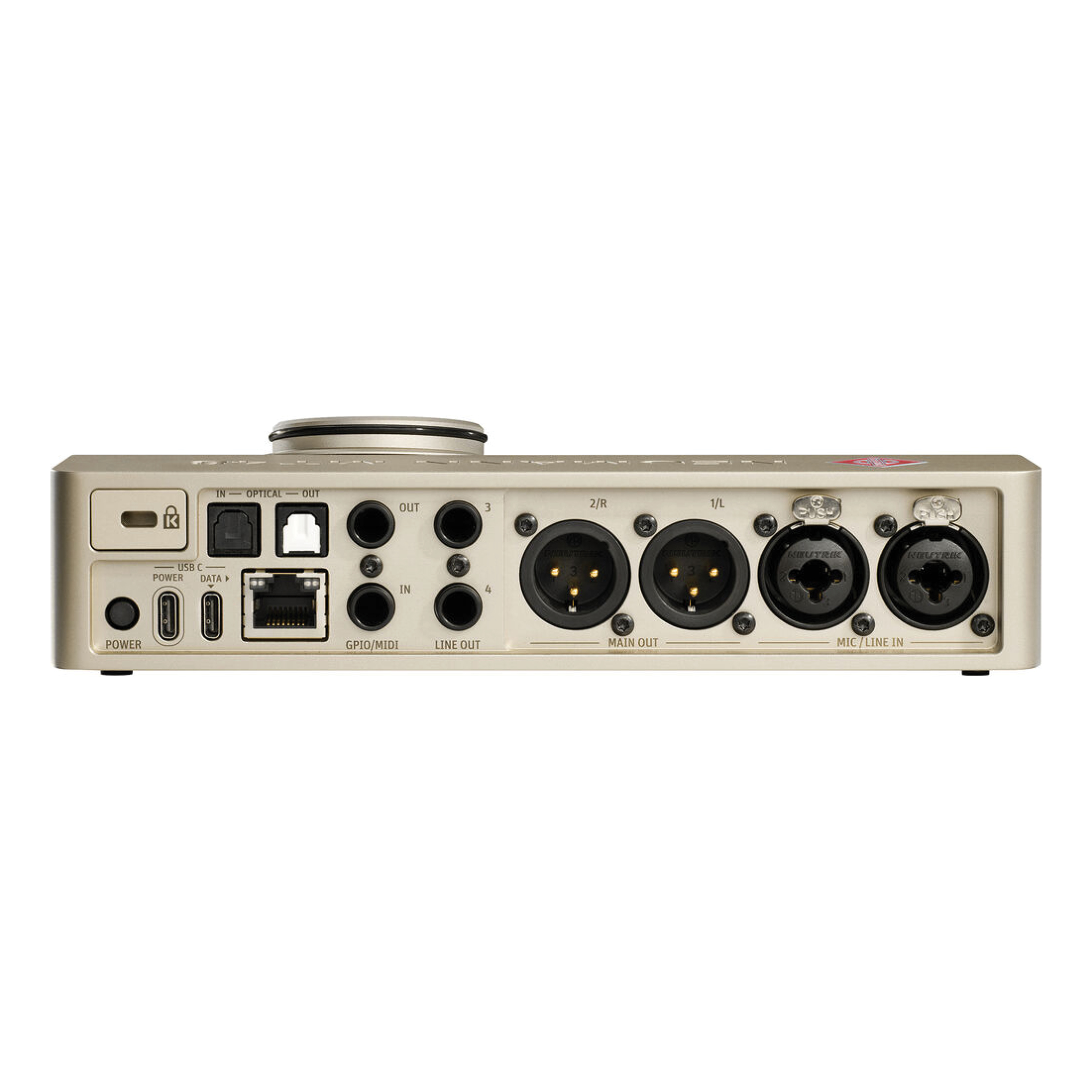

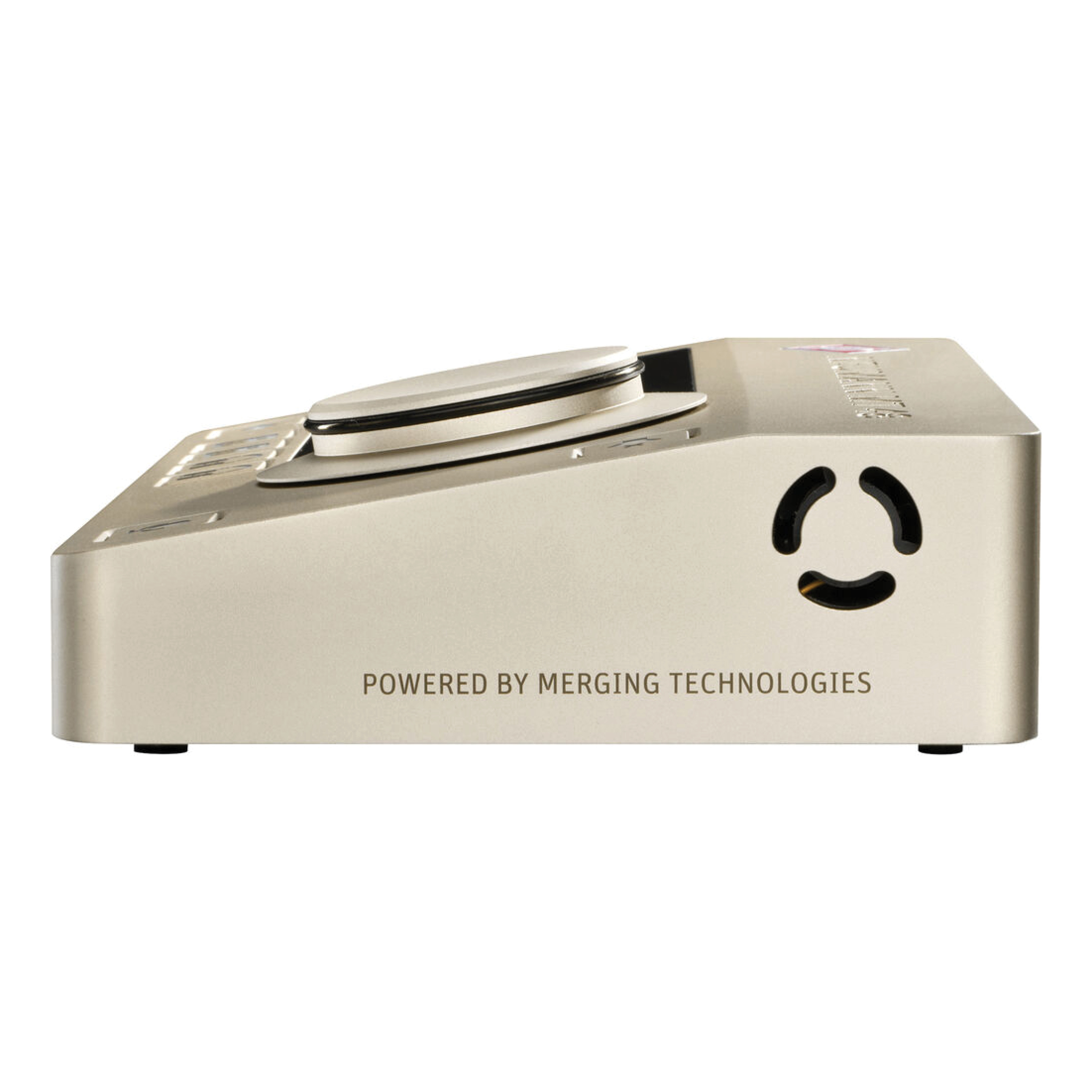

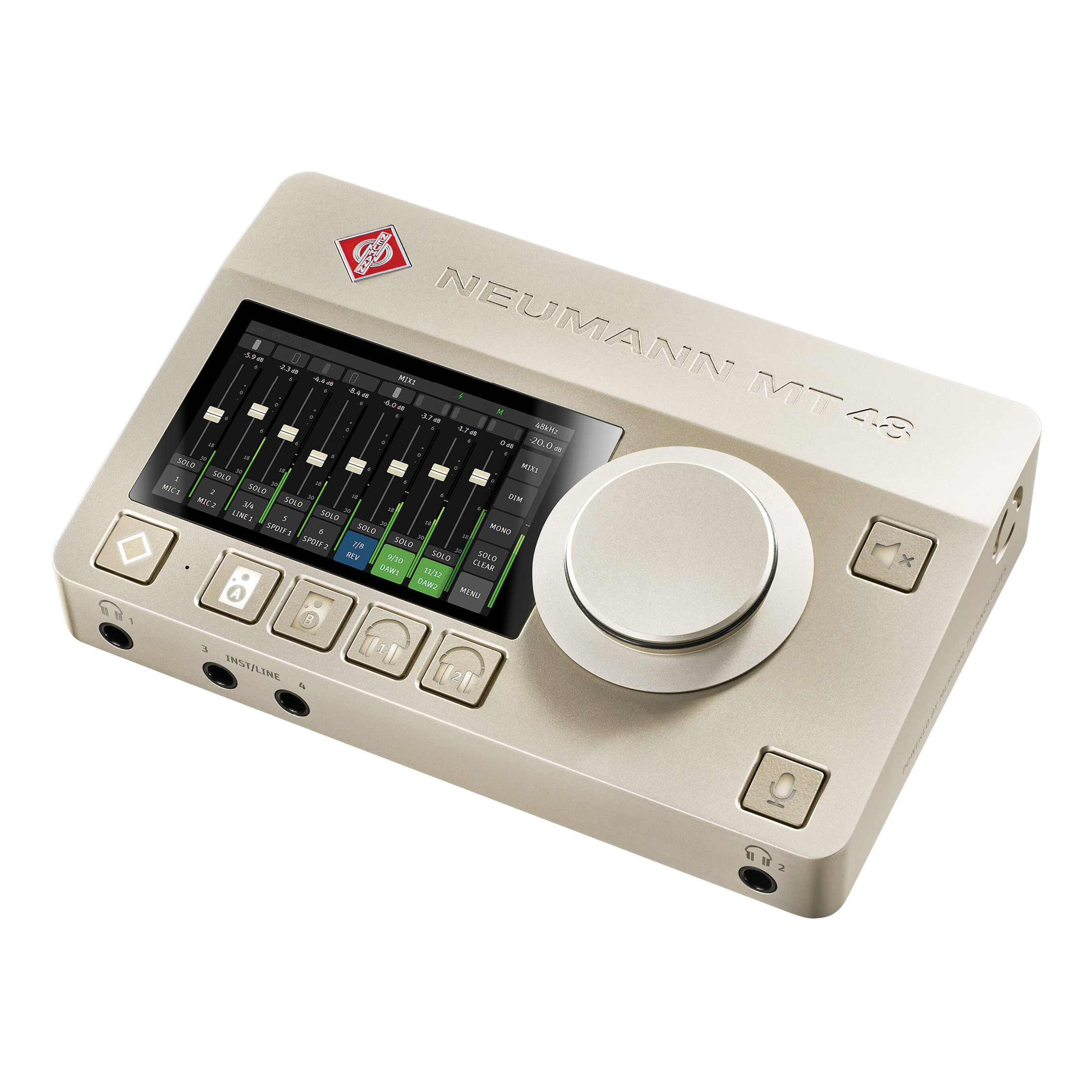

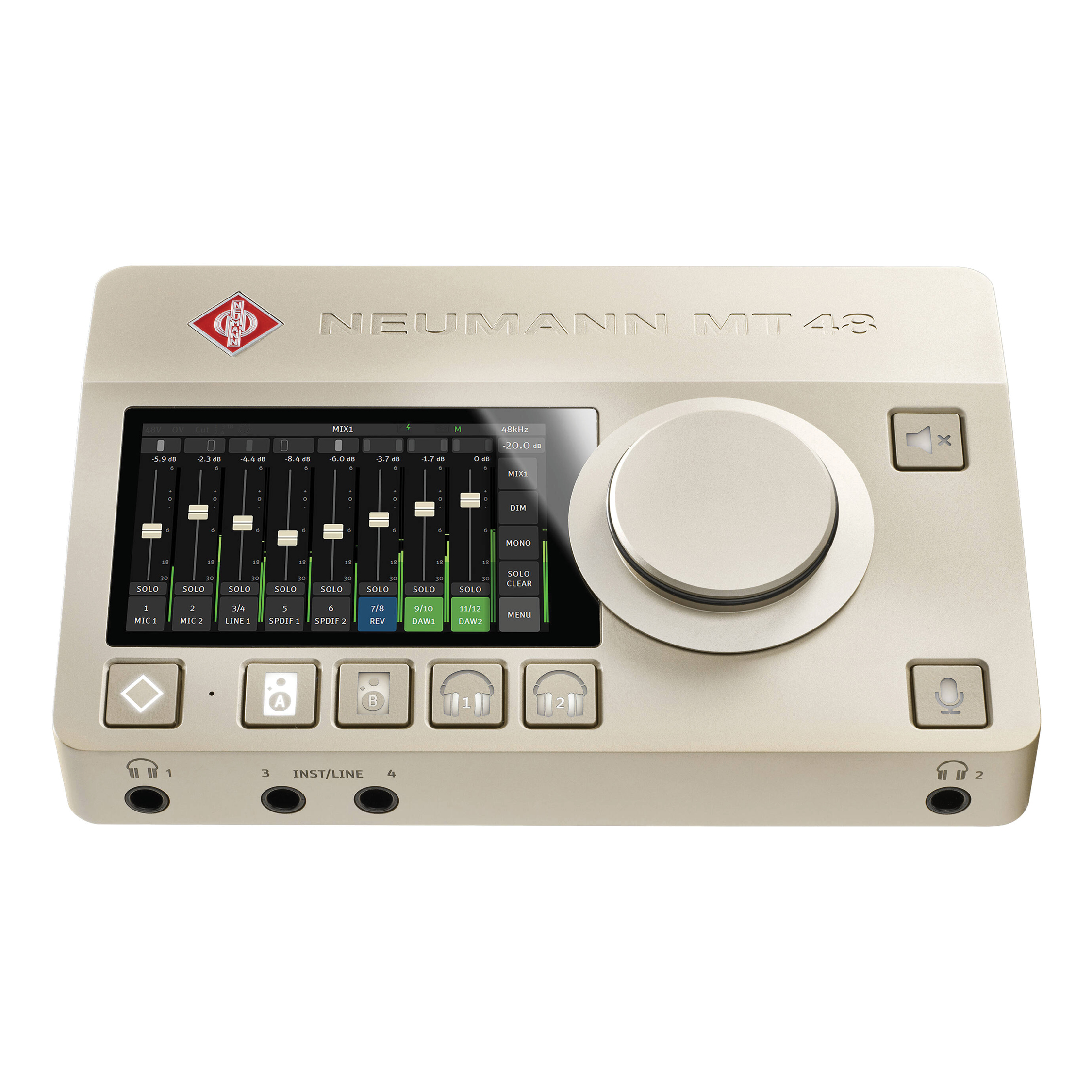

Neumann MT 48 - Zvučna kartica
THE NEW BENCHMARK
The MT 48 is an audio interface without compromise. With its huge dynamic range, superior converters, preamps and headphone amplifiers, it sets new standards in sound quality. Internal DSP power allows for monitor mixes with sophisticated EQ and dynamics processing – all intuitively controlled via touchscreen.
Mic Inputs 1-2
Dynamic Range: 136 dB-A
Equivalent Input Noise (150 Ohm): -128 dBu-A
Input Impedance: 10 kΩ
Gain Range: 12…+78 dB in 0.5 dB steps or 0.1 dB (fine)
Pad: 12 dB/24 dB
Max. Input Level: 0 /+12/+24 dBu (without Pad/with Pad)
THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -110 dB (0.0003%)
Line Inputs 1-2
Dynamic Range: 138.5 dB-A
Input Impedance: 10 kΩ
Gain Range: 0…+66 dB
Sensitivity: +24 dBu…-42 dBu
Max. Input Level: +24 dBu
THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -105 dB (0.0006%)
Instrument/Line Inputs 3 - 4
Dynamic Range: 135 dB-A
Input Impedance: 2 MΩ (balanced) / 1 MΩ (unbalanced)
Gain Range: 0…+66 dB
Sensitivity: +18 dBu … -48 dBu
Max. Input Level: +18 dBu
THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -112 dB (0.0003%)
Line/Monitor Outputs
Output Impedance: < 70 Ω
THD+N@ 1 kHz, 0 dBFS: < -110 dB (0.0003%)
Dynamic Range: 123 dB-A
Max. Output Level: +24 dBu
Headphone Outputs
Output Impedance: 0.035 Ω
Dynamic Range: 122 dB-A (high) / 117 dB (low)
Max. Output Level: +16 dBu (high) /+8 dBu (low)
AES67/Ravenna: Standard RJ-45 Gigabit-Ethernet-Anschluss
Expansion Connectivity: "ADAT/S/PDIF optical I/O, MIDI I/O via 1/4” jack, (DIN5 adapter set available from Neumann: Cat. No.700261)"
Computer Interface: USB-C, 2.0 High Speed (480 MB/s) or higher
Power Consumption: <25 W
Product Dimensions: 200 x 128 x 40mm
