Two inputs (1 mic / 1 line) / powered by USB bus power

US-1x2HRUS-1x2HR

Equipped with two inputs (1 mic / 1 line) and one USB-C port for USB bus power connection.

Natural, crisp & clear sound quality thanks to the implemented Ultra HDDA Mic Preamp with 192 kHz support

US-1x2HRUS-1x2HRUltra-HDDA

High resolution reproduction in the US-HR series has been pursued based on TASCAM's policy to recreate sound as close to the original as possible. Therefore, the in-house developed Ultra HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound.

Zero-latency direct monitoring function

Direct monitoring will diverge signals before sending them to the computer, resulting in smooth, in-time monitoring without any sound delay during both recording and performance.

Create quality content with bundled software

The US-HR models come bundled with world-renowned software that will enhance the user's production workflow. At the core of music production, Steinberg's Cubase LE/Cubasis LE 3 DAW is included, along IK Multimedia's Sample Tank SE, which comes free of charge with a massive 30 GB sound library encompassing more than 2,000 different musical instruments.

US-1x2HR

US-HR models also come with a free 3-month subscription to Auto-Tune Unlimited, a comprehensive suite of industry standard pitch correction and vocal effects.

Interface for podcasts and live streaming

The US-1x2HR can be used with computers or smartphones to easily create podcasts or live streams. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live streams. US-1x2HR also supports OBS, which is popular and used worldwide.

Compatible with iPad and other iOS devices

The US-1x2HR can be used as an interface for iPad and other iOS devices.

New audio interface engine

Capitalizing on our experience being one of the pioneers in manufacturing USB audio interfaces, we achieved further stability in our native driver. The audio buffer size can be set starting from 4 samples (Windows only) to give the best performance to every different environment; maximizing the capability of the computer in use while creating a low-latency environment.

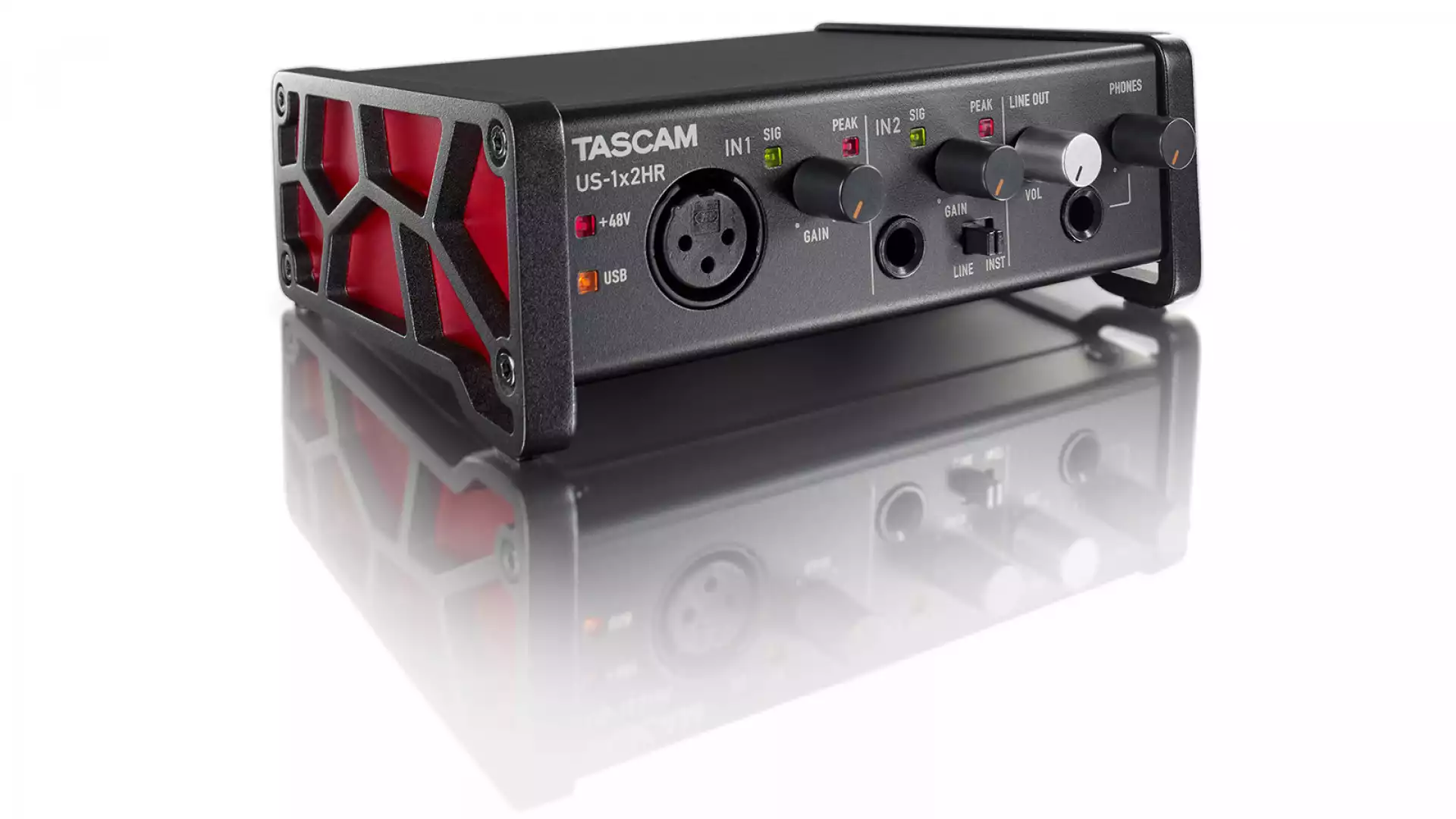

Robust metal casing

The US-HR models share a solid and practical design intended to withstand long hours of hard use. Its robust metal jacket not only improves its durability but, combined with dye-cast aluminum side panels, provides a sleek, eye-catching design. In addition, all models have just the right weight, so they won't move when cables are connected or disconnected.

Features at a glance

2-in/2-out USB audio interface

Supports up to 24-bit/192 kHz audio formats

Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)

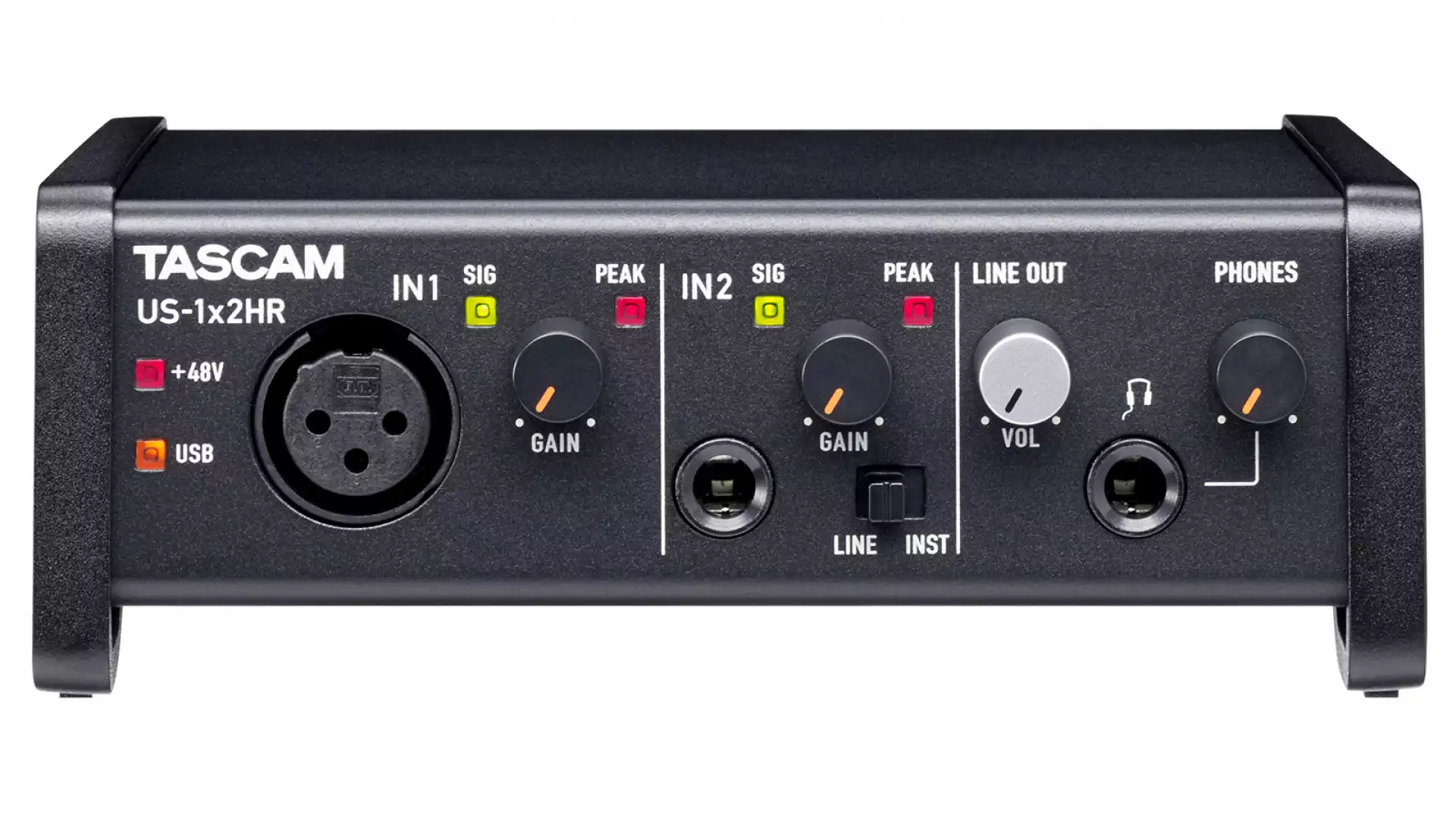

1 XLR input equipped with Ultra HDDA mic preamp and +48V phantom power

1 TRS line/inst. input

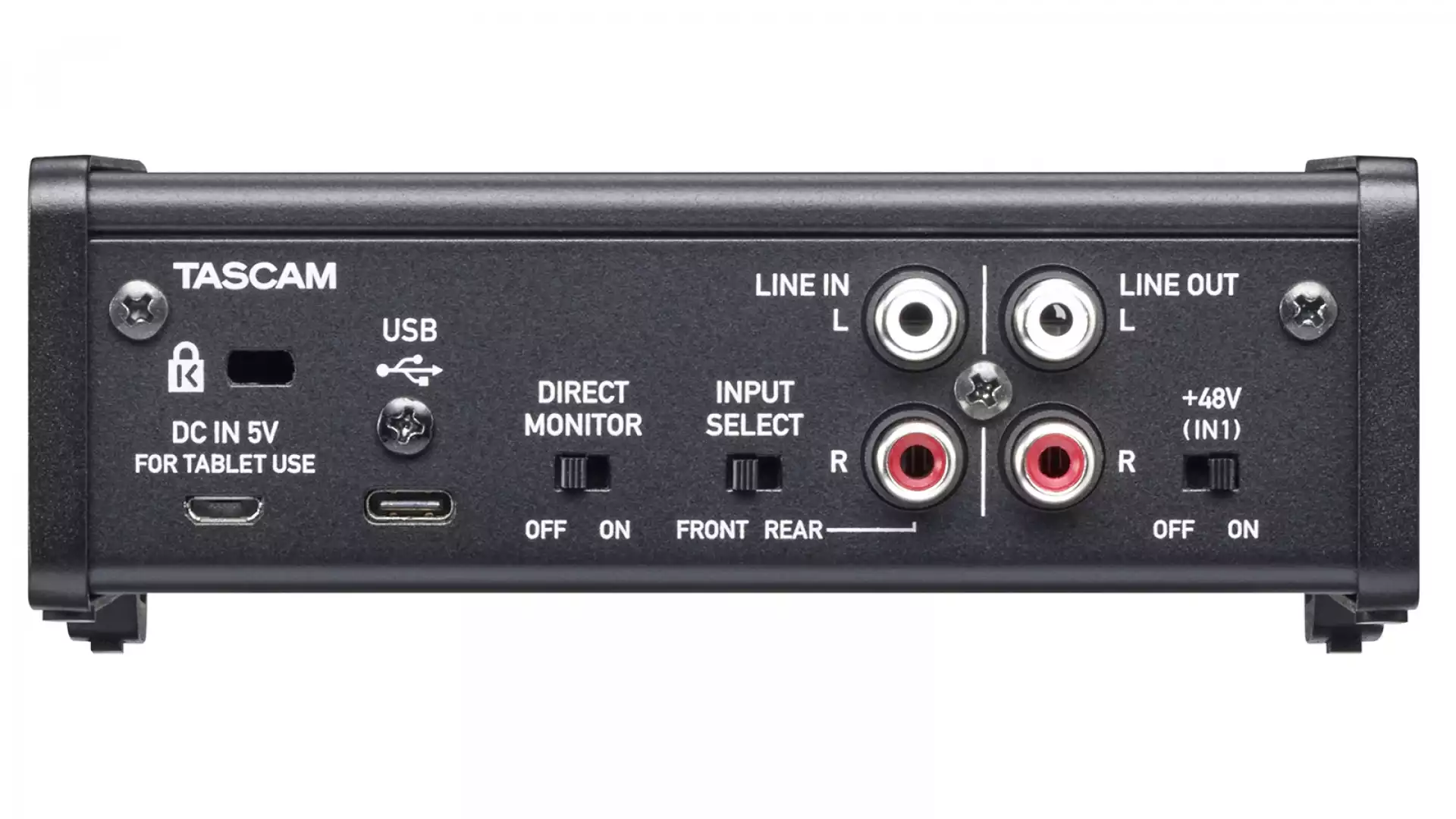

RCA line L/R inputs

RCA line L/R outputs

1 headphone output

USB Type-C connection (USB Type-A to Type-C cable included)

Powered by USB bus power

Zero-latency direct monitoring

Compatible with iPad and other iOS devices

Extensive line-up of bundled software

Steinberg Cubase LE, Cubasis LE 3

IK Multimedia Sample Tank 4 SE

Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)

Compatible with mainstream DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand, Logic Pro)

Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)

OBS support

Included items

US-1x2HR

USB cable (Type-A to Type-C)

DAW software installation guide

DAW plug-in software installation guide set

Owner's manual（warranty card included)

Spec description
