Furnished with 24-bit / 192 kHz converters performing well beyond the interface's price point, the Apollo Twin USB gives musicians, producers, songwriters, and audio engineers the appreciable value of clear, high-resolution recording and mixing with low distortion (-110 dB) and great dynamic range (118 dB).

The interface features two XLR-1/4" mic/line combo inputs and a 1/4" Hi-Z input, all with Unison integration for precise UAD emulations of classic analog preamps—impart vintage character of your choosing on microphone and instrument recordings while bypassing the unpredictable nature of old equipment.

Thanks to the switchable low-cut filter, pad, polarity inversion, 48V phantom power, and stereo linking on each analog input, you can efficiently optimize your incoming signals with straightforward buttons on the Apollo Twin USB's face. In addition to the two primary analog inputs, you can record up to eight more channels by connecting external preamps with ADAT or S/PDIF optical outputs to the TOSLINK optical input port on the Apollo Twin USB.

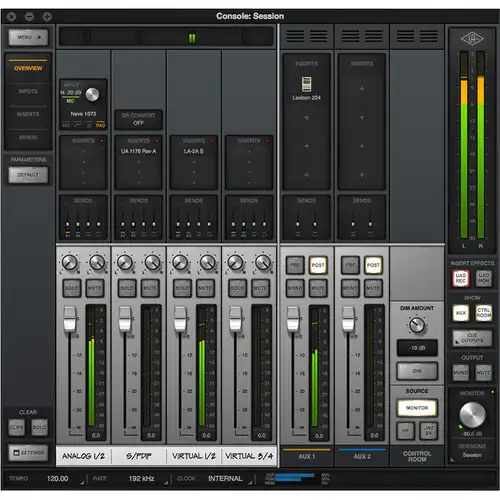

The built-in DUO Core processing allows you to monitor and record audio using classic analog emulations with near-zero latency and no burden on your computer's CPU. The plug-in bundle included with the Heritage Edition empowers you with 25 top-notch plug-ins ranging from vintage compressor and EQ collections to virtual guitar/bass amps and time-based processors. The included Console application provides control and recall of all interface and UAD plug-in settings including channel-strip presets, drag-and-drop functionality, and dynamically resizable windows.

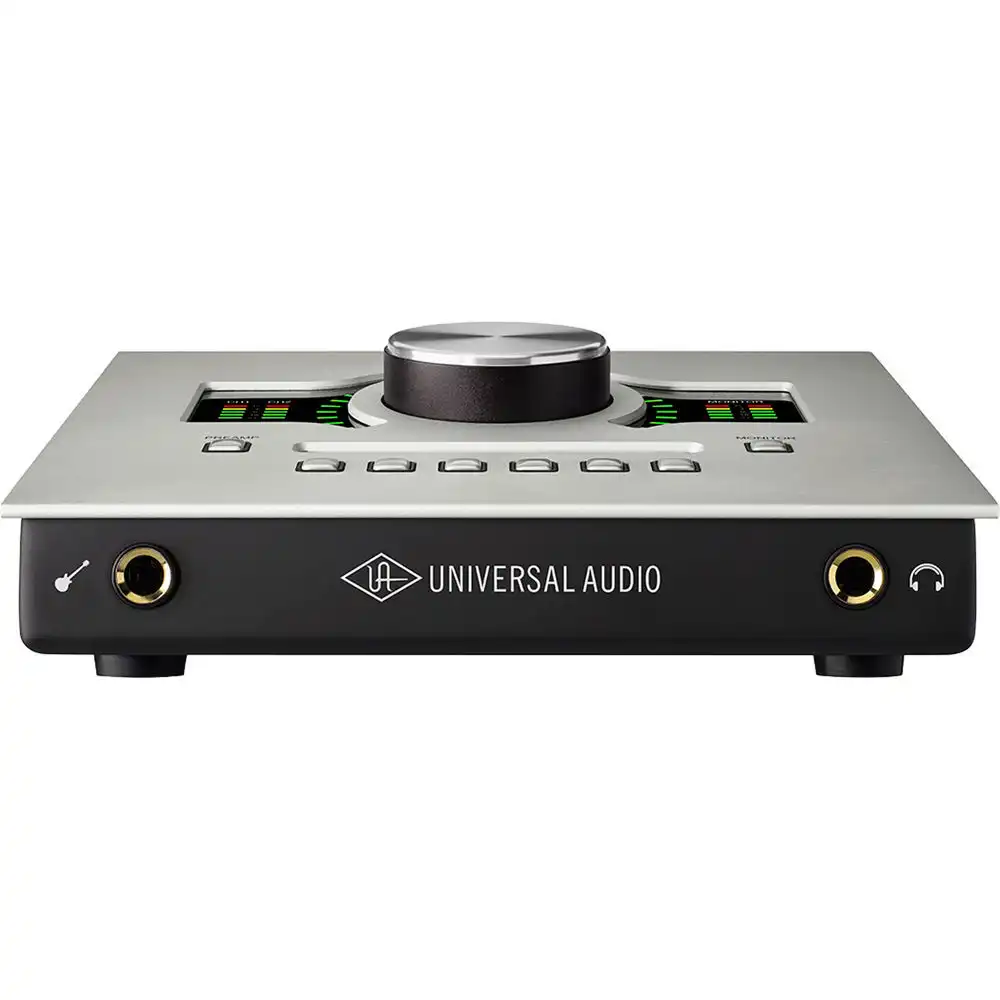

Equipped with a dedicated stereo monitor feed, a front-panel headphone output, and two additional 1/4" line outputs, the Apollo Twin USB can serve as the monitor controller for your studio's speakers and headphones. Plus, its clearly visible input and output meters help you keep track of your levels.

At any point, you can increase the power of the Apollo Twin USB through integration of qualified Universal Audio hardware. Add UAD-2 PCIe DSP accelerator cards, UAD-2 Satellite Firewire, and UAD-2 Satellite USB to expand DSP resources without abandoning the Apollo Twin USB.

Heritage Edition
The Heritage Edition features the same Apollo Twin USB interface found in the standard edition, but with more plug-ins. The standard Apollo Twin USB includes the Realtime Analog Classics bundle (14 plug-ins), and the Heritage Edition adds 11 more plug-ins for a total of 25 revered UA-powered plug-ins.
The Power of Apollo
Track, overdub, and mix with high-resolution AD/DA conversion and DSP-powered plug-ins
DUO Core UAD processing for tracking through models of vintage compressors, EQs, tape machines, mic preamps, and guitar amps with near-zero latency and no burden on your computer’s CPU
Unison technology nails the tone of sought-after tube and solid-state mic pres including their input impedance, gain-stage sweet spots, and the component-level circuit behaviors of the original hardware
USB 3.0 connectivity for Windows computers (USB 3.0 SuperSpeed cable included)
Convenient desktop form factor with reliable AC powering (external power supply included)
Free, industry-leading phone/online technical support from knowledgeable audio engineers
I/O for the Studio
10x6 audio interface with two Unison-enabled microphone preamps (via XLR-1/4" combo mic/line inputs), providing emulations of classic analog preamps with near-zero latency
One front-panel, Unison-enabled 1/4" Hi-Z input for direct connection of a guitar, bass, or keyboard
Stereo 1/4" monitor output and one 1/4" headphone output, each with dedicated level control
Two additional 1/4" line-level outputs, may be used for alternate monitor outputs
Add up to eight extra input channels via one TOSLINK optical ADAT port (may alternatively be used for stereo S/PDIF)
Expandable DSP
Use alongside UAD-2 PCIe DSP Accelerator cards, UAD-2 Satellite FireWire, and UAD-2 Satellite USB for truly scalable mixing power
25 Powered Plug-Ins
Includes Realtime Analog Classics plug-in bundle plus 11 additional plug-ins to complete the compressor, EQ, and preamp collections and provide another reverb (plug-ins support VST, RTAS, Audio Units, and AAX 64-bit for compatibility with all major DAWs):

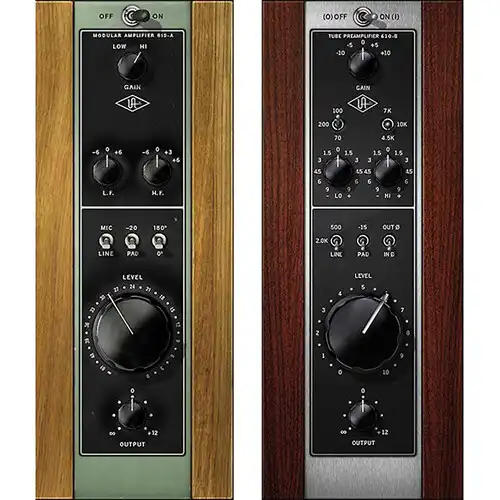

UA 610-A Tube Preamp and EQ (Vintage)
UA 610-B Tube Preamp and EQ (Modern)
Marshall Plexi Classic Guitar Amp
Ampeg SVT-VR Classic Bass Amp
UA 1176LN Limiting Amplifier (Legacy)
UA 1176SE Limiting Amplifier (Legacy)

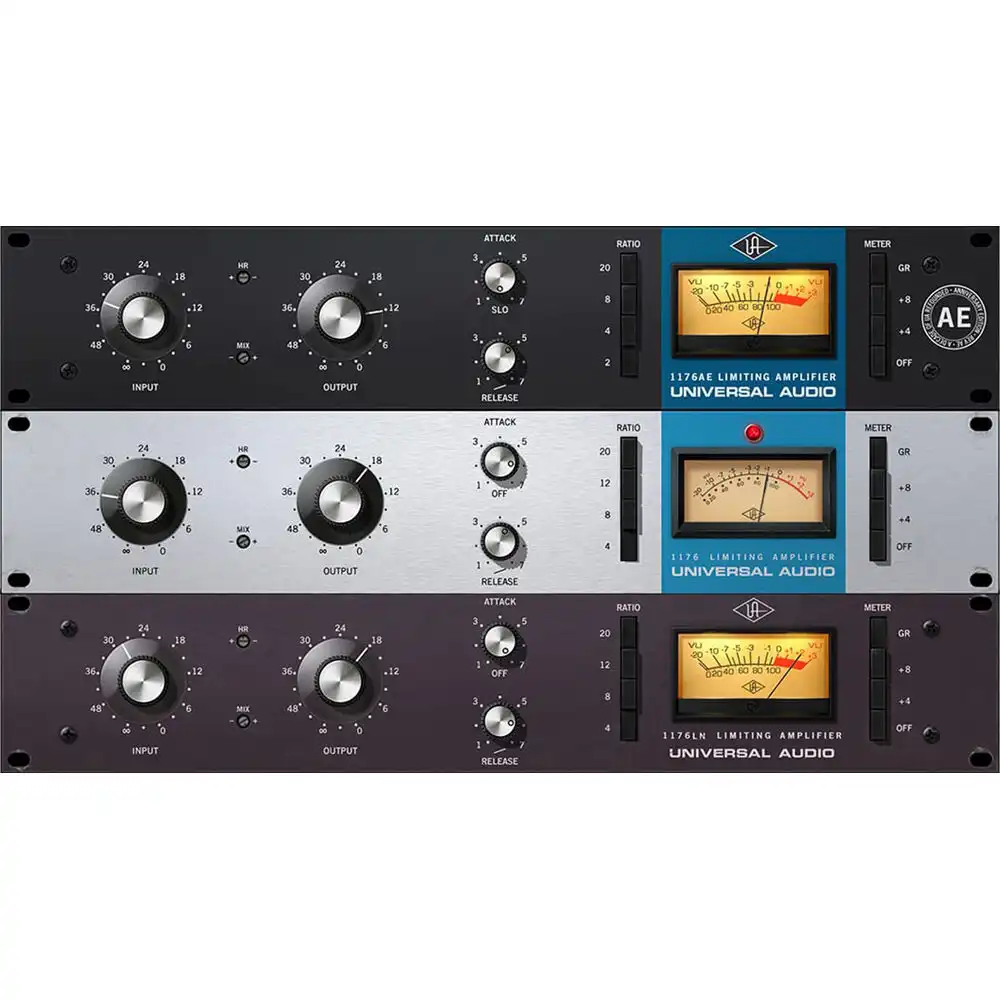

UA 1176 Classic Limiter Collection (1176LN Rev E, 1176 Rev A, and 1176AE 40th Anniversary Edition)
Pultec EQP-1A EQ (Legacy)
Pultec MEQ-5 EQ (Legacy)

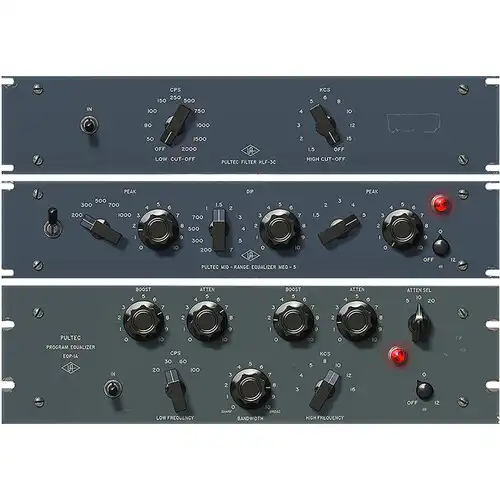

Pultec Passive EQ Collection (EQP-1A, MEQ-5, and HLF-3C)
Teletronix LA-2A Leveling Amplifier (Legacy)

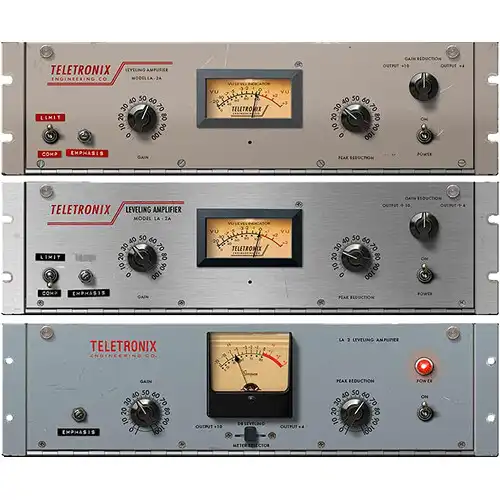

Teletronix LA-2A Classic Leveler Collection (LA-2A Silver, LA-2A Gray, and LA-2)
Raw Distortion
Precision Channel Strip (Precision Mix Rack Collection)
Precision Reflection Engine (Precision Mix Rack Collection)
Precision Delay Mod (Precision Mix Rack Collection)
Precision Delay Mod L (Precision Mix Rack Collection)
Pure Plate Reverb
RealVerb Pro Custom Room Modeler

Universal Audio Twin USB Specs
Form Factor Desktop
Display 5 x Multi-Segment LED Meter
Channels of I/O Analog:
2 Inputs / 6 Outputs at 192 kHz
Digital:
8 Inputs / 0 Outputs at 48 kHz
4 Inputs / 0 Outputs at 96 kHz
2 Inputs / 0 Outputs at 192 kHz
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Preamps 2 Preamps
Input Level Adjustment 1 x Knob
Expansion Slots None
Signal Processing
Pad -20 dB (Switchable per Channel)
Gain/Trim Range Mic/Line/Hi-Z Inputs:
+10 to +65 dB
High-Pass Filter 75 Hz
Solo/Mute None

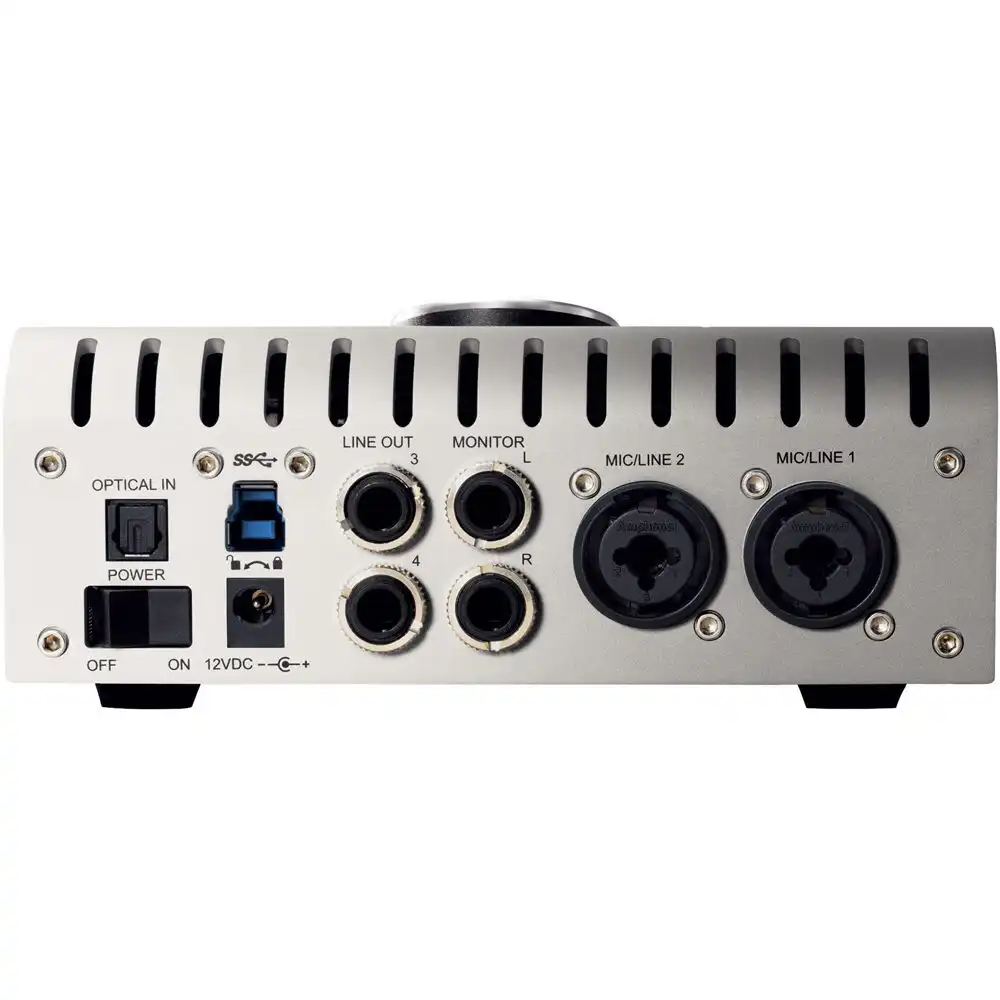

Connectivity
Analog Audio I/O 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
1 x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
2 x 1/4" TRS Balanced/Unbalanced Monitor Output
2 x 1/4" TRS Balanced/Unbalanced Line Output
1 x 1/4" TRS Unbalanced Headphone Output
Phantom Power 48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O 1 x TOSLINK Optical ADAT / S/PDIF Input (S/MUX4 Support)
Host Connection / USB 1 x USB-B
Host Connection Protocol USB 3.0 / 3.1/3.2 Gen 1
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Performance
Frequency Response Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.1 dB
Line, Headphone, Monitor Outputs:
20 Hz to 20 kHz ±0.1 dB
Maximum Input Level Mic Inputs:
+26 dBu (Min Gain, with Pad)
Line Inputs:
+20.2 dBu
Hi-Z Inputs:
+12 dBu
Maximum Output Level Line/Monitor Outputs:
+20.2 dBu
Headphone Output Power 80 mW into 600 Ohms (Max)
Impedance Mic Inputs:
5.4 Kilohms
Line Inputs:
10 Kilohms
Hi-Z Inputs:
1 Megohm
Line/Monitor Outputs:
600 Ohms
Dynamic Range Mic Inputs:
118 dBA
Line Inputs:
117.5 dBA
Hi-Z Inputs:
117 dBA
Monitor Outputs:
115 dBA
Line Outputs:
118 dBA
Headphone Outputs:
113 dBA
SNR Mic Inputs:
118 dBA
Line Inputs:
117.5 dBA
Hi-Z Inputs:
117 dBA
Monitor Outputs:
115 dBA
Line Outputs:
118 dBA
Headphone Outputs:
113 dBA
THD+N Mic Inputs:
-110 dBFS
Line Inputs:
-108 dBFS
Hi-Z Inputs:
-101 dBFS
Monitor Outputs:
-105 dBFS
Line Outputs:
-107 dBFS
Headphone Outputs:
-101 dBFS
EIN Mic Inputs:
-127 dBu
CMRR Mic Inputs:
> 70 dB
Digital Audio
dBFS Reference Level Line Inputs:
+4 dBu = 0 dBFS
Monitor Outputs:
+14 / +20 dBu = 0 dBFS (Selectable)
Sample Rates Up to 192 kHz
Sample Rate Conversion None
Bit Depths 24-Bit (AD/DA Conversion)
Latency 1.1 ms at 96 kHz (Input to Output)
Sync Sources ADAT, Internal, S/PDIF
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility Windows 7
Windows 8.1
Windows 10 (64-Bit Only)
*As of June, 2022: Check with manufacturer for the most up-to-date compatibility
Included Software None
Supported Drivers/API & Plug-Ins Proprietary
Processor Requirement Intel Core i3
Storage Requirements 6 GB
Mobile Device Compatibility None
Required Hardware Available USB 3.0 / 3.1/3.2 Gen 1 Port
USB Cable (Included)
Internet Connection Required for Registration and Software/Driver Download
Power
Power Requirements AC/DC Power Adapter (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC/DC Power Adapter 12 VDC, Center-Positive (Included)
Power Consumption 12 W (Maximum)
Physical
Anti-Theft Features Kensington Security Slot
Operating Humidity 20 to 80%
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Temperature -40 to 176°F / -40 to 80°C
Dimensions 6.31 x 5.86 x 2.6" / 16.03 x 14.88 x 6.6 cm (Chassis Only)
6.31 x 6.2 x 2.6" / 16.03 x 15.7 x 6.6 cm (Including Controls and Protrusions)
Weight 2.4 lb / 1.1 kg
Packaging Info
Package Weight 4.11 lb
Box Dimensions (LxWxH) 7.9 x 7.8 x 5.5"
